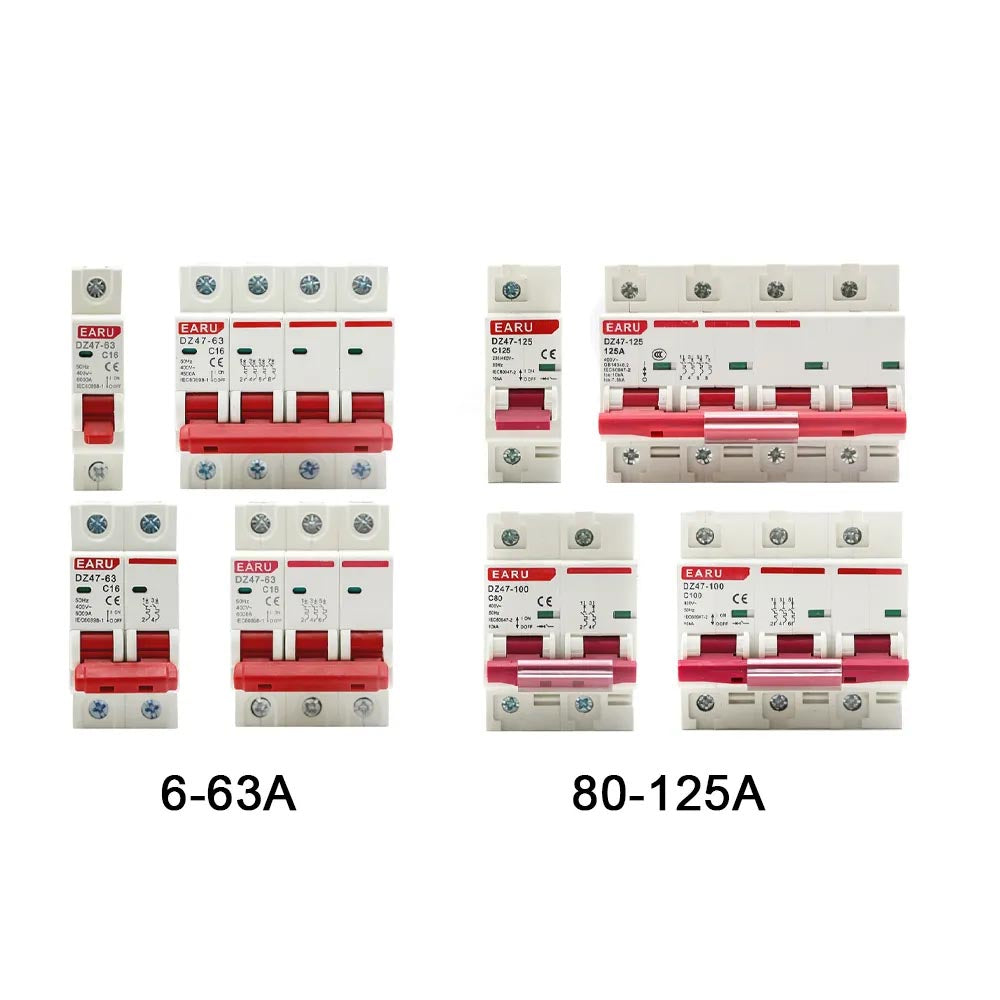

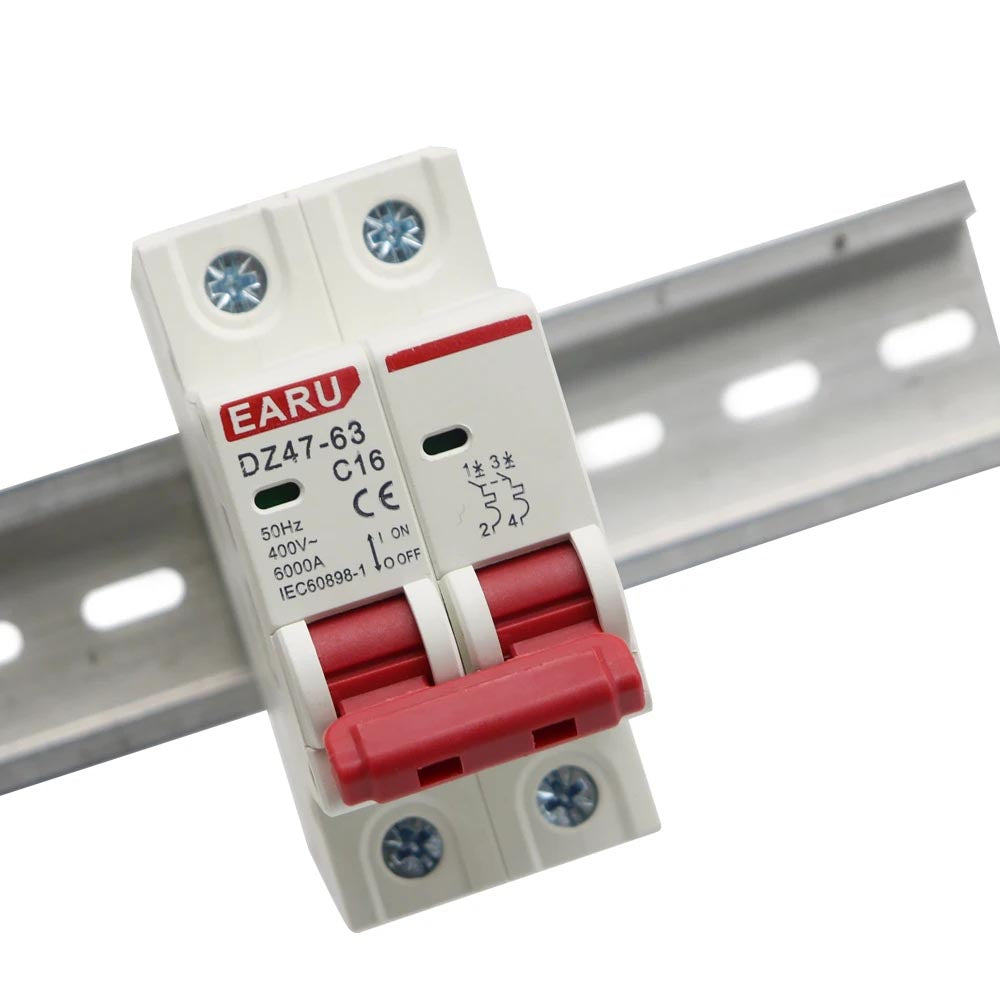

DZ47 400V 2P,4P 10A-63A Compact C-Type Circuit Breaker/MCB Safety Overcurrent Circuit Breaker/35mm Din Rail Mount Breaking Capacity 6KA

Type: Circuit breaker

Model Number: DZ47-63

Certification: CE

The C45N series circuit breaker is designed for use in lighting and motor distribution systems to safeguard against overloads and short circuits. This product features a modern structure that is lightweight yet reliable, delivering excellent performance. With a high breaking capacity and quick tripping capabilities, it is easy to install using a guide and is made from fire-retardant and shockproof plastics. The circuit breaker is suitable for long-term use and is primarily utilized in 50Hz/60Hz AC circuits, including single-pole 240V or two, three, and four-pole 415V circuits. It protects against overloads and short circuits and is suitable for occasional switching of electrical equipment and lighting circuits in normal conditions.

GB 10963, IEC898, BS3871.1.

Specification:

No. Of pole: 2P, 4P
Rated voltage: 240V/415V AC
Rated current(C):   10, 16, 20, 25, 32, 40, 50, 63A
Breaking capacity: 6kA
Electrical life: no less than 6000 times
Mechanical life: (0-c)no less than 20000 times
Tropical trial Treatment: 2(RH 95% at 5'C)

As per Instantaneous release type: C type (5ln~10ln)
