1PCS PW Y-type Pneumatic fitting Reducing Tee Straight Through 4 to 12mm plastic hose quick couplings

Y-type pneumatic fittings are used in pneumatic systems where it's necessary to divide airflow into two separate paths, such as controlling multiple actuators or directing air to different components. These fittings come in various sizes to accommodate different hose or tubing diameters commonly used in pneumatic systems.

Specification:
Type: Hose to Hose
Design: Y Shape, 3 Ways
Operating Pressure: 0~10.2kgf/cm2 (0~1.0Mpa)
Normal operating pressure: 0~1.0Mpa
Ambient and fluid temperature: 0~60°C
Negative Pressure: -750mmhg (10 Torr)
Fit For Tube Material: PU / Nylon, Polyurethane
Quick Fitting Material: Plastic
Quick Fitting Color: Black, Blue
Package Content:1 PC Quick Fitting
Air Connector Working Medium: Air, Vacuum
Air Connector Max. operating pressure: 1.32Mpa
Pneumatic Connector Material: Plastic,brass , NBR
Pneumatic Tube Fittings Applicable tube: PU hose,Nylon pipe

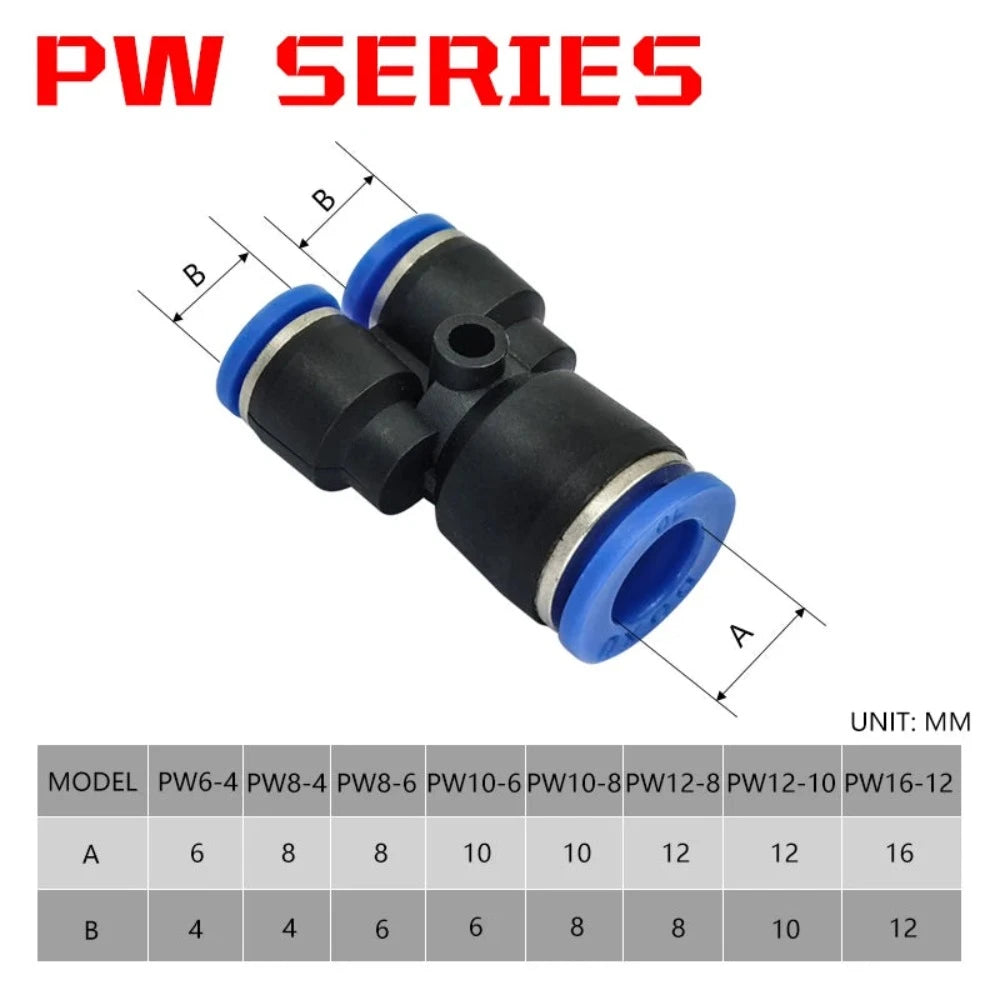

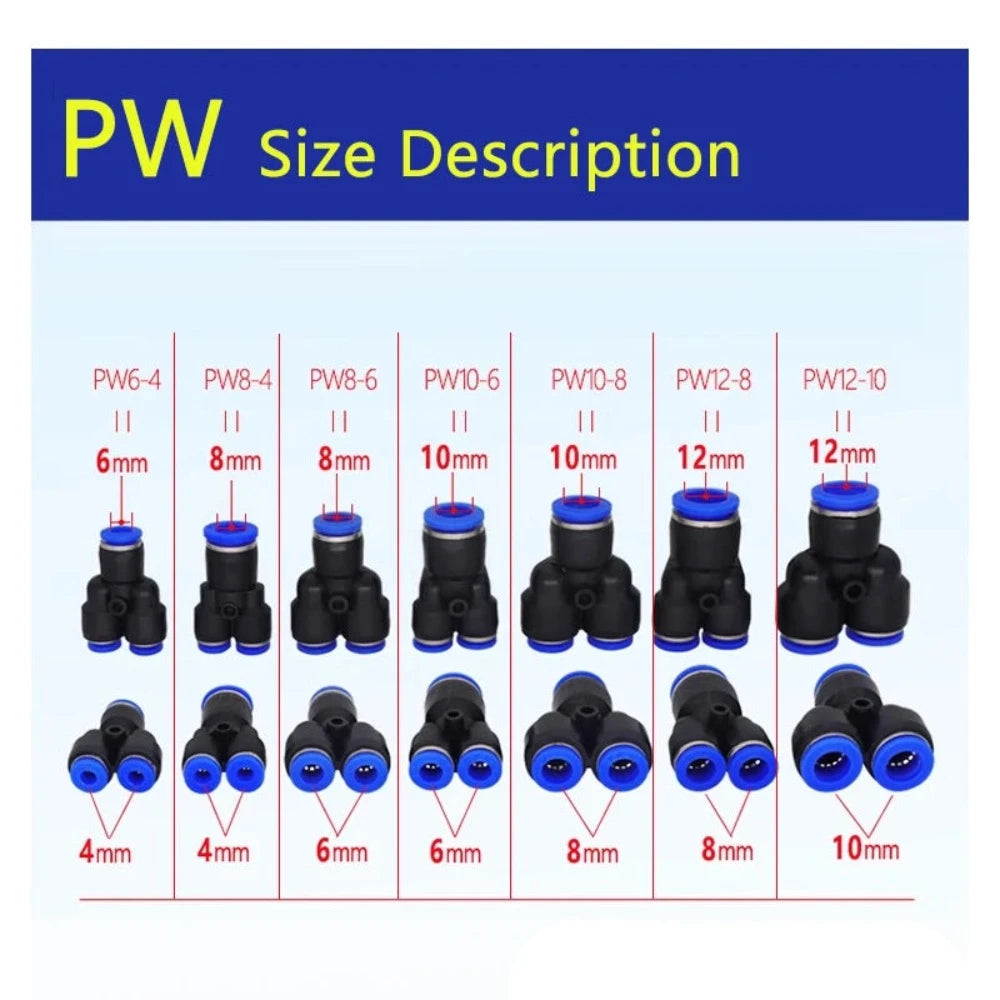

Pneumatic Quick Connector Pipe Size: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Pneumatic Tube Fittings Colour: Blue
Model Number: PW
Type: Fittings
Certification: NONE
(Only send the model selected by the buyer.)
