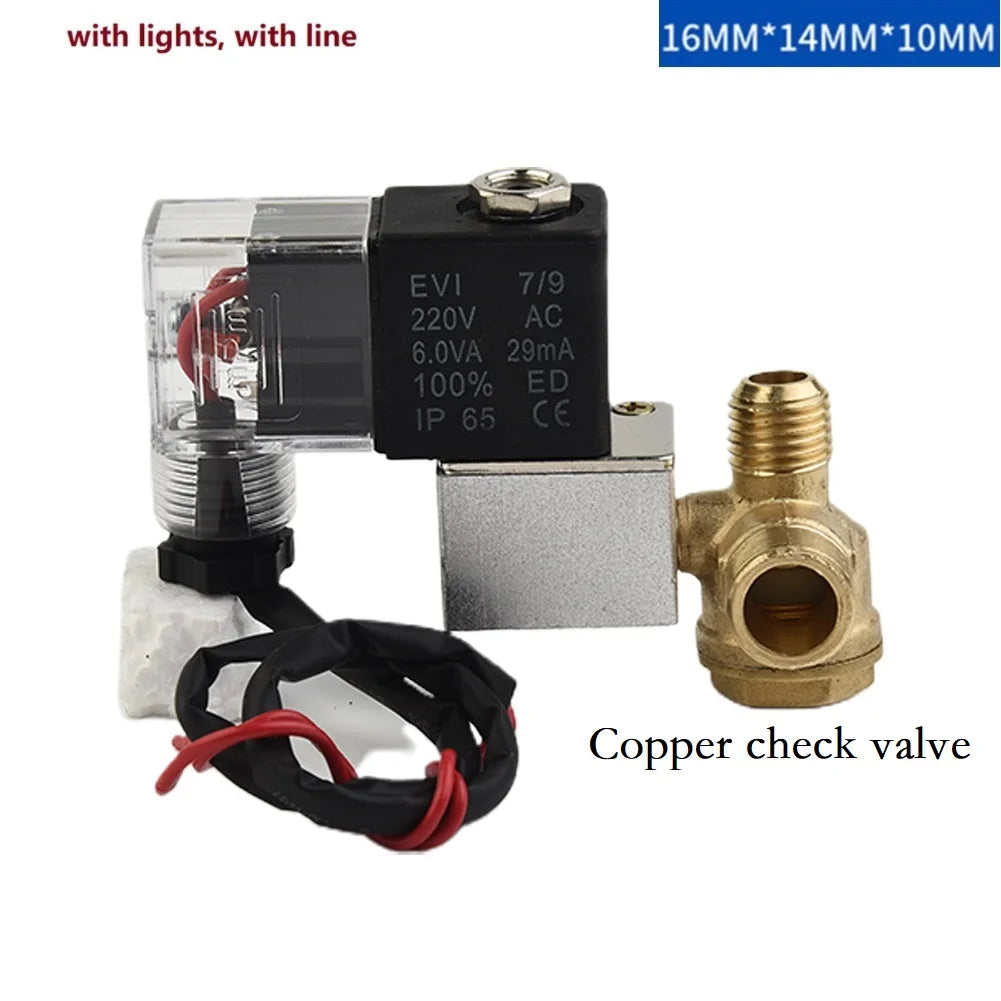

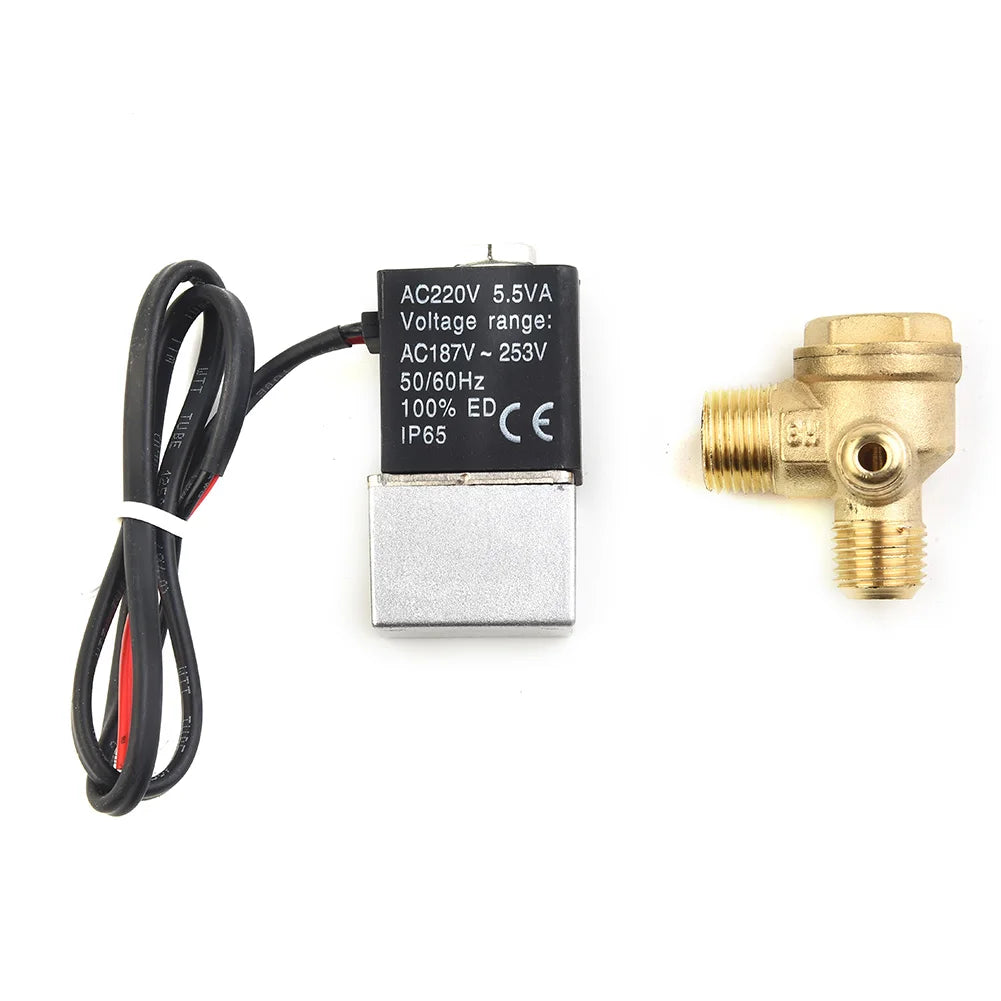

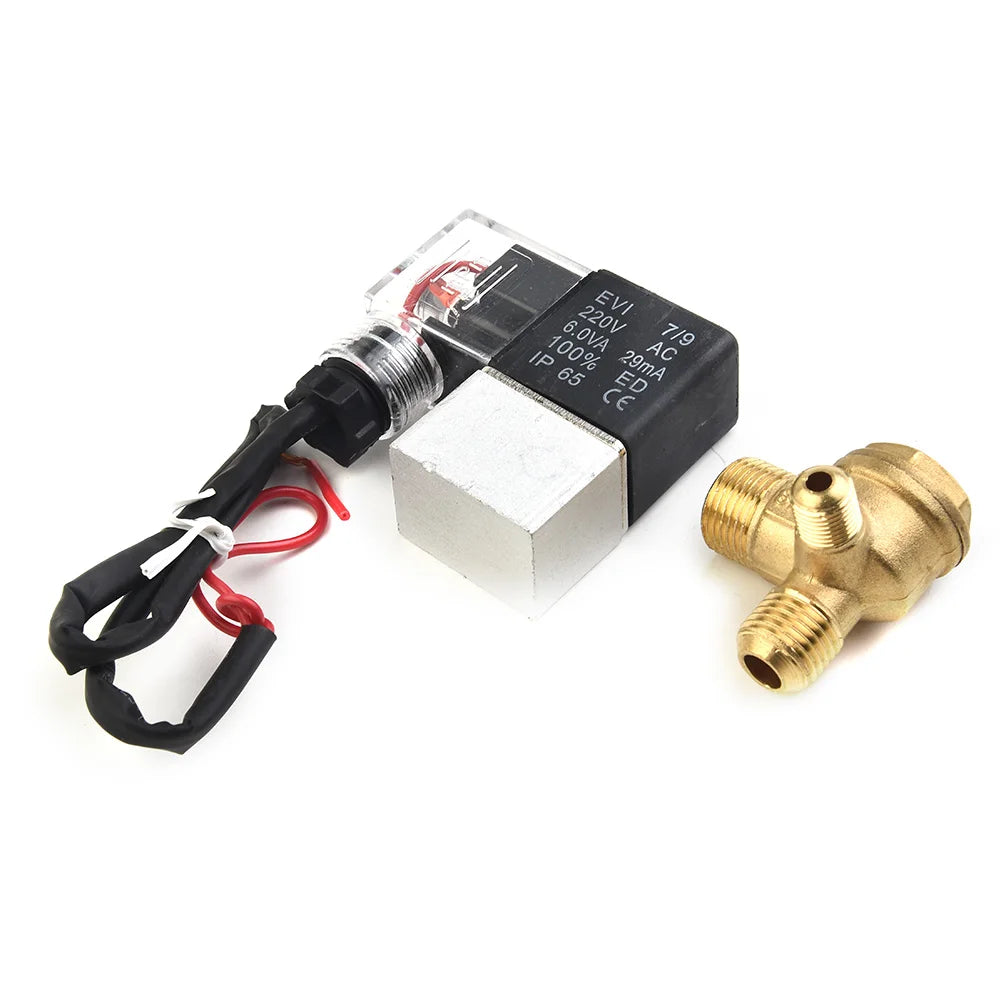

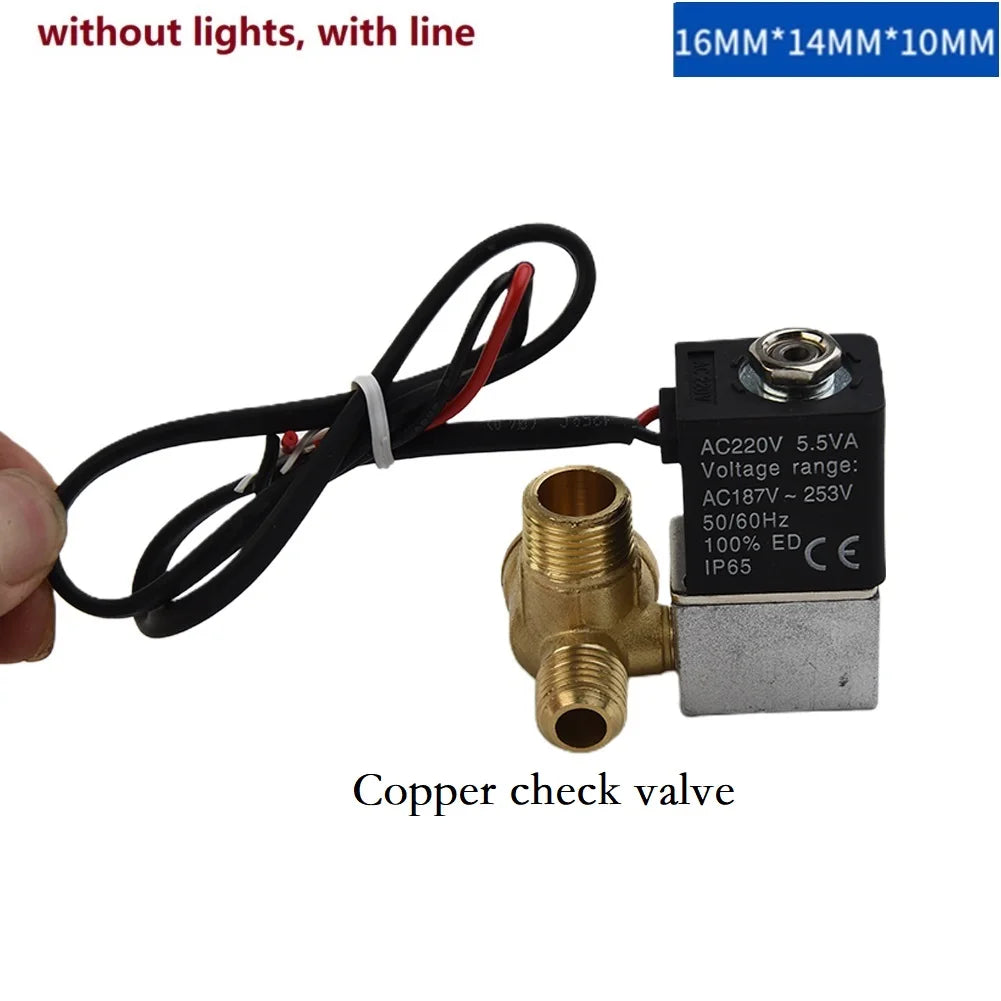

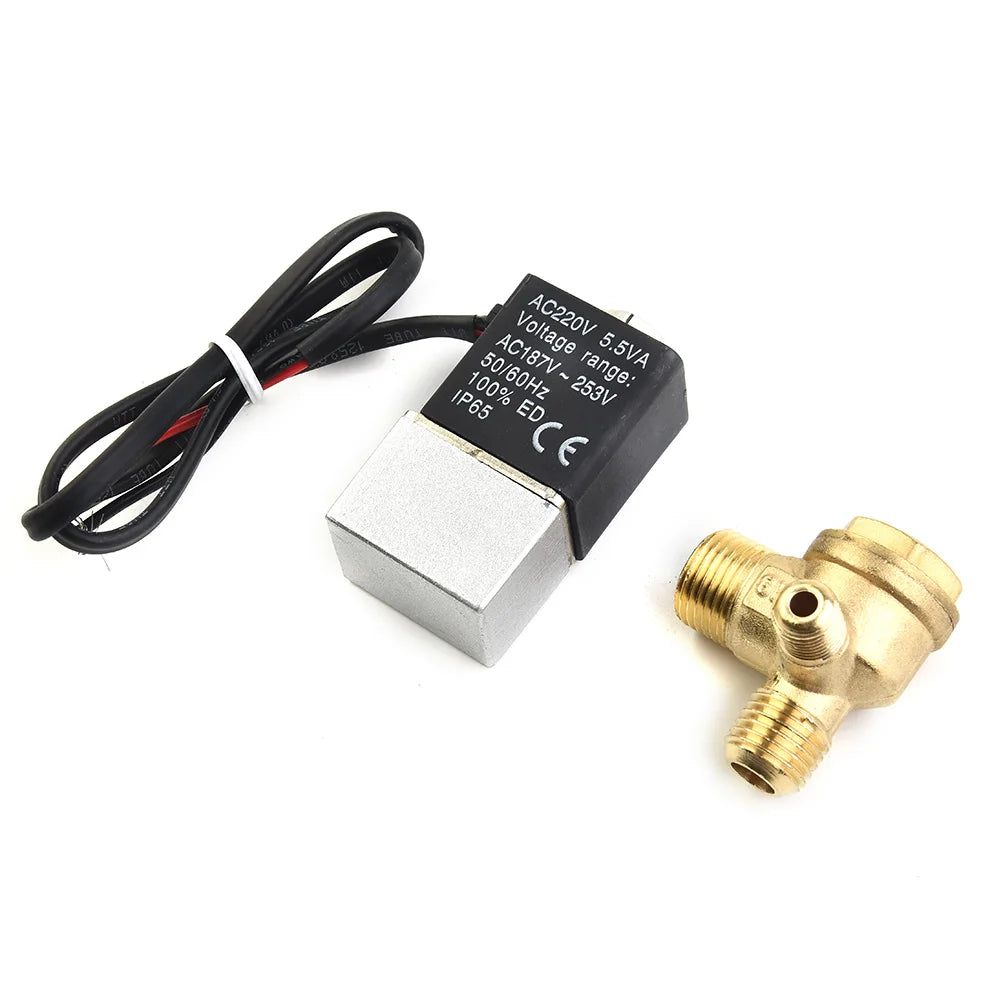

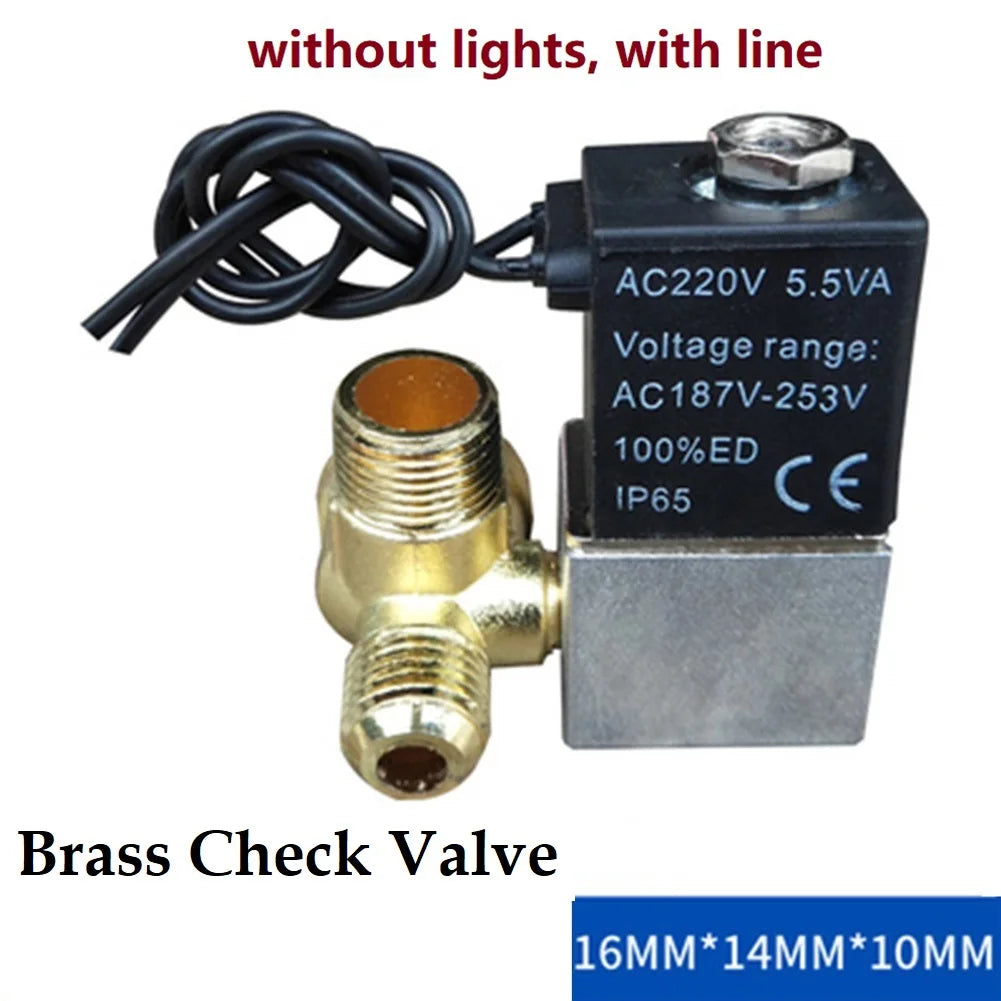

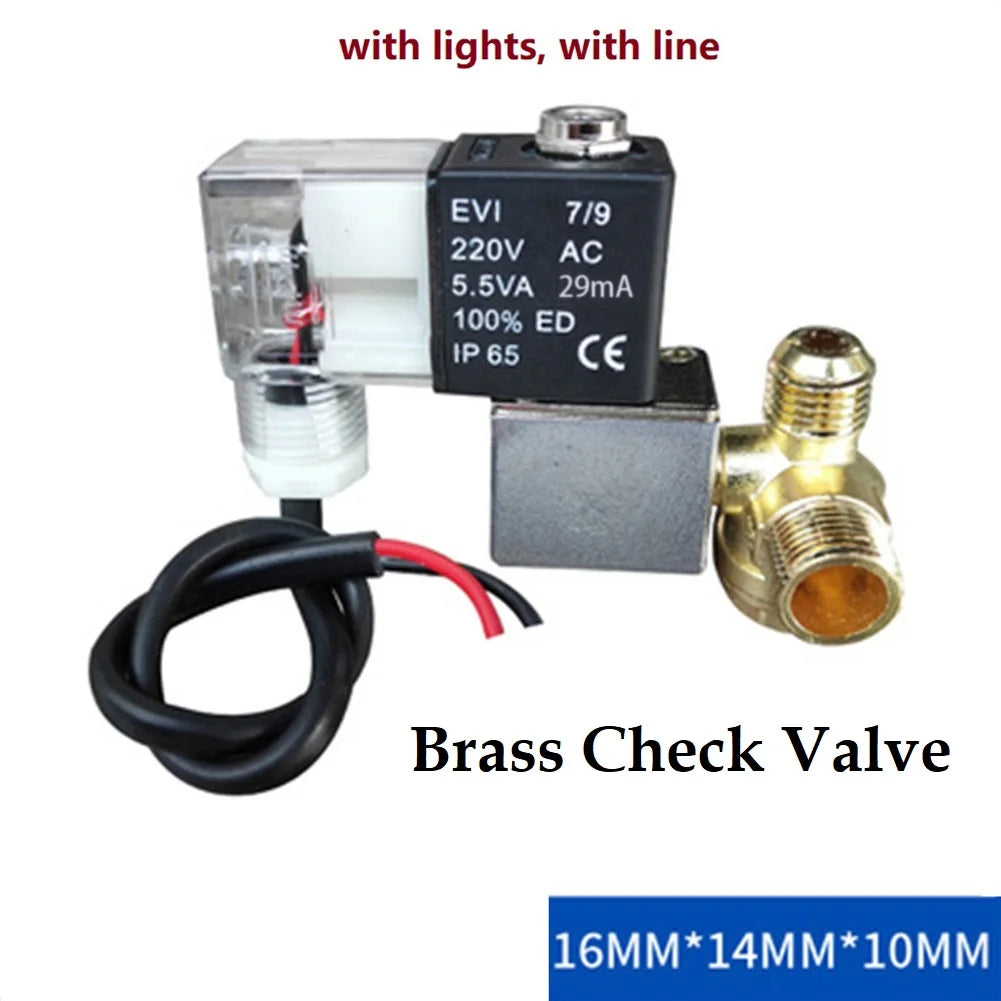

2PCS Mute Oil-Machine Pneumatic Solenoid Valves for Air Compressor Systems

SPECIFICATIONS

Hign-concerned Chemical: None

Type: Valves

Certification: none

Model Number: solenoid valve way valve

Choice: yes

semi_Choice: yes

Features:

Solenoid valve mute oil-free machine check valve valve bleed valve air compressor air pump compfor nts Air compressor

Wire type/LED light type/Wire type+LED light type

Connection form: thread

Applicable medium: steam

Spread direction: -way

Purpose: cut-off

Specification:

Color: shaw as picture

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Port Size: G1/4" Female Port

Coil Voltage: DC12V

Service Media: Air, Gas, Liquid, Water

Spread Model: Uni-Directional

Spread Rate: 0.23Cv (Fluid Spread)

Response Time: Less than 50 ms

Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

Operating Temperature: -10 to 80 °C

Coil Power: 4W

Material:

Body Material: Aluminum

Material: NBR (Buna N)

Armature Tube Material: Brass

Plunger & Spring Material: Stainless Steel

Package list:

1PCS solenoid valve

1PCS  -way valve
