5/10 Sets T Plug EC2 EC3 EC5 EC8 Bullet Banana Plug Lipo Battery Connector Terminal Socket Male Female DIY RC Airplane Aircraft

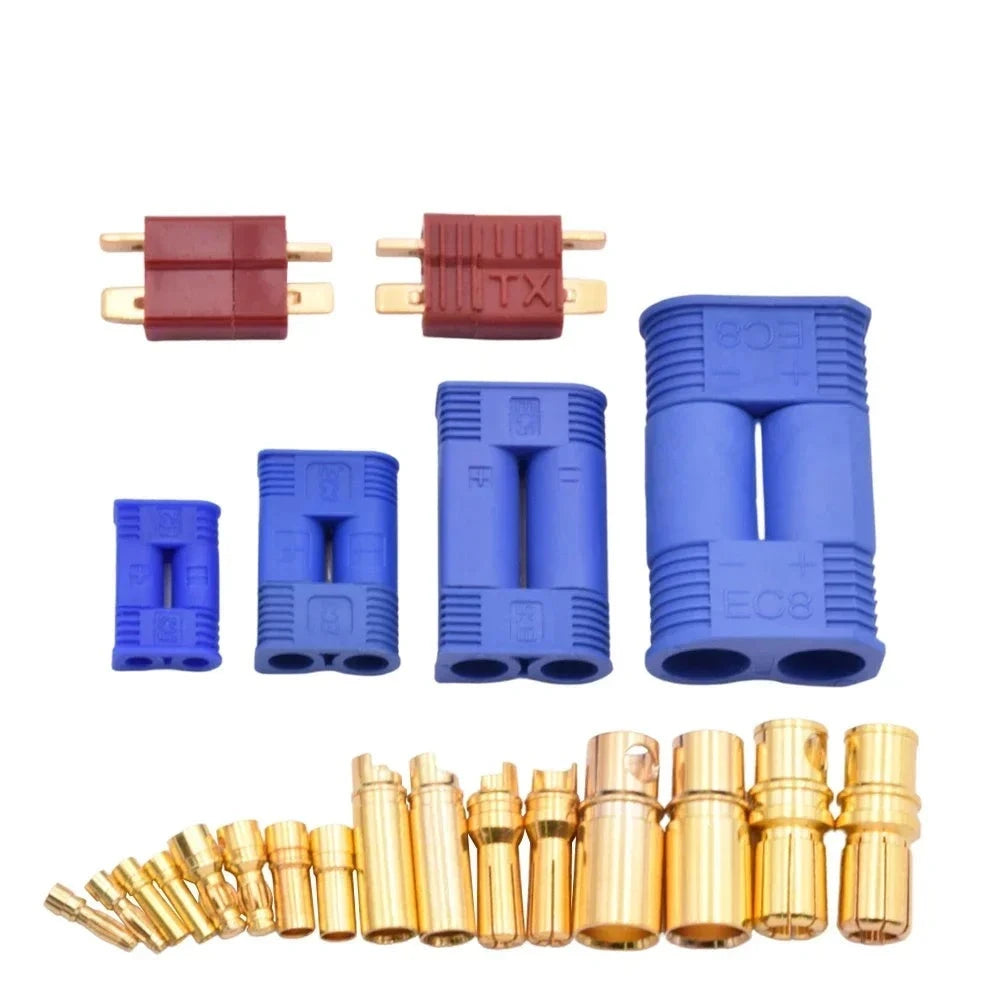

Take your RC airplane and aircraft projects to new heights with our selection of battery connector sets. Each set includes 5 or 10 pairs of T Plug, EC2, EC3, EC5, and EC8 bullet banana plug connectors, providing you with versatile options for your LiPo battery connections.

Product Description:

Ensure reliable and robust electrical connections with our range of connectors crafted from gold-plated copper and nylon/PA insulation. Designed to meet stringent standards, including CE and RoHS certifications, these connectors are engineered for durability and efficiency across a variety of applications.

Specifications:

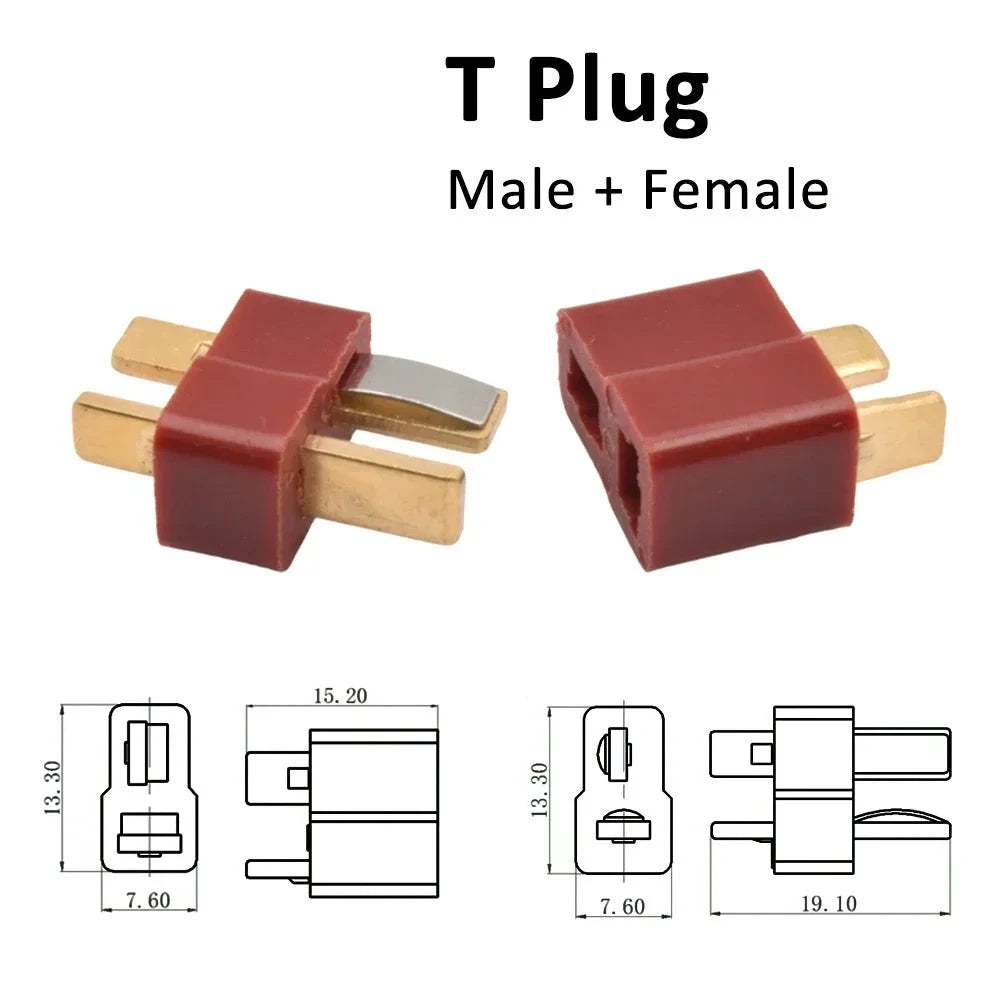

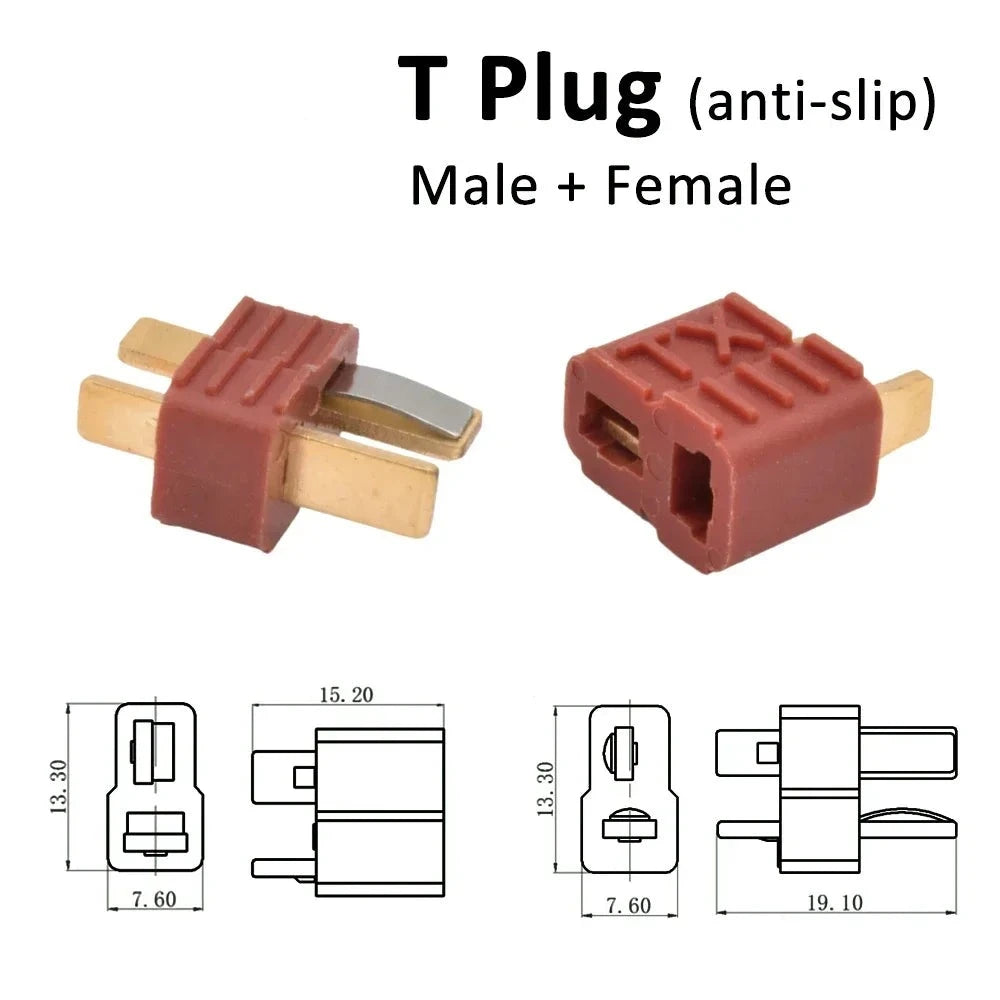

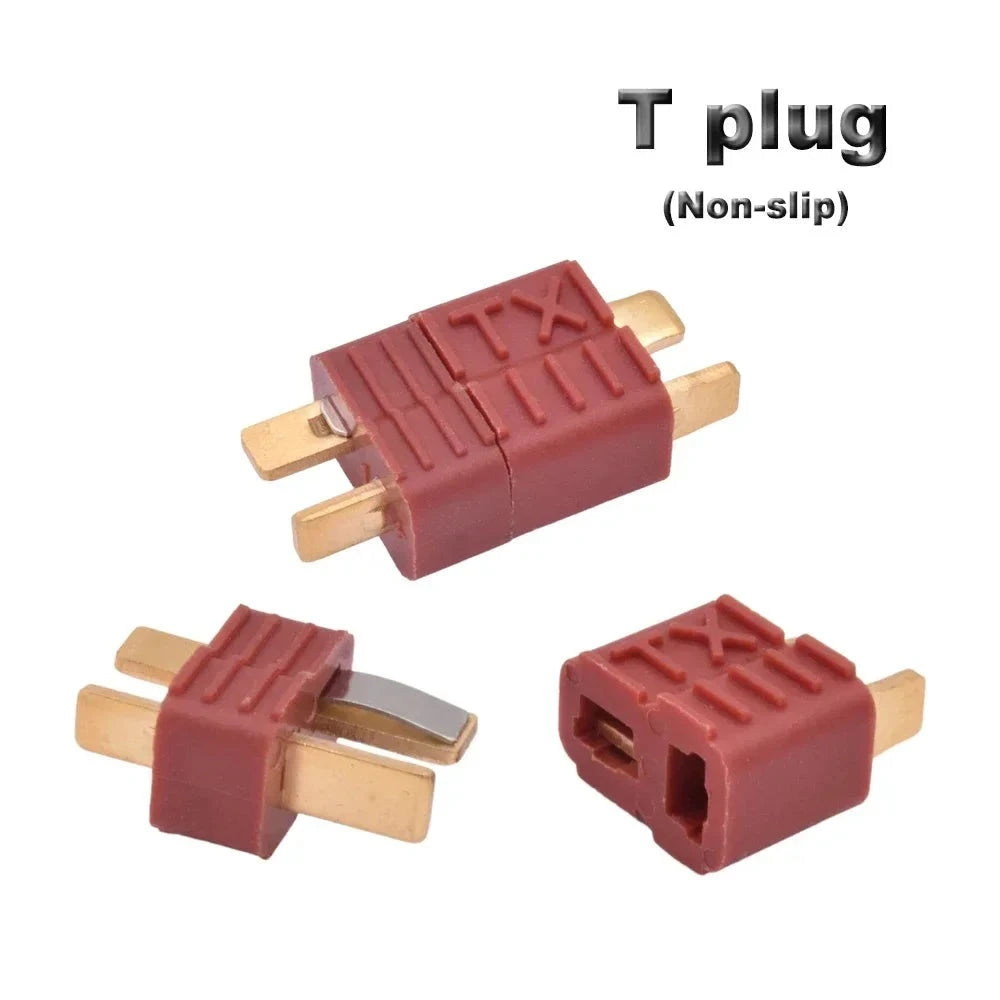

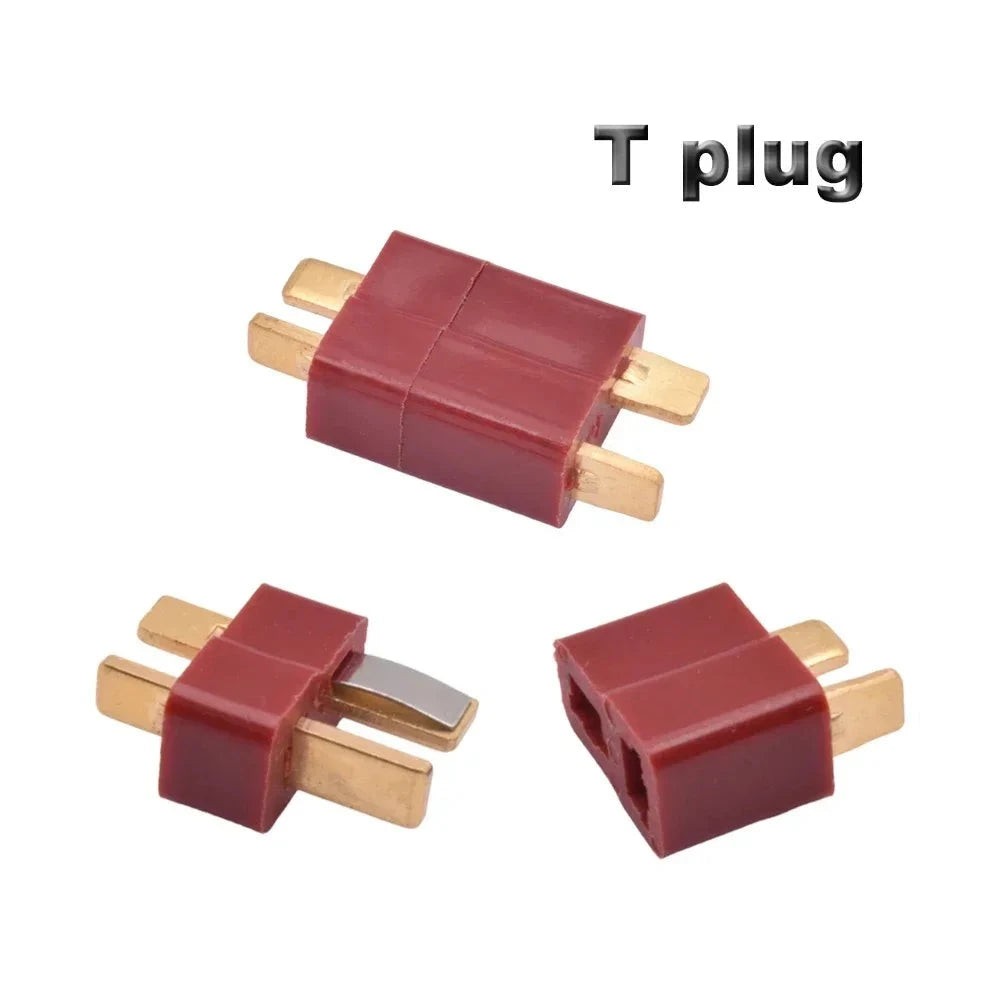

1. T Plug Connector:

   • Metal Material: Gold-plated Copper
   • Insulating Material: Nylon/PA
   • Rating: 25A/DC 500V
   • Instantaneous Current: 40A
   • Contact Resistance: 0.45mΩ
   • Flame Retardant Grade: UL94 V0
   • Temperature Resistance: -20°C~120°C
   • Recommend Cable Spec.: 12AWG
   • Packing: 5 Sets or 10 Sets female connectors

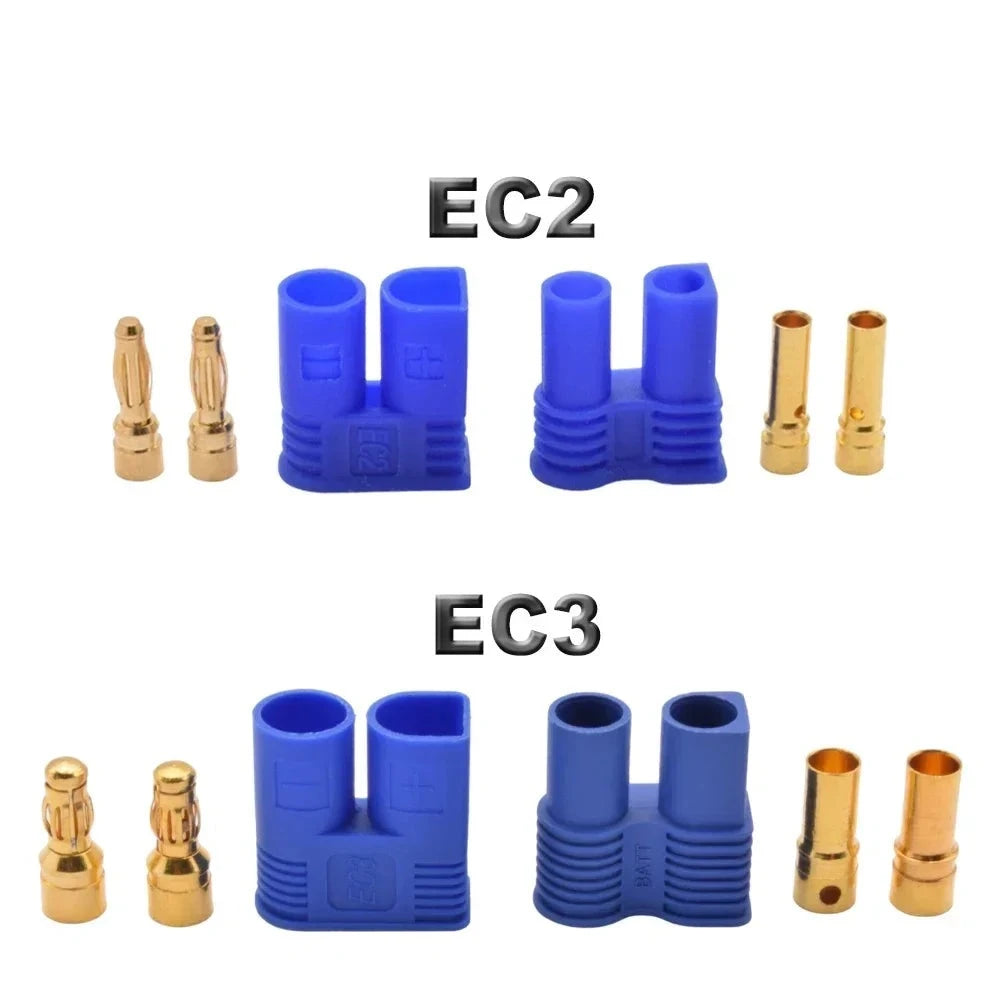

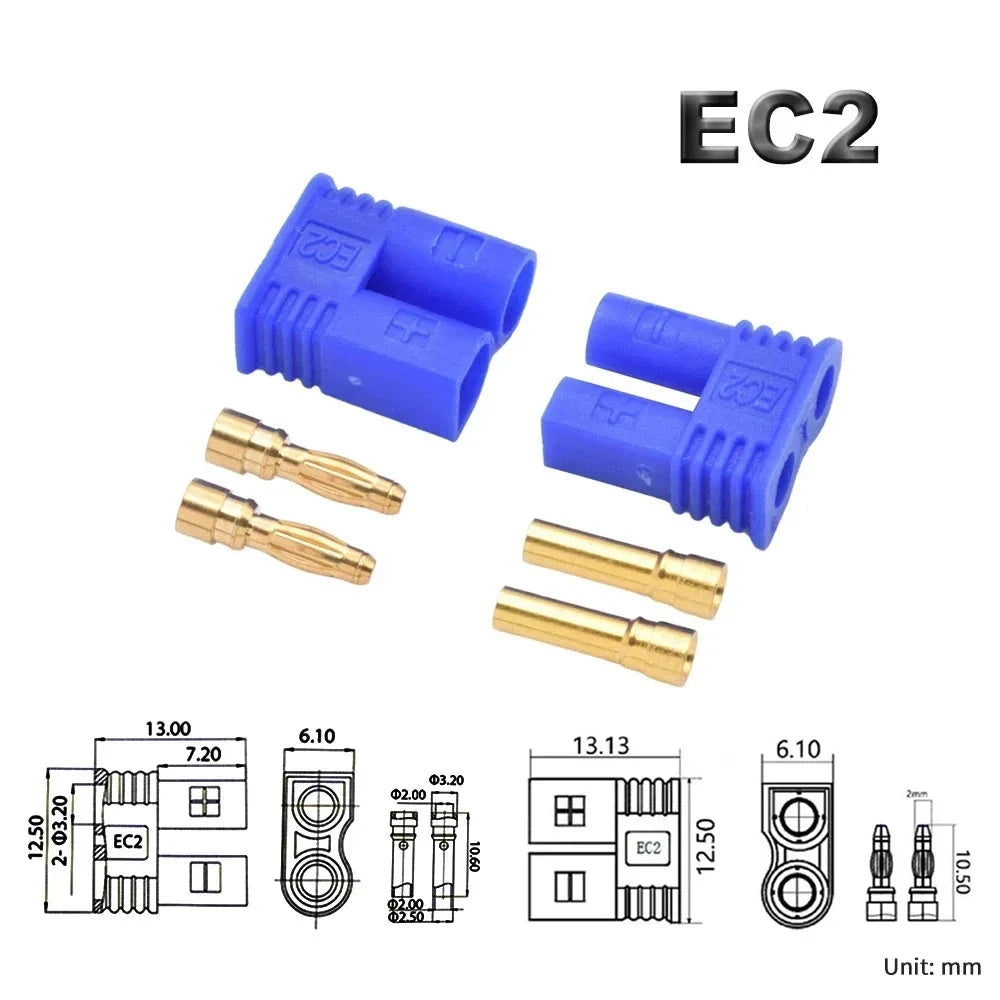

2. EC2 Connector:

   • Metal Material: Gold-plated Copper
   • Insulating Material: Nylon/PA
   • Rating: 15A/DC 500V
   • Instantaneous Current: 30A
   • Contact Resistance: 0.80mΩ
   • Flame Retardant Grade: UL94 V2
   • Temperature Resistance: -20°C~120°C
   • Recommend Cable Spec.: 18AWG
   • Packing: 5 Sets or 10 Sets of Male+Female Connectors

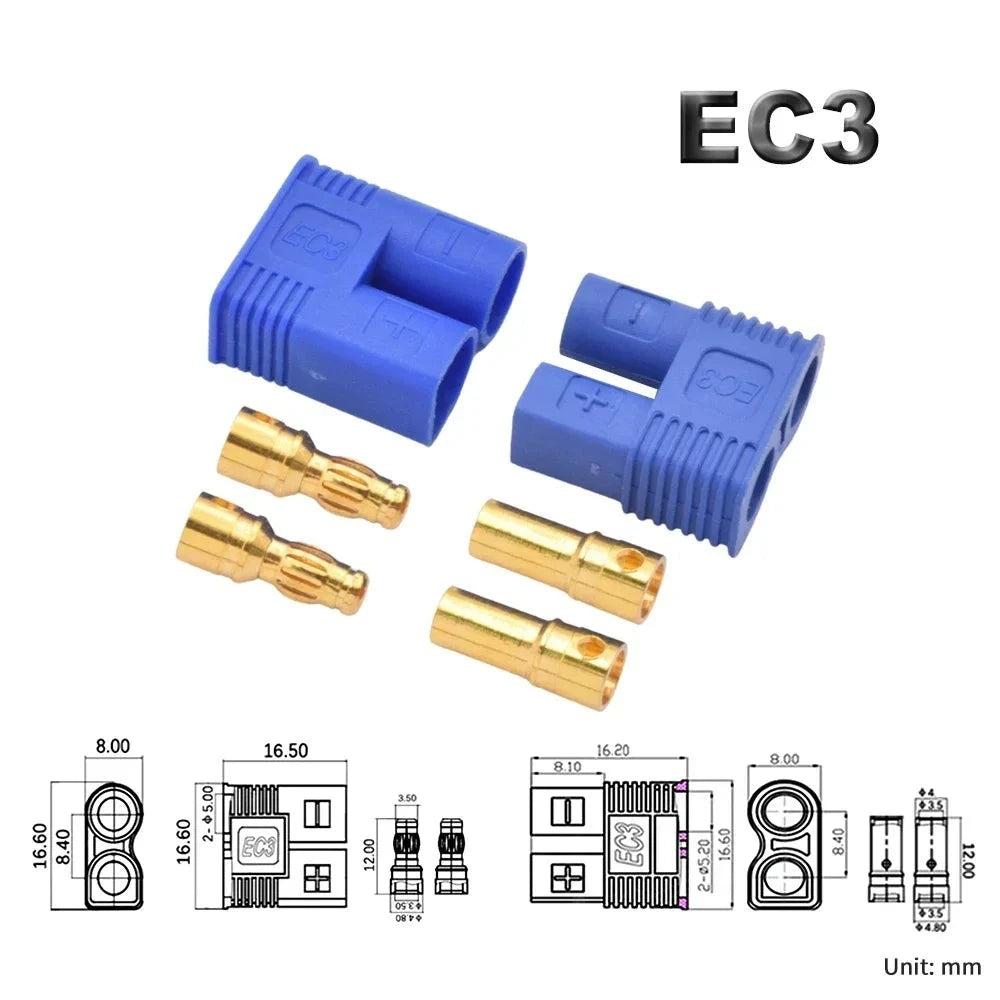

3. EC3 Connector:

   • Metal Material: Gold-plated Copper
   • Insulating Material: Nylon/PA
   • Rating: 25A/DC 500V
   • Instantaneous Current: 50A
   • Contact Resistance: 0.60mΩ
   • Flame Retardant Grade: UL94 V2
   • Temperature Resistance: -20°C~120°C
   • Recommend Cable Spec.: 14AWG
   • Packing: 5 Sets or 10 Sets female connectors

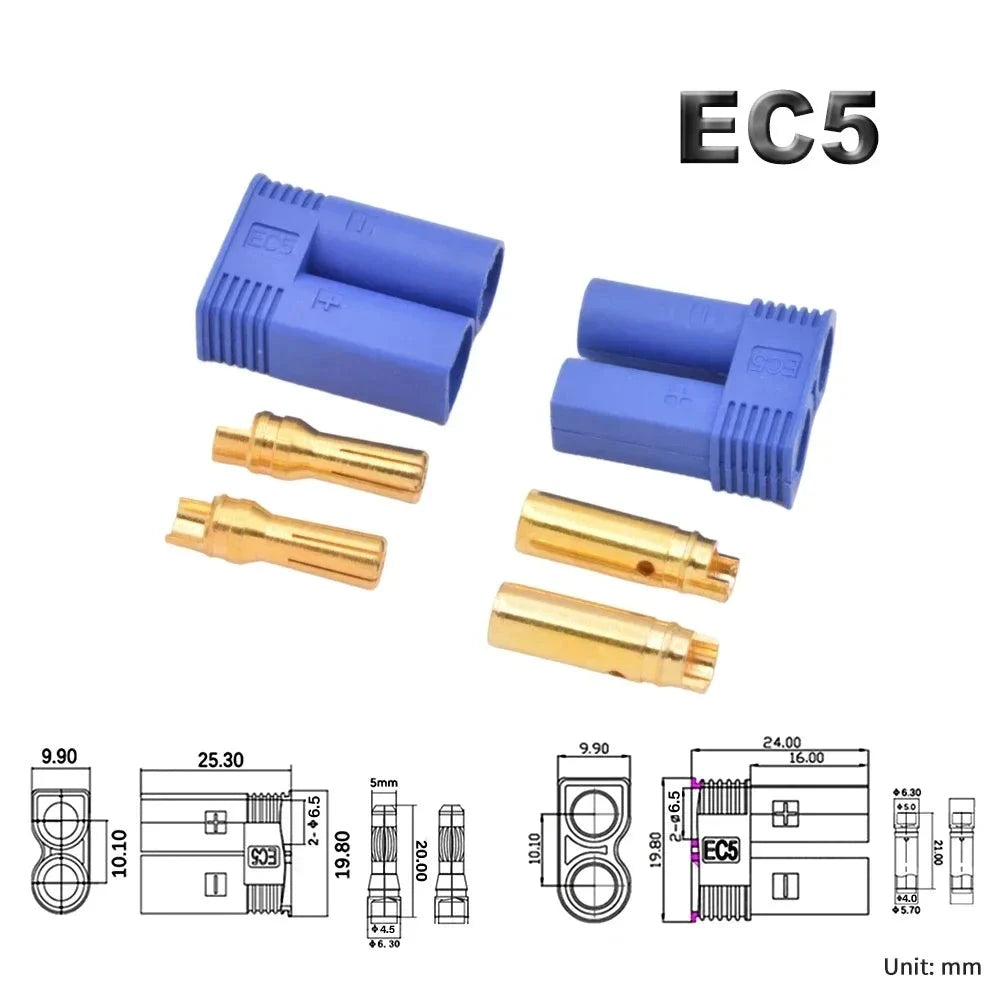

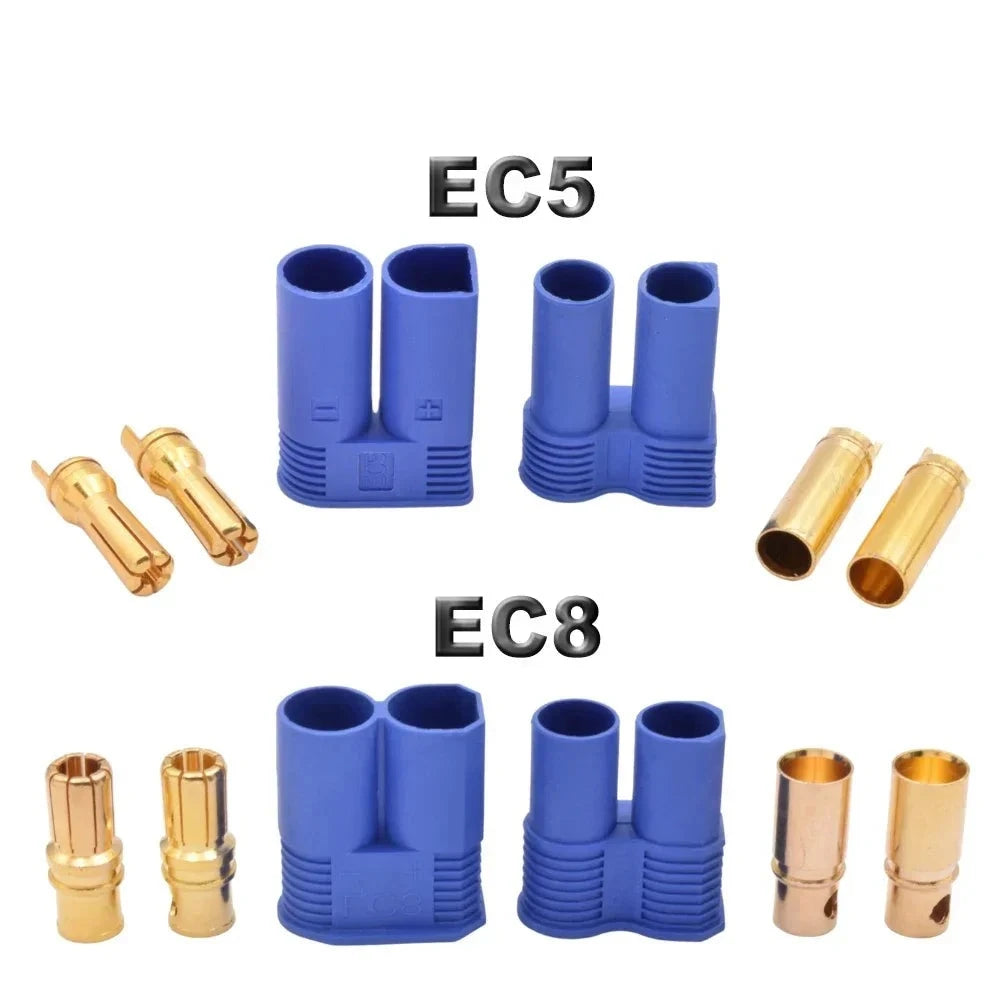

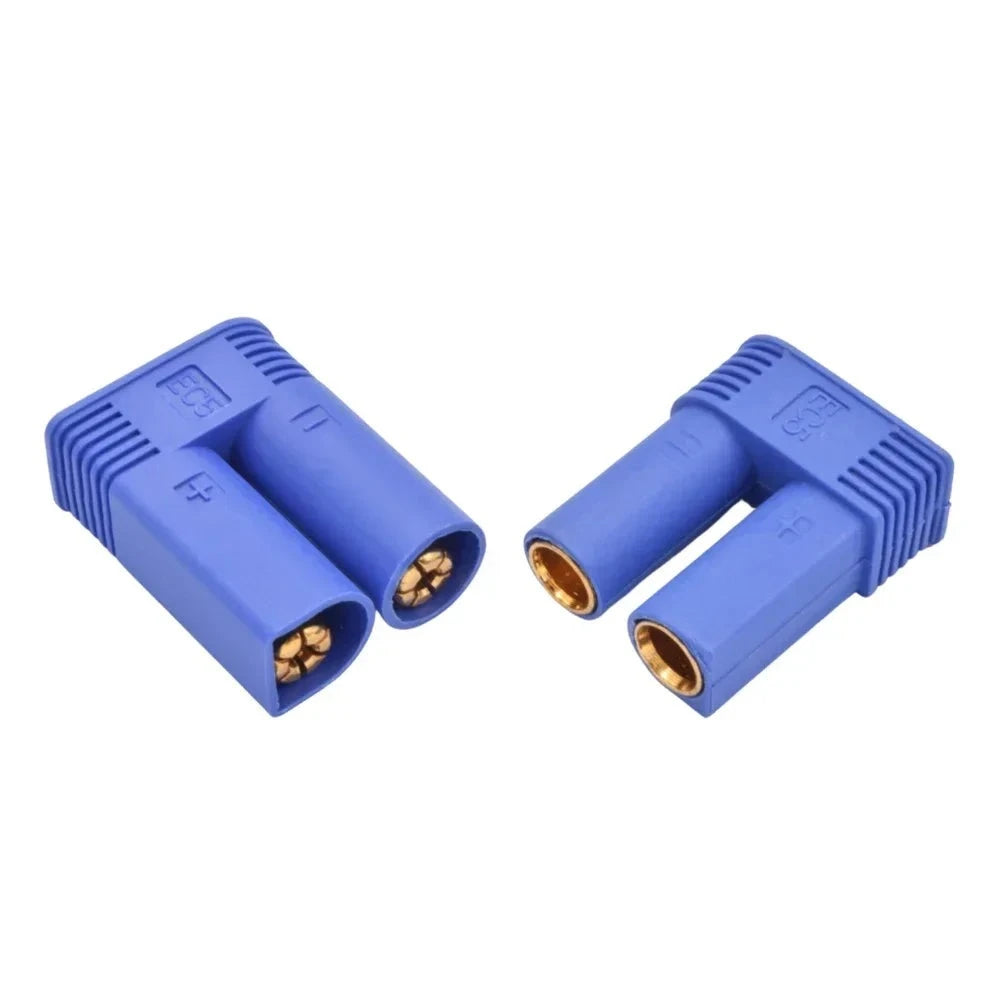

4. EC5 Connector:

   • Metal Material: Gold-plated Copper
   • Insulating Material: Nylon/PA
   • Rating: 45A/DC 500V
   • Instantaneous Current: 90A
   • Contact Resistance: 0.40mΩ
   • Flame Retardant Grade: UL94 V2
   • Temperature Resistance: -20°C~120°C
   • Recommend Cable Spec.: 12AWG
   • Packing: 5 Sets or 10 Sets of Male+Female Connectors

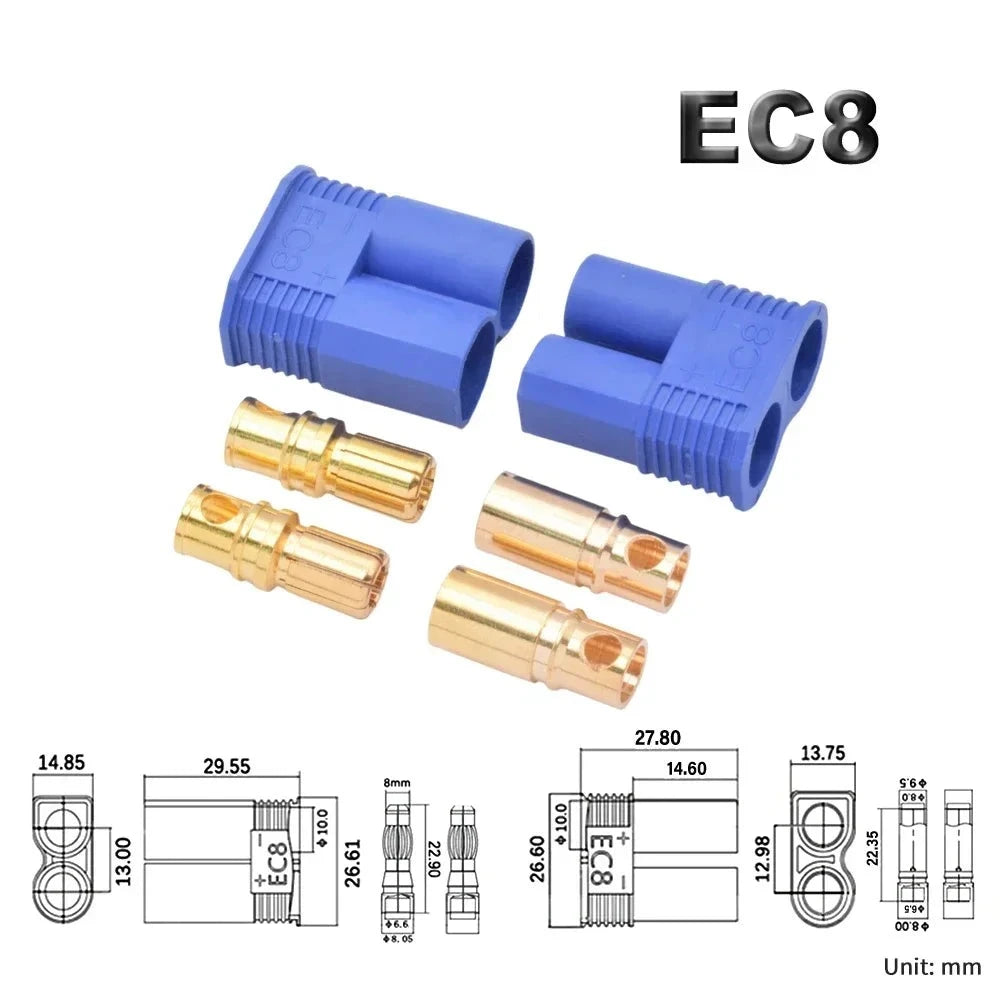

5. EC8 Connector:

   • Metal Material: Gold-plated Copper
   • Insulating Material: Nylon/PA
   • Rating: 100A/DC 500V
   • Instantaneous Current: 200A
   • Contact Resistance: 0.15mΩ
   • Flame Retardant Grade: UL94 V2
   • Temperature Resistance: -20°C~120°C
   • Recommend Cable Spec.: 7AWG
   • Packing: 5 Sets or 10 Sets of female connectors

These connectors are designed for optimal performance in various electrical applications, ensuring durability, safety, and compliance with industry standards.
