    Zone Heating 8-channel Wireless Thermostat Controller Central Smart Heating for Gas Boiler Water Floor Actuator System

    €17,80 EUR
     per
    Color: RZ-D07-230NC
    Voltage: 220-240V

    Product description

    SPECIFICATIONS
    Wattage: 30W
    Hign-concerned Chemical: None
    Pump output delay: 5min
    ZONE: 8 Zone

    NOTE:

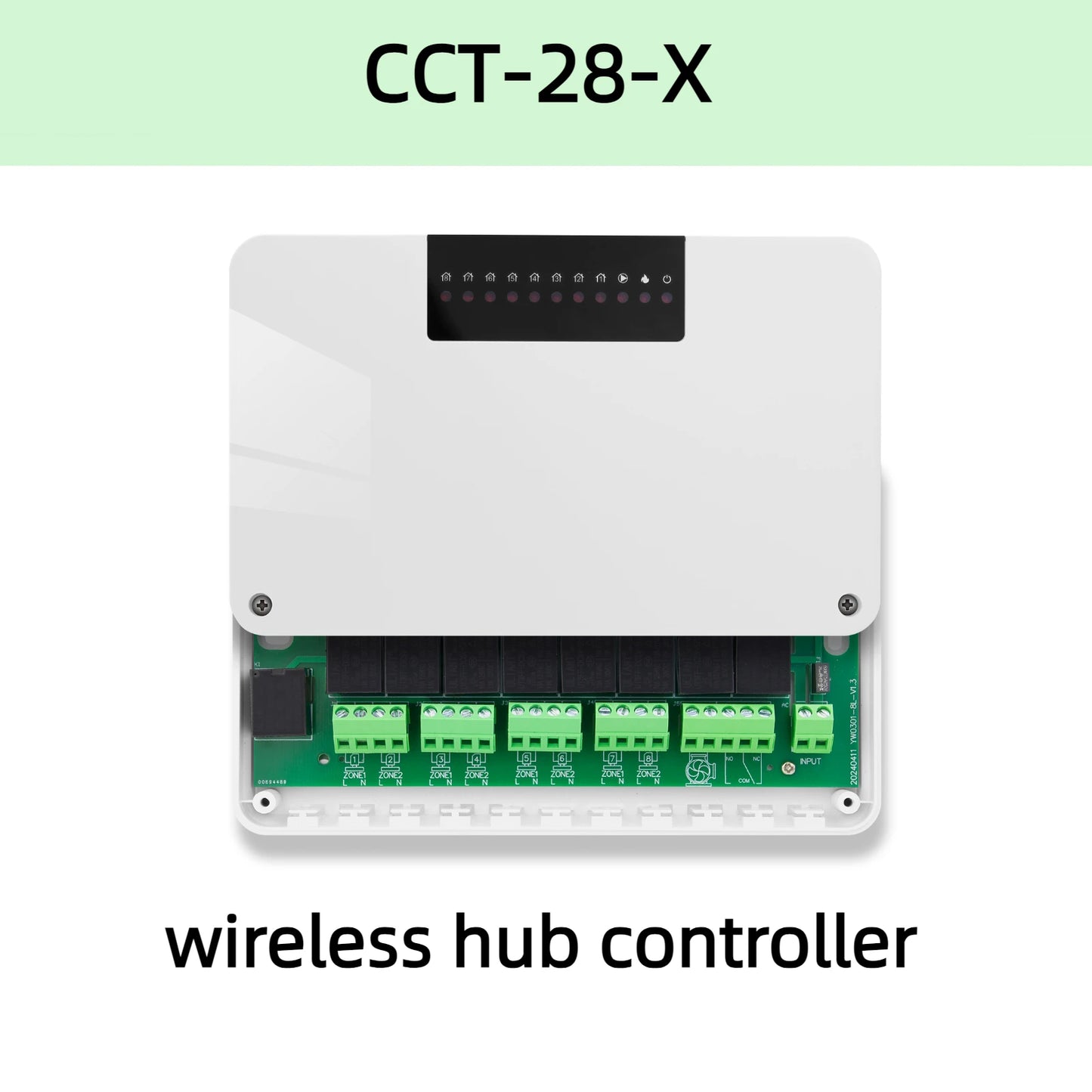

    CCT-28-X itself does not have WIFI and requires a WiFi temperature controller to be connected in order to control the entire system through WiFi.

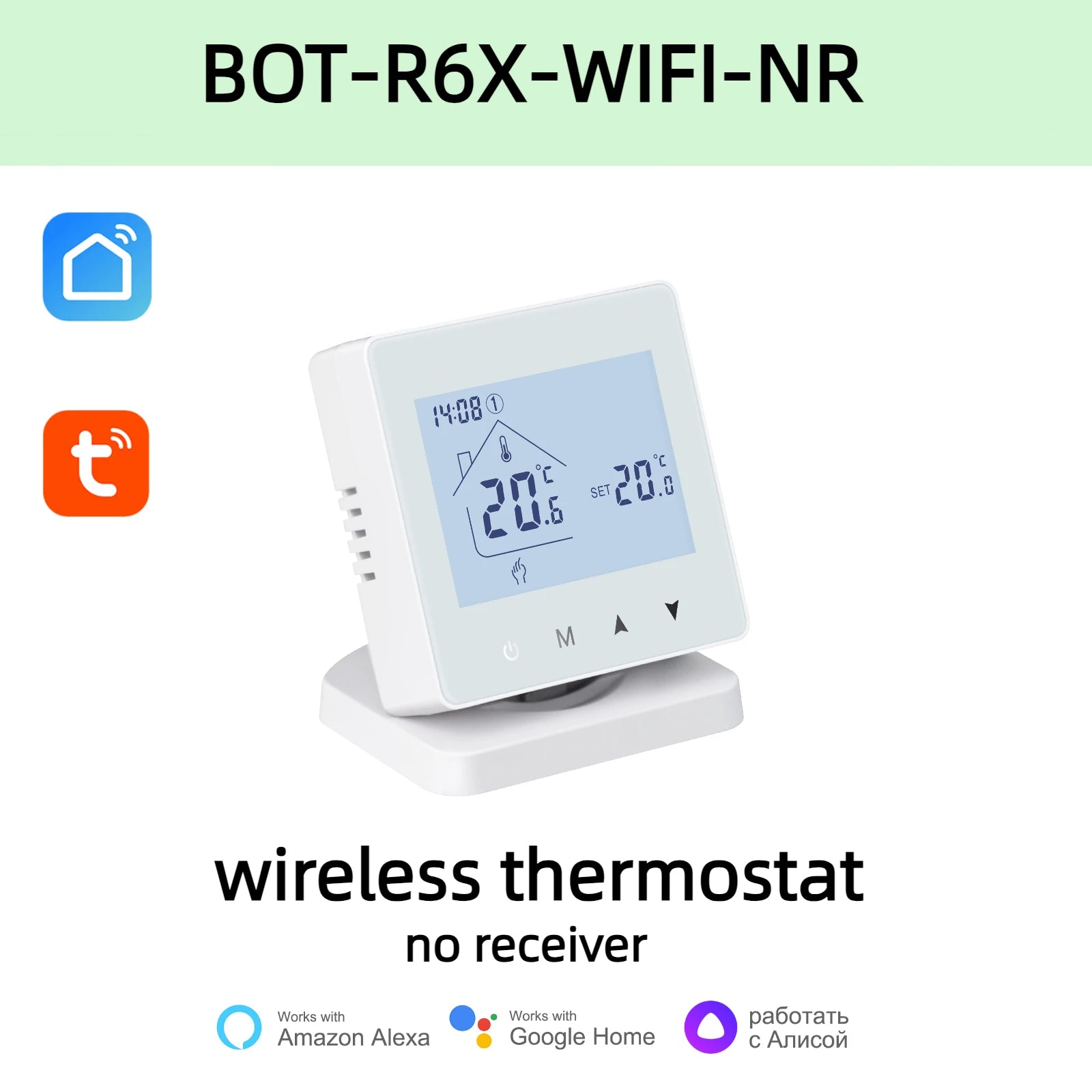

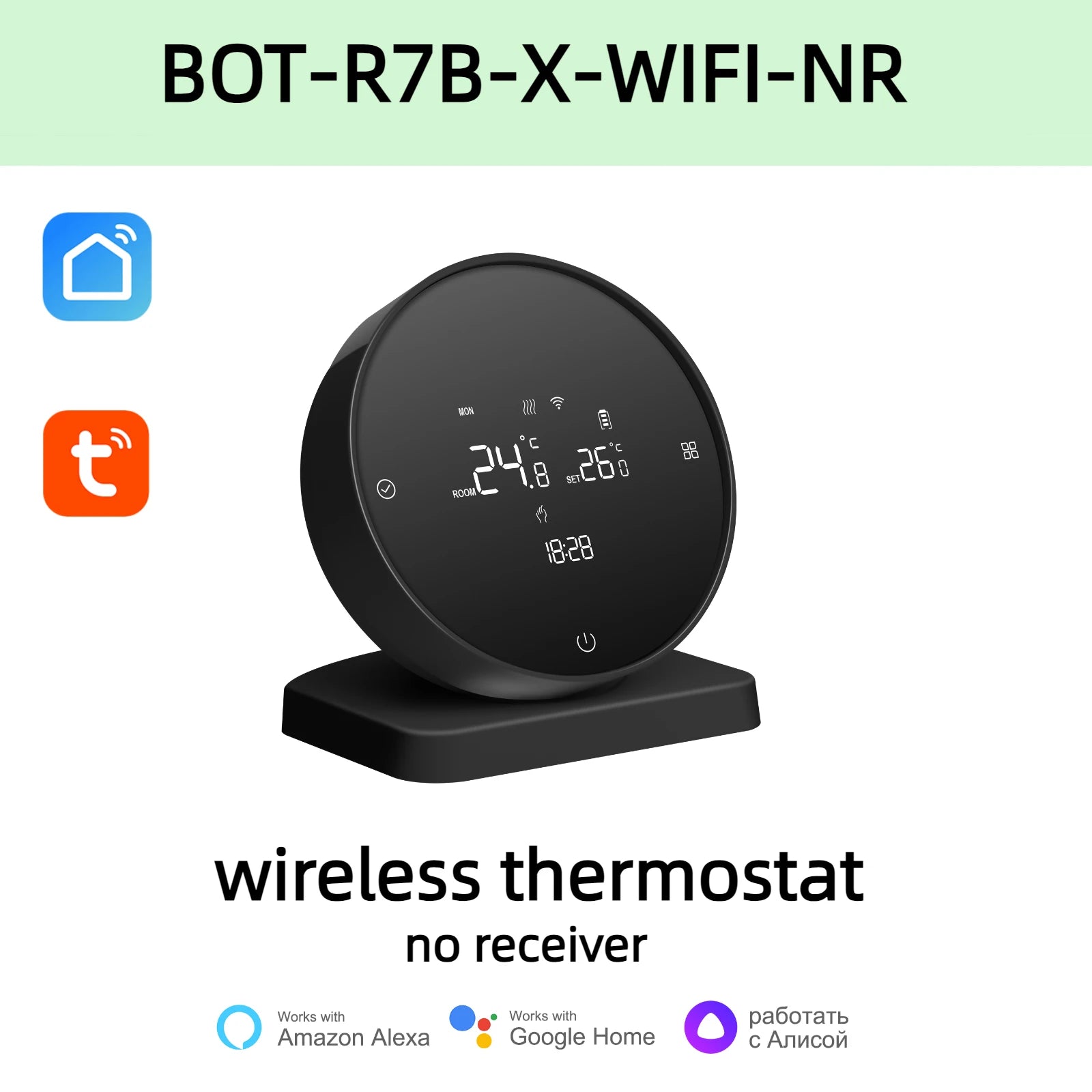

    BOT-R6X-NR and BOT-R7X-NR :Only the controller, no receiver, pay attention to the model before purchasing.

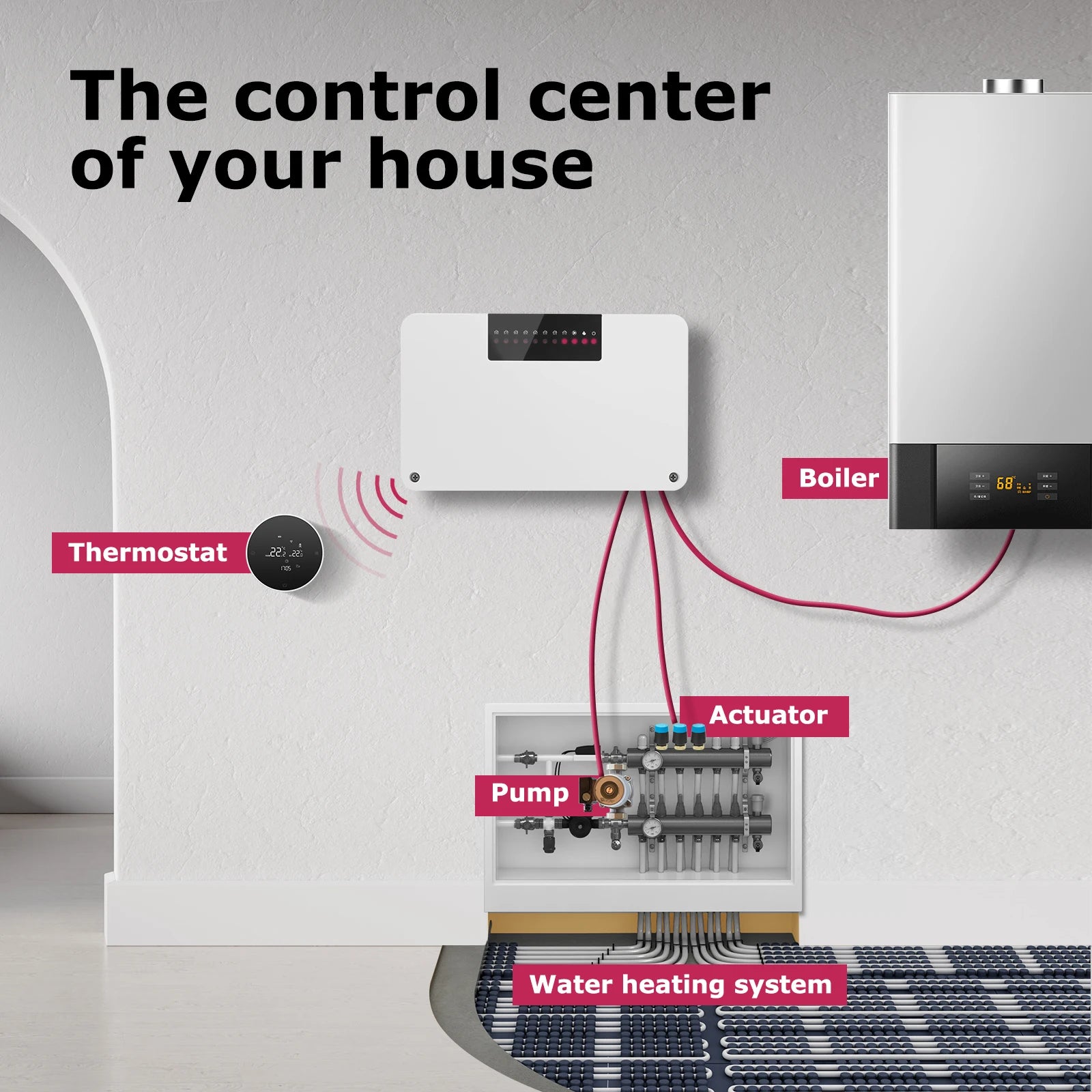

    CCT-28-X Wireless Thermostat Controllers is used in water underfloor heating system. It can control zone valves, or boiler thermostats. As central control unit, it can also control boiler and circulating pump. According to user’s set temperature, controller can control to open or close boiler, circulating pump and electric actuators, to achieve the purpose of comfort and energy consumption saving.

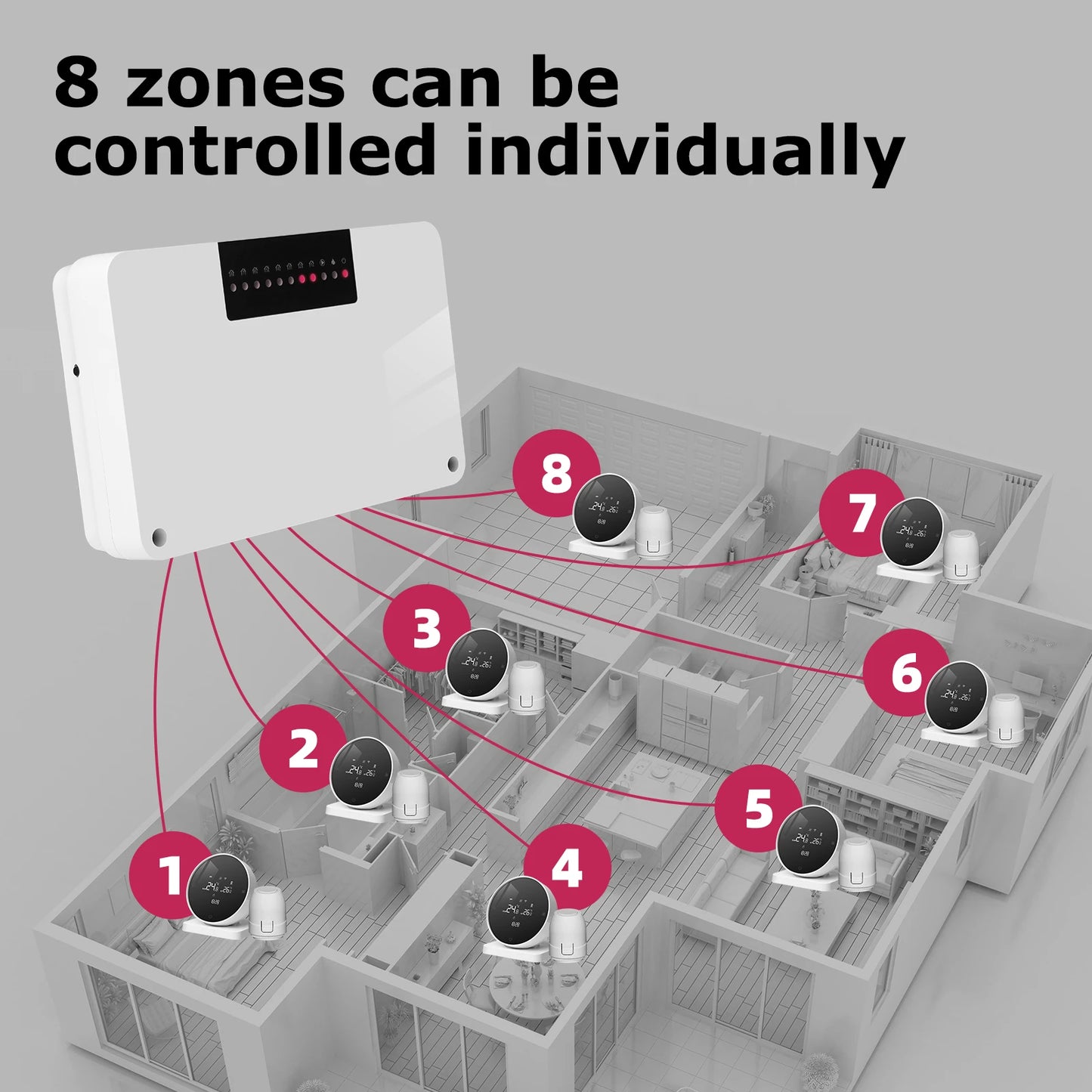

    Can control the temperature of 8 rooms:
    A CCT-28-X can connect 1-8 temperature controllers, with a maximum of one temperature controller per zone.
    Each temperature controller can connect multiple areas.
    Wiring diagram:
    L,N Connect to a 220V power supply.
    Connect COM, NO, NC to the boiler.
    "Pump" is connected to the water pump.
    Connect ZONE 1-8 to thenormally closed actuator.

    Each zone can connect up to 8 normally closed actuators.
    Specifications:
    Voltage: 100-240VAC
    Current: max 20mA
    Wireless frequency: 433MHz
    Size: 18 * 11 * 4cm
    Working temperature: 0-85 ℃
    Pump output delay: 5 minutes
    Maximum power of water pump: 1000W

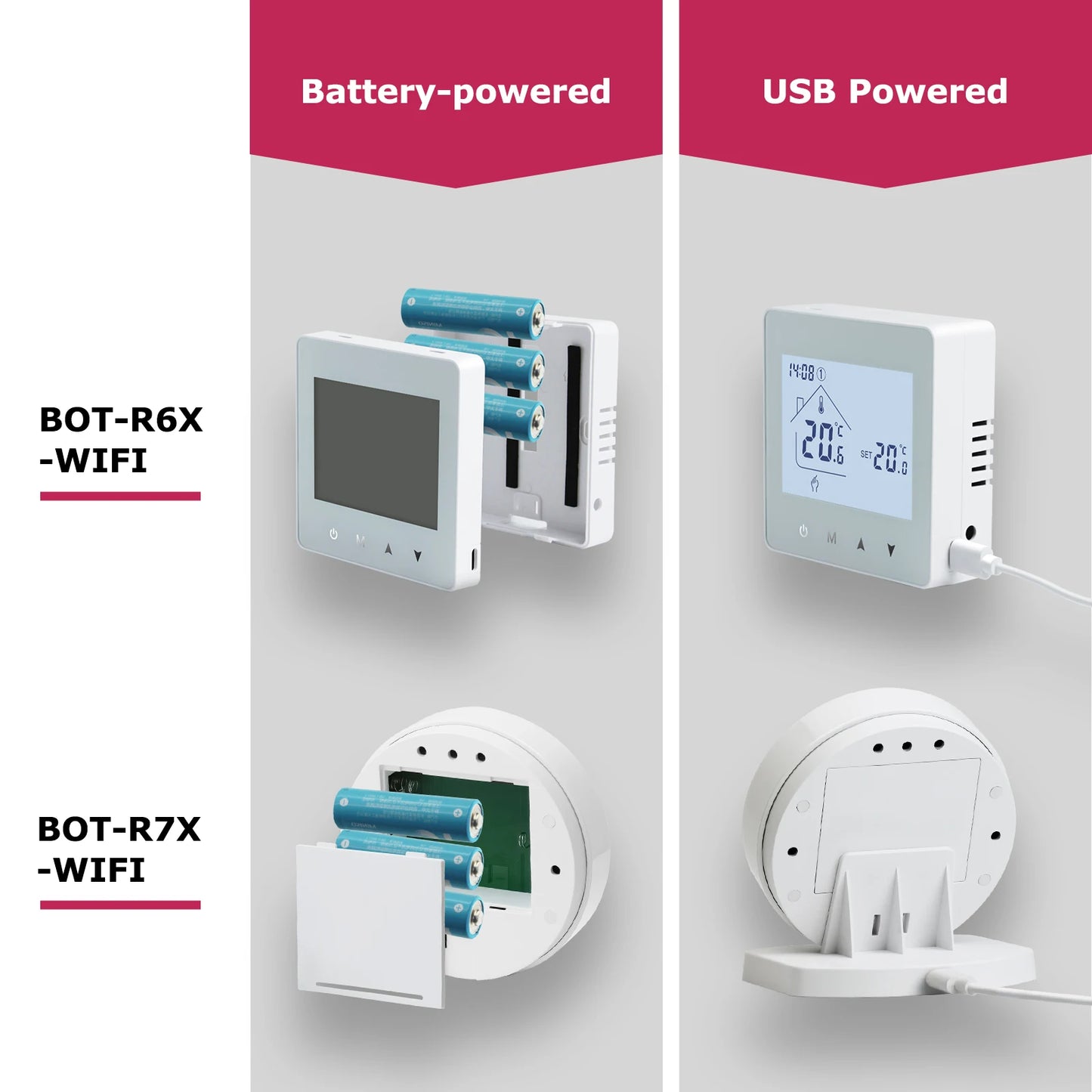

    Temperature controller power supply method:
    The thermostat can be either battery powered (3AA batteries) or USB powered.
    APP Control:

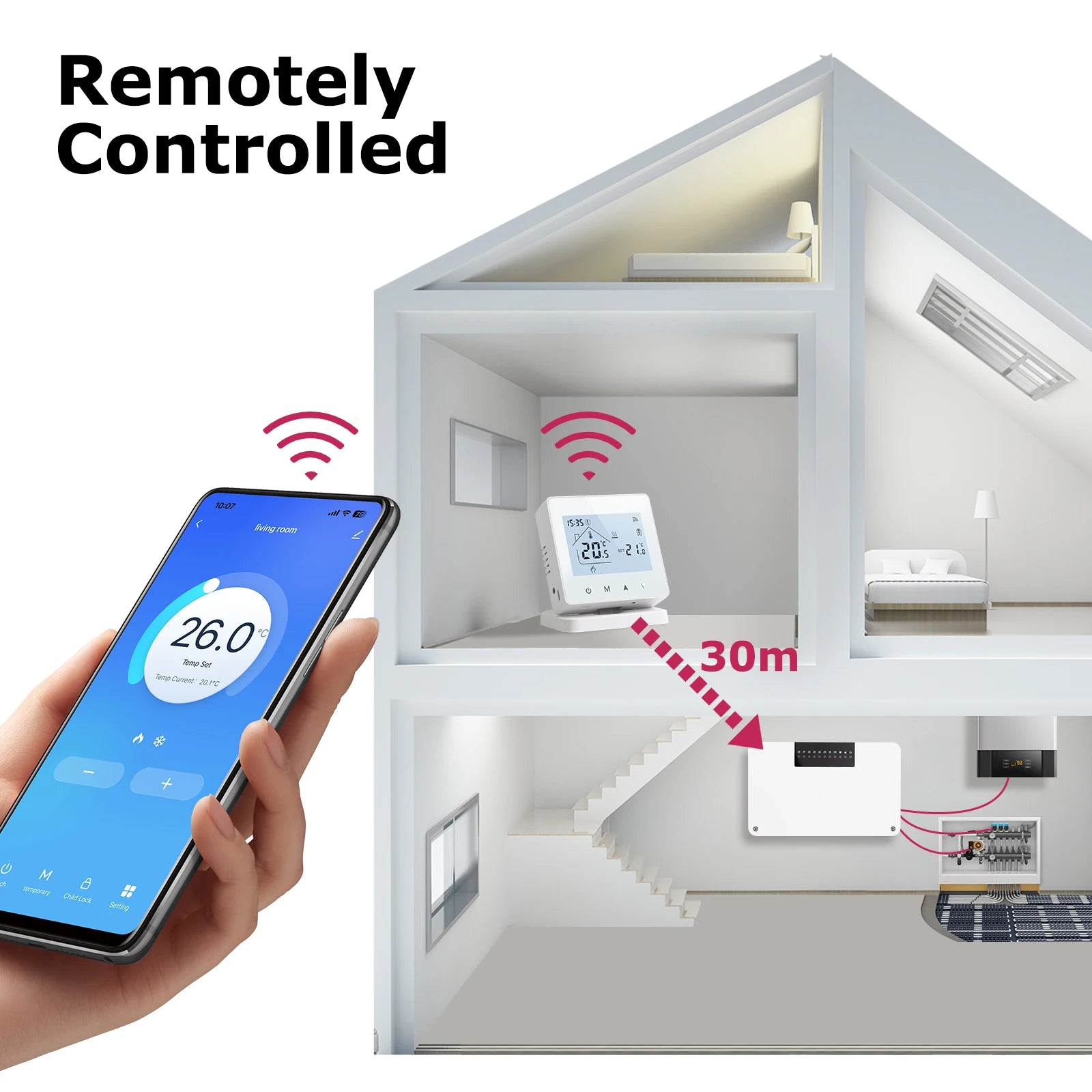

    The hub can connect WiFi thermostats and No WiFi thermostats. When connecting the WiFi thermostat, the entire system can be controlled through the phone.

    The functions of the thermostat:
    【APP control】Connect Tuya and Smart Life APP.
    【Voice Assistant】Work with Google Home,Alexa and Alice.
    【Programmable】5+2/6+1/7, 3 programming modes.Temperature can be set for 6 time periods on weekdays.
    【Child Lock】
    【Anti-freeze】
