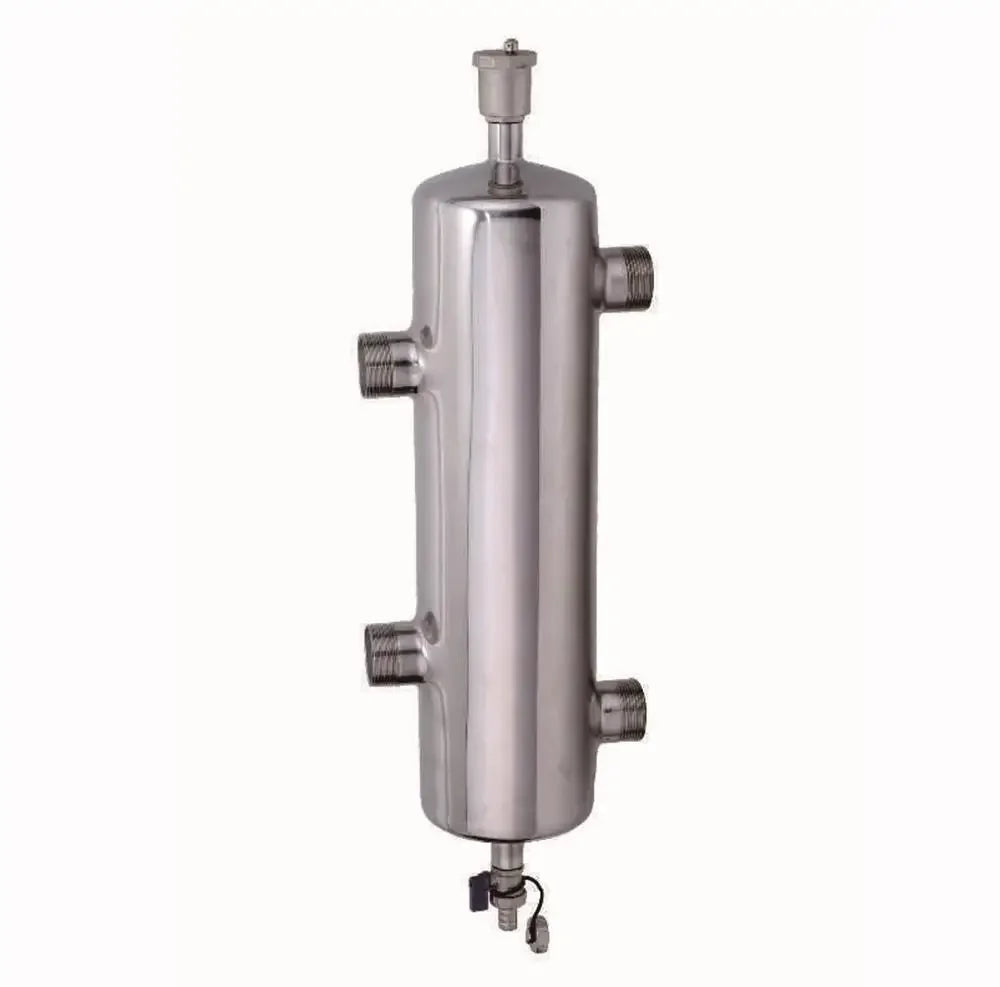

Hydraulic Separator for Large Gas Boilers: Optimized Floor Heating System Component

Maximize heating efficiency with our Hydraulic Separator. This all-in-one solution simplifies air and dirt removal for superior floor heating performance. A must-have for residential and commercial underfloor heating systems.

Description:

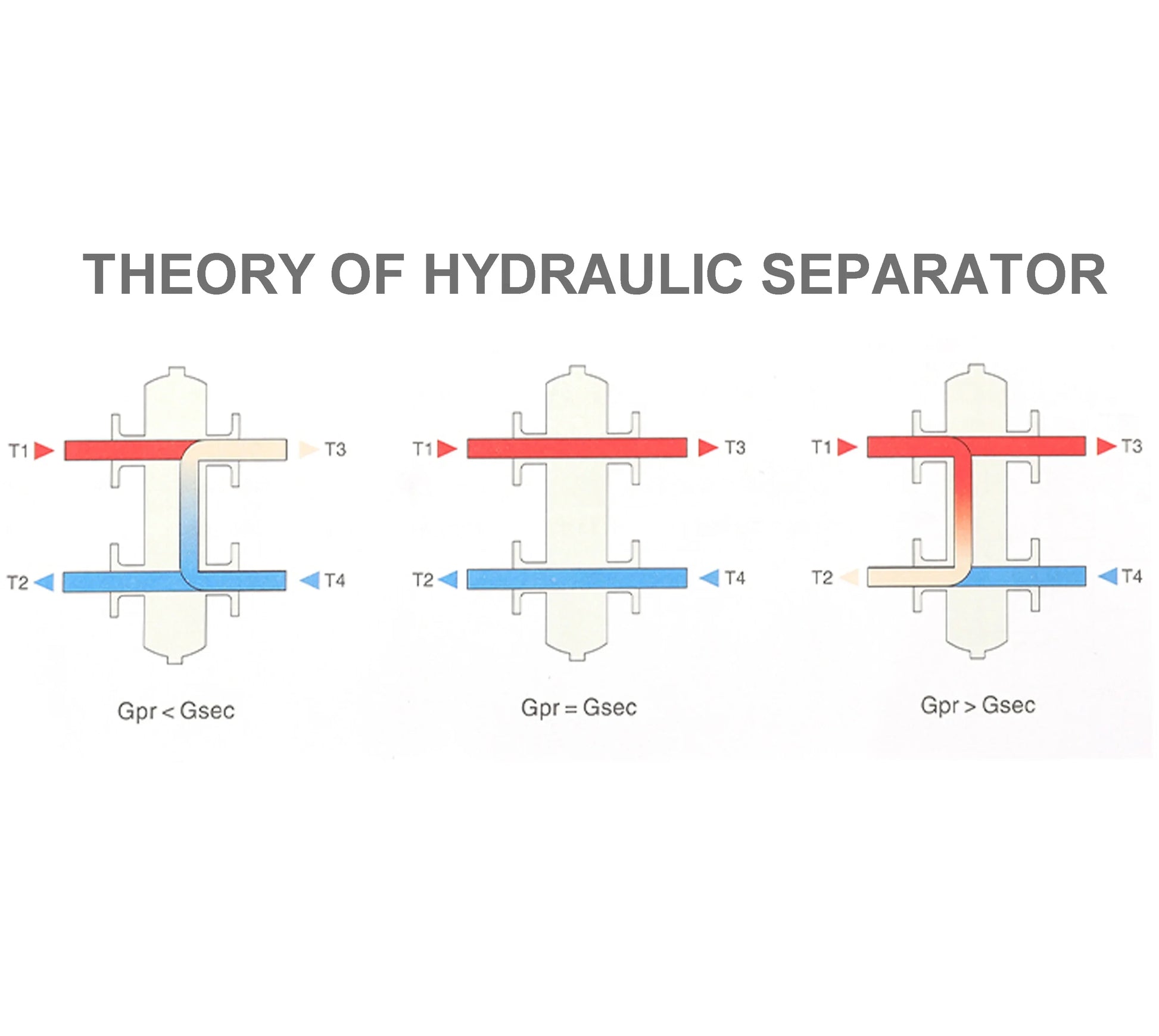

Hydraulic Separation - Reduces flow velocity for effective air and dirt removal, improving system efficiency.
Versatile Application - Ideal for a range of heating systems, including villas and indoor underfloor heating.
Modern Design - Features a contemporary style with a focus on functionality and durability.

Specifications:
Type: Floor Heating Systems
Model Number: Art 700 N+1
Holes: 1/2" G
Main Tube Thread: 1" G
Hole Distance: 50mm
Outlets: 2-13 holes
Input/Outputs: 1" input with 2 x 1" outputs
Warranty: 5 years
After-Sale Service: Online technical support, Onsite Installation, Onsite Training
Project Solution Capability: Offers graphic design, 3D model design, and total project solutions
Application: Villa, Indoor Underfloor Heating
Design Style: Modern
Origin: Mainland China
Customization: OEM customization available

Package list:
1 * Hydraulic Separator
1 * Inner Box
1 * Master Carton (for quantities of 5 sets or more)

Note:
1. Please allow 1-5mm error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
