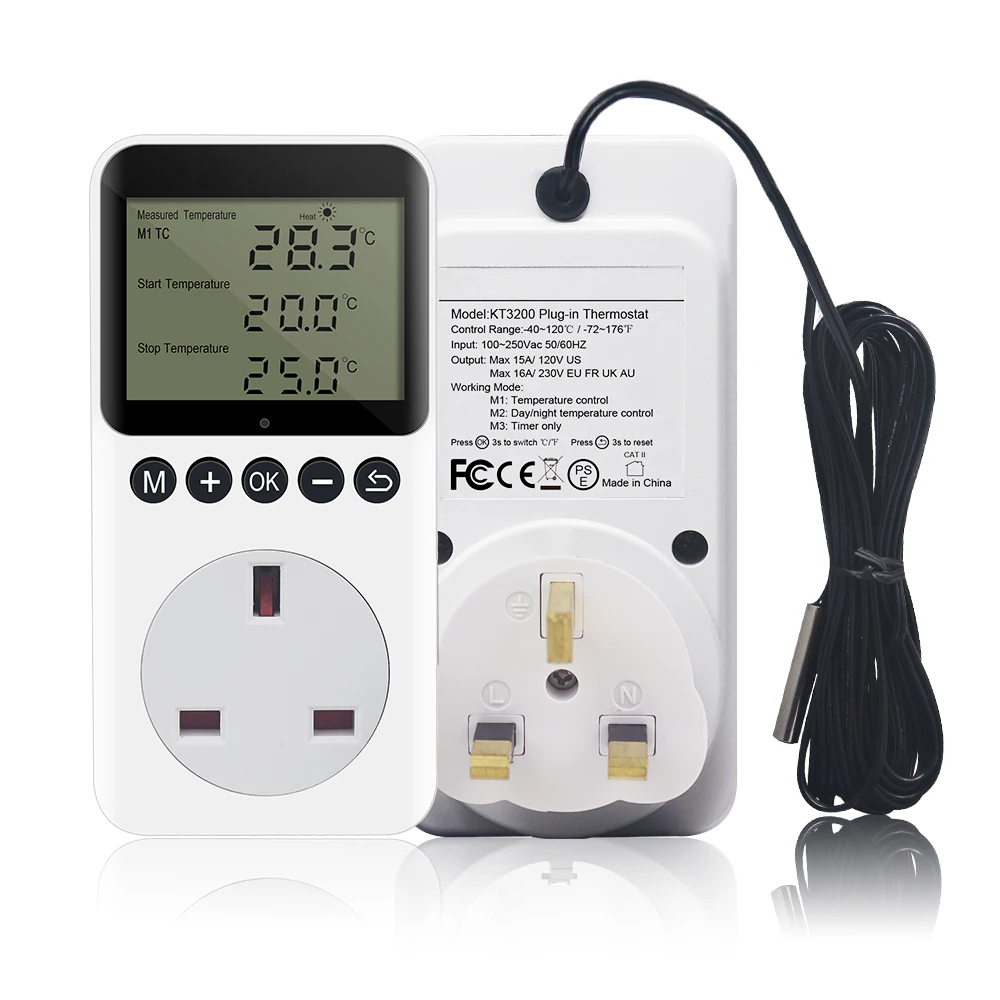

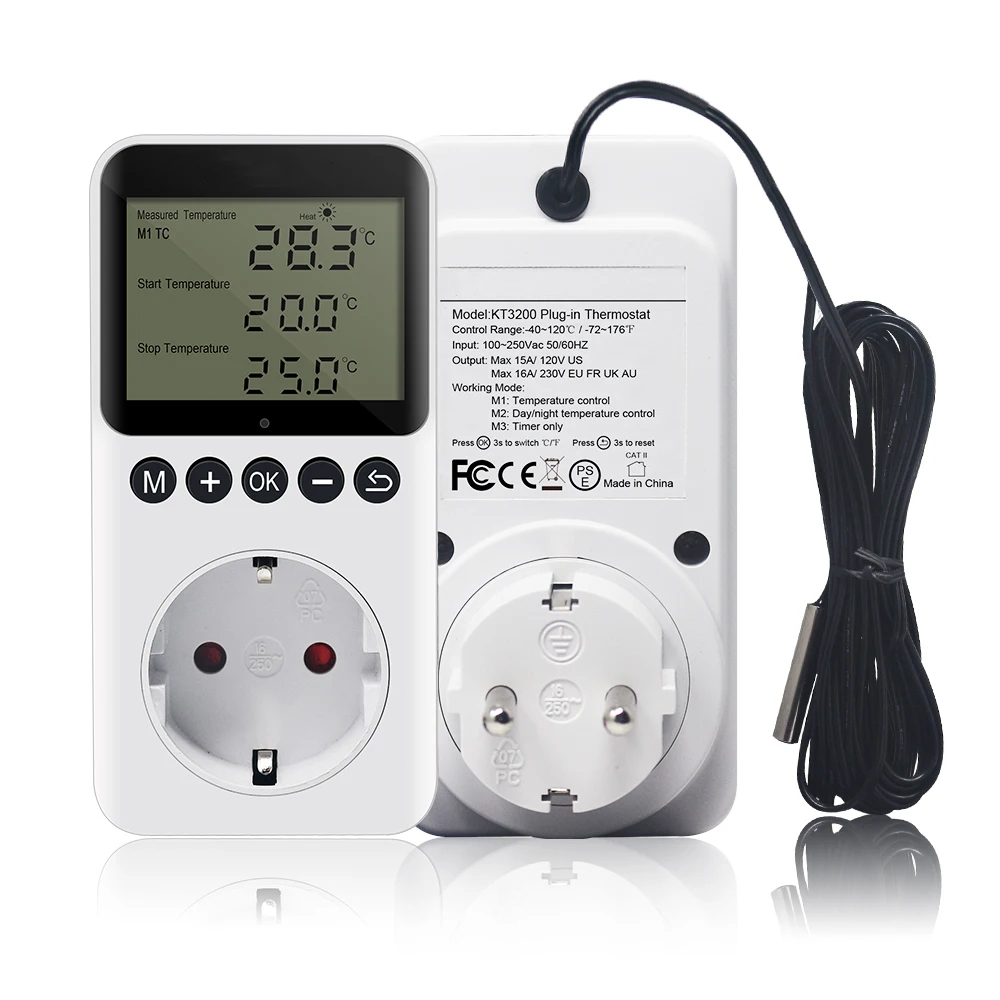

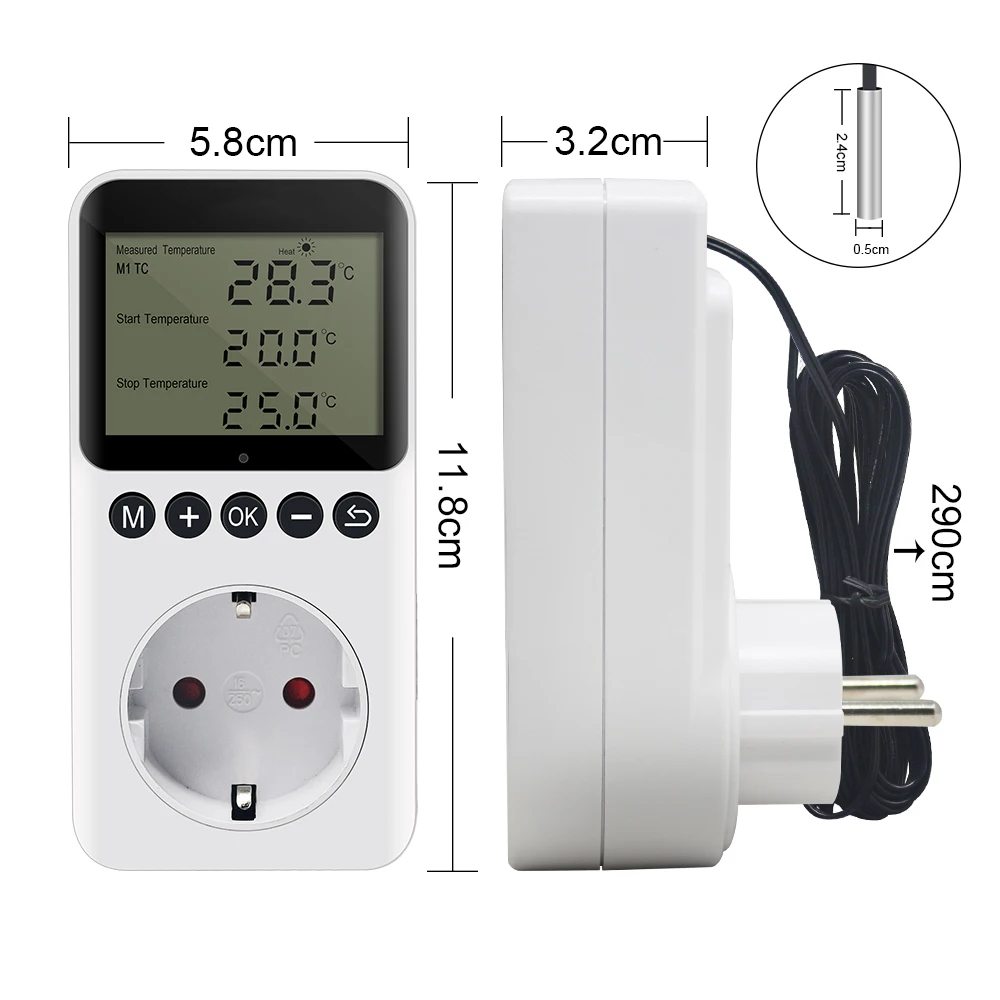

KT3200 Timer Socket Thermostat Digital Temperature Controller Heating Cooling Day Night Control EU/UK/FR/AU Plug Energy Saving

1. The KT3200 temperature controller displays the measured temperature and sets the start and stop temperature to control the heating or cooling equipment.

2. It also has a time function to set day and night temperature independently.

3. It is widely used in intelligent control such as heating, refrigeration, brewing, reptiles, aquaculture greenhouse, home life, and many other places.

Specifications:

Power supply: 100~250VAC 50/60Hz

Temperature control range: -40℃~120℃/-72℉~176℉

℃/℉ Switchable

Setting time: 0-24h/Daily cycle timer

Control accuracy: ±1℃/±1℉

Sensor: NTC10K/B3950

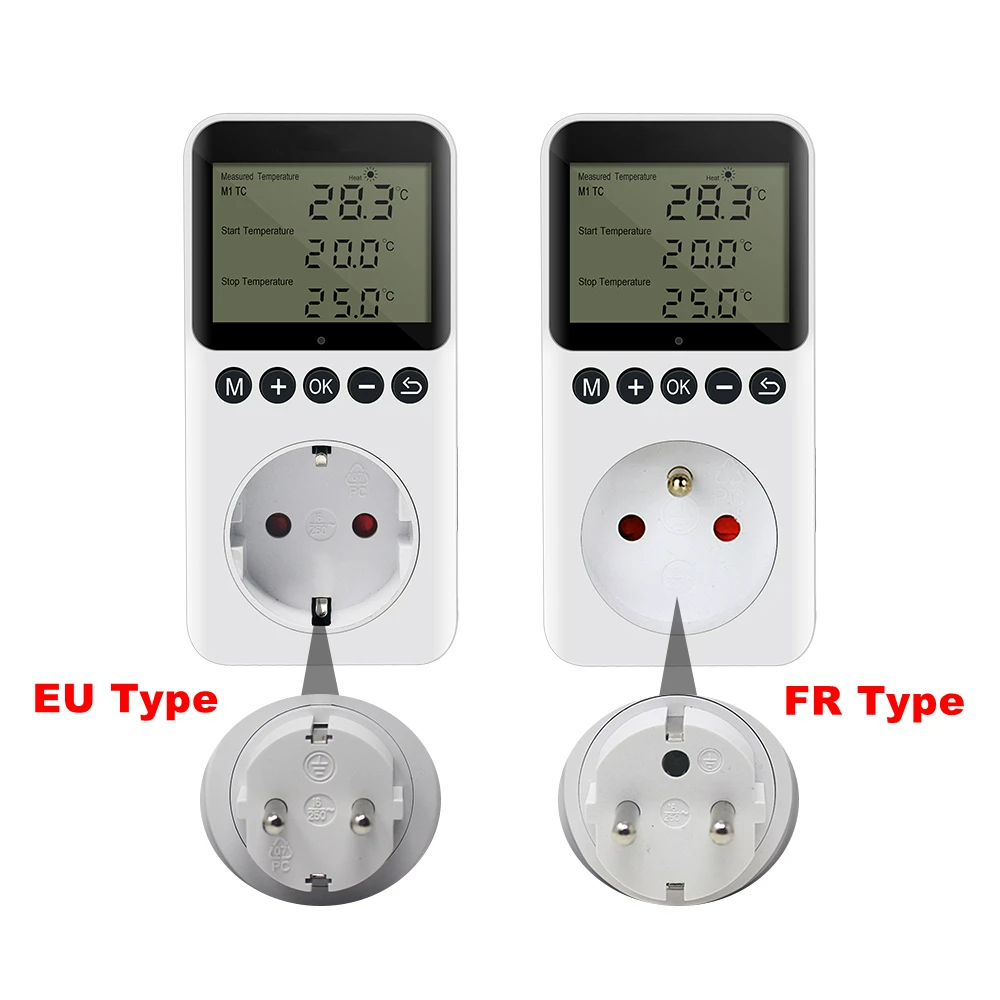

Output: Max 16A/230V EU/UK/FR/AU Plug

Max 15A//120V US plug

Reset function

Temperature calibration function

Memory function when power off

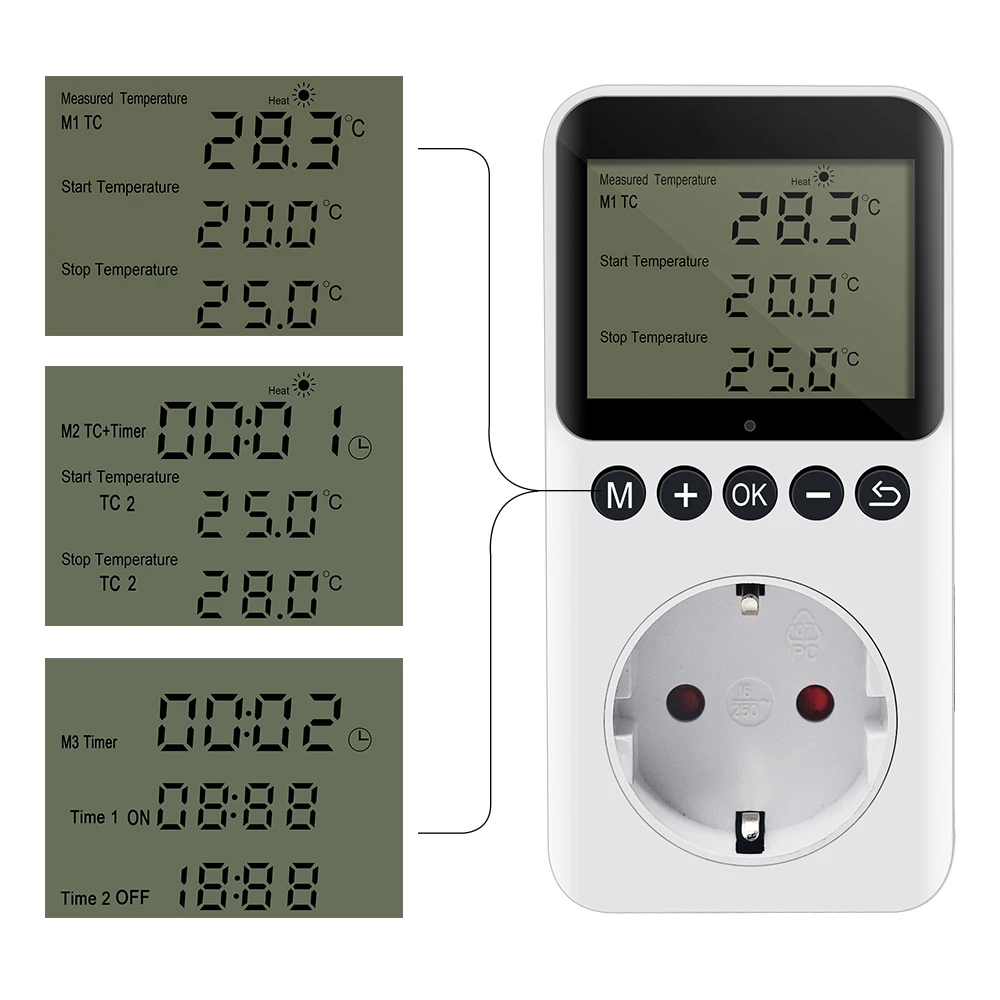

Working Mode: M1 temperature control mode , M2 temperature control+timer , M3 Timer can be chosen

Memory function:

• All data except the clock will be saved after power failure.
• The clock needs to be reset when power is on.
• If KT3200 works in M1 mode before power failure, it will automatically resume operation after power is on again.
• If KT3200 works in M2 or M3 mode before power failure, you will need to reset the clock first when power is on again.

M1 TC: Temperature control mode
Set the start and stop temperature Heating mode: start temperature < stop temperature Cooling mode: start temperature > stop temperature.

M2 TC+Timer: Day/Night temperature control
Set the clock, time1, time 2, TC 1, TC 2 In each 24hours, Daytime (time1~time2) run TC1 program Night time (time2~time1) run TC2 program

M3 Timer: 2 timer period timer only
Set the clock, time1, time2

Time1~Time2: Output on Time2~Time1: Output off
