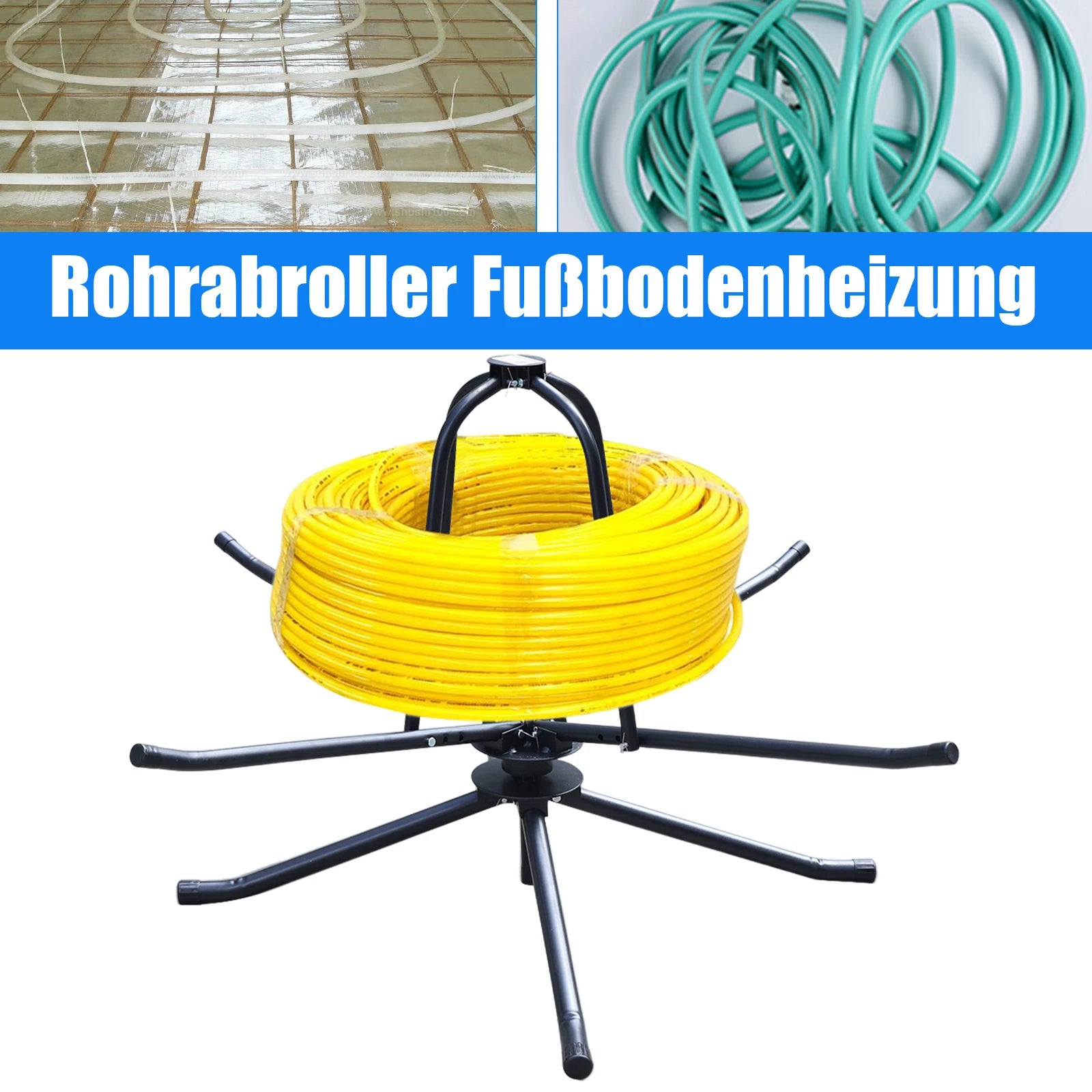

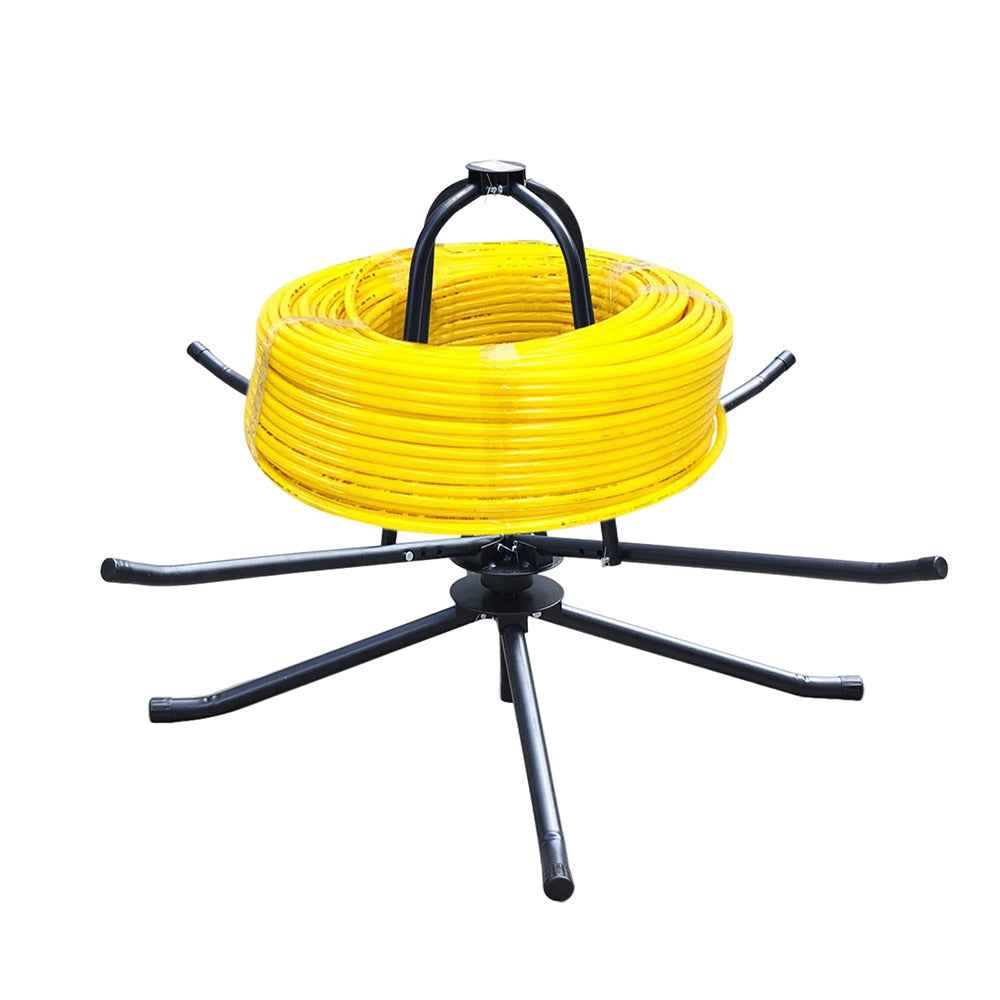

Pipe Reel Dispenser for Underfloor Heating(Max 175kg, Double Bearing)
Streamline your floor heating installation with our robust Pipe Reel Dispenser, crafted from durable q235 Iron to support loads up to 175 Kg. The foldable design offers unmatched convenience, allowing for easy transport and storage in tight spaces. Plus, with a user-friendly setup that doesn't require additional tools, you can start your project with speed and efficiency.
Description:

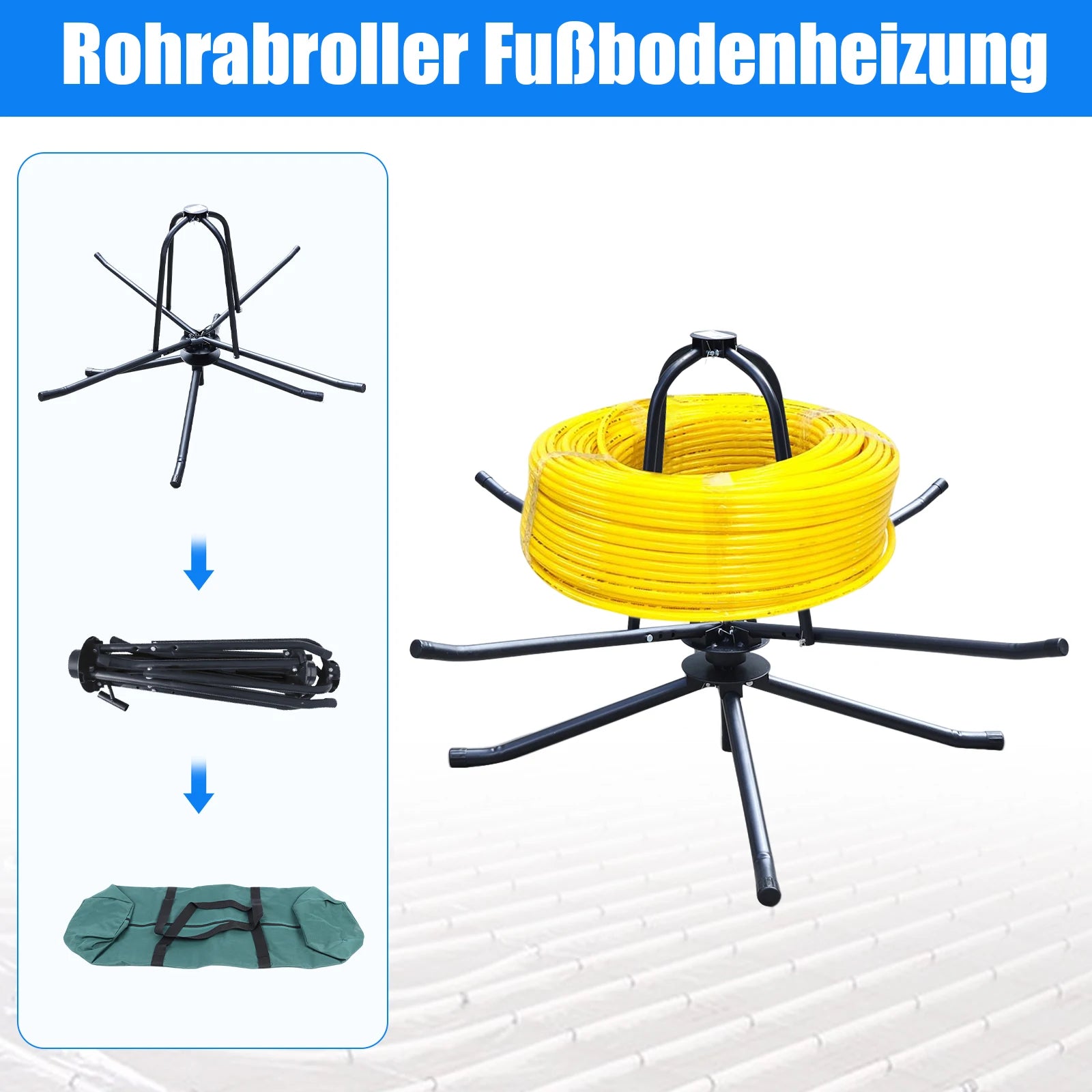

Convenience and Space-Saving Design - The Folding Floor Heating Pipe Release Device is designed for ultimate convenience, featuring a foldable structure that saves space when not in use. Its compact folded size of 75x20x20cm makes it easy to store and transport, perfect for professionals on the go or homeowners with limited storage space.
Labor-Saving Functionality - This device simplifies the process of laying floor heating pipes, reducing the need for multiple workers and saving on labor costs. It's engineered to be operated by a single person, making the installation of floor heating systems more accessible and efficient.

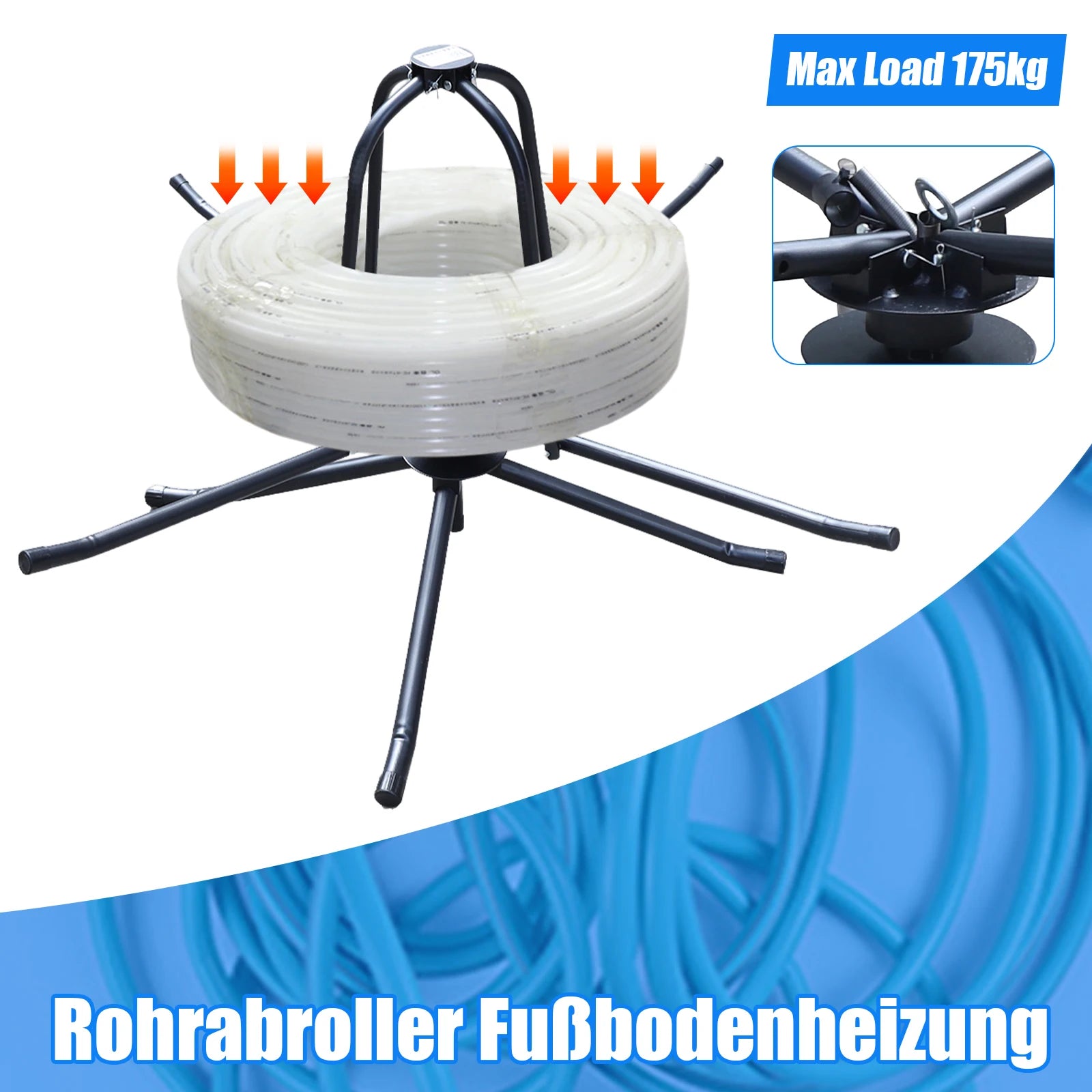

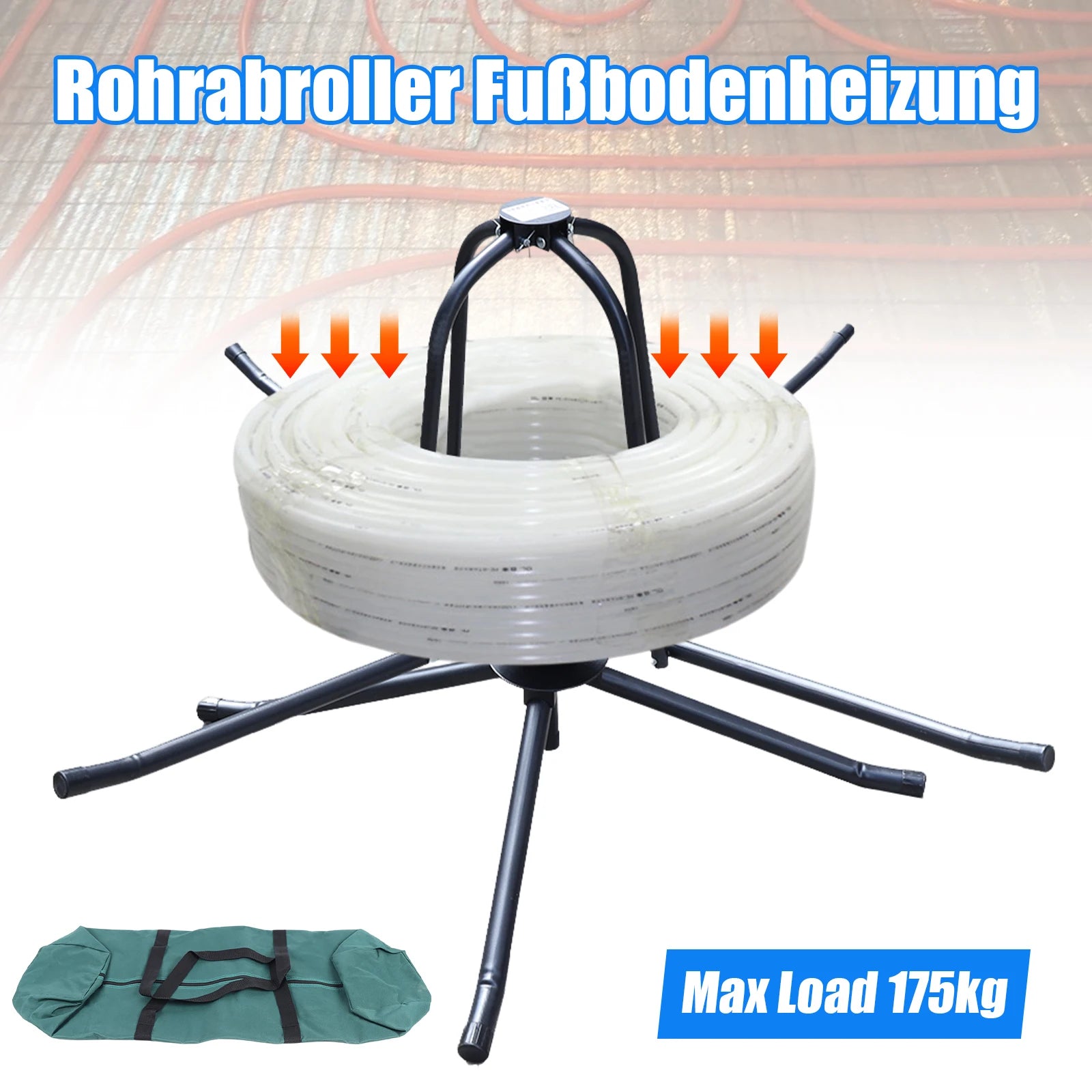

Durability and Stability - Constructed with q235 Iron, the Pipe Reel Dispenser is built to last, with a load capacity of up to 175 Kg. The inclusion of a stand with four legs enhances its stability, ensuring that the device remains steady even when handling heavy rolls of heating pipes.

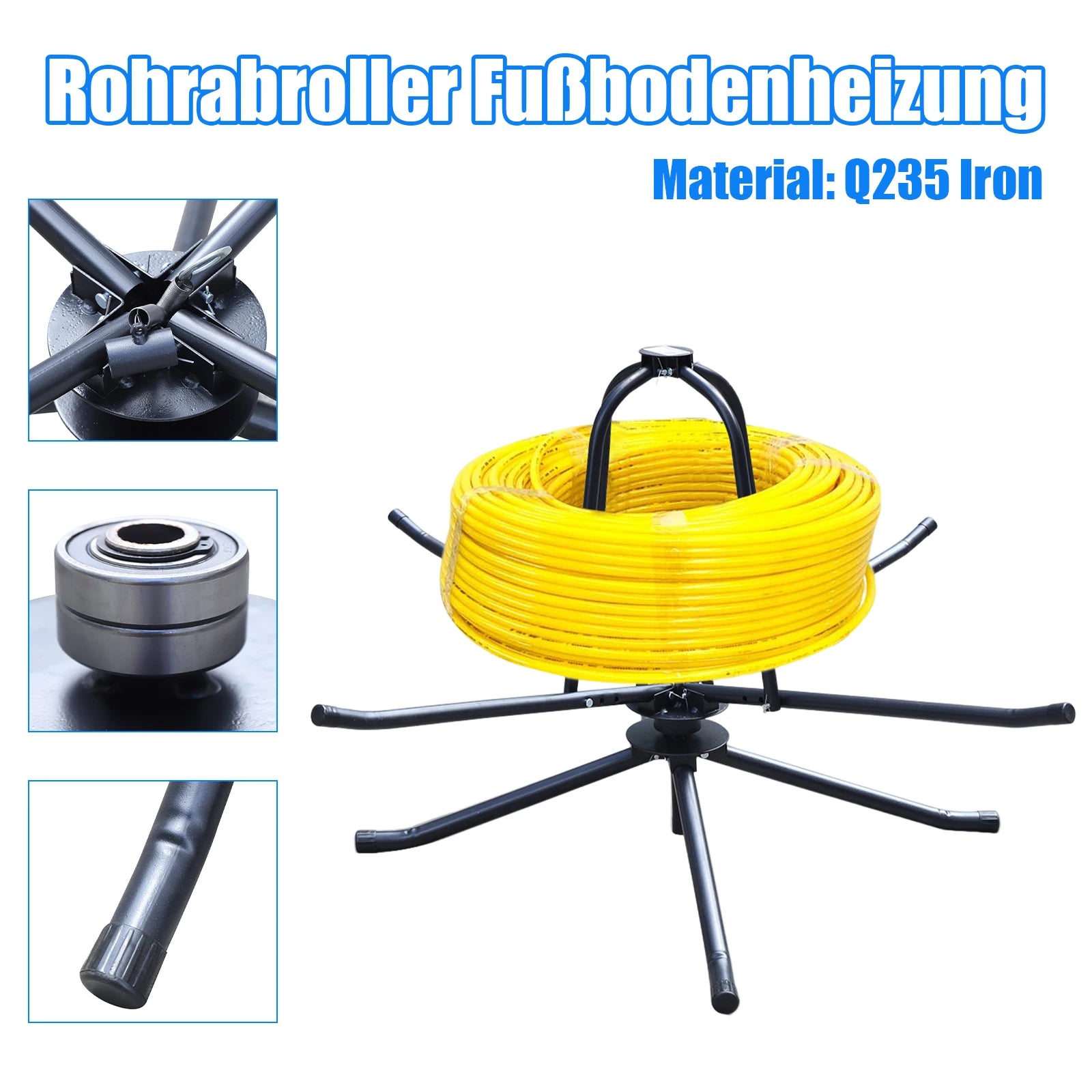

Quality Construction - The use of q235 Iron and double bearings in the Pipe Reel's construction promises not only durability but also smooth operation. The small elbow, with a diameter of 20mm and a thickness of 1mm, along with the base frame tube and flat bracket, are designed to withstand the rigors of pipe laying.
Specifications:
Colour: Black
Material: q235 Iron
Load Capacity: Max 175 Kg
Weight: 8kg
Colour: Black
Material: q235 Iron
Load Capacity: Max 175 Kg
Weight: 8kg
Small Elbow: Diameter 20mm/0.79in, Tube Thickness 1mm/0.04in
Base Frame Tube: Diameter 25mm/0.98in, Tube Thickness1.2mm/0.05in
Flat Bracket: Diameter 32mm/ 1.26in, Tube Thickness 1.6mm/0.63in

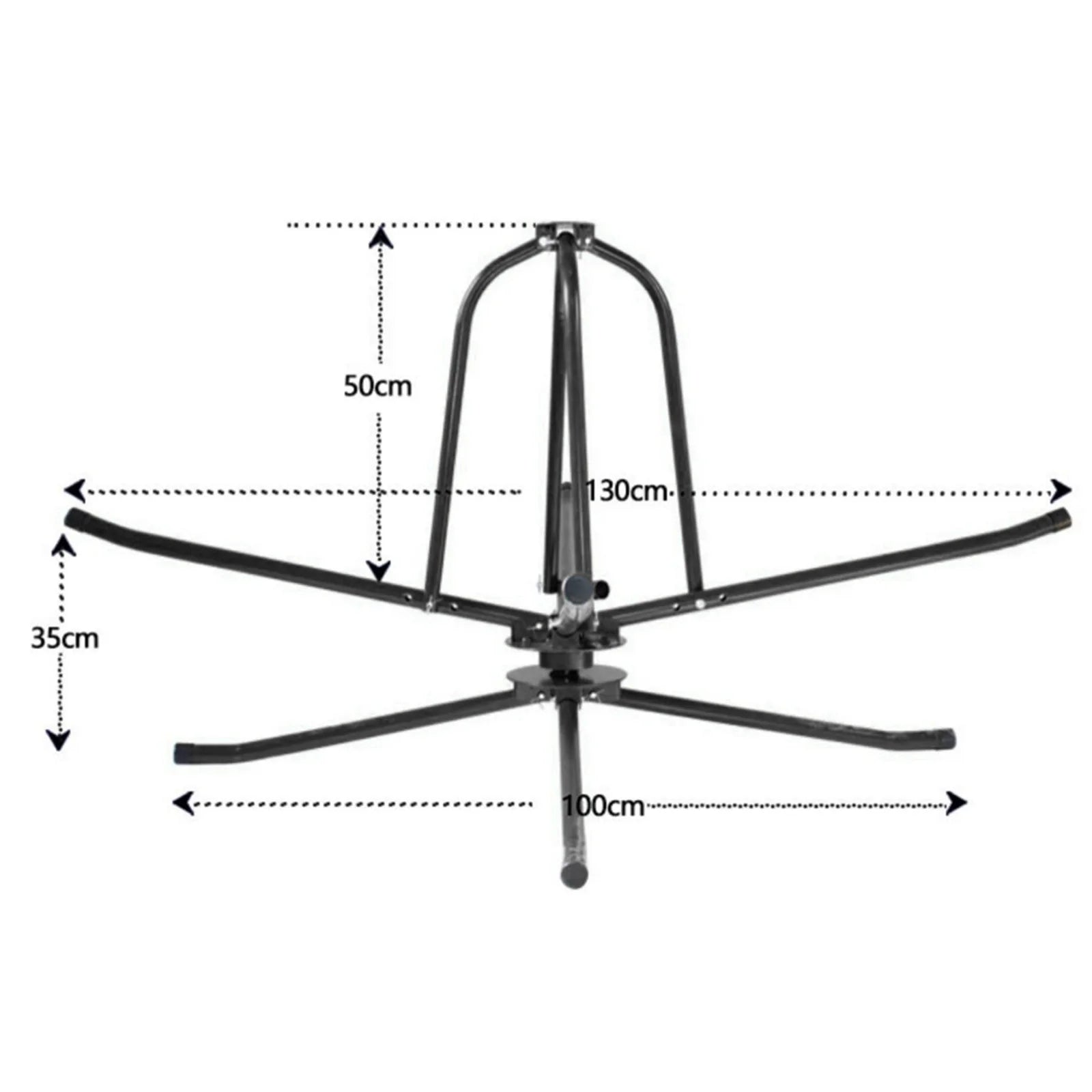

Folded Size: 75x20x20cm/29.53x7.87x7.87inch
Package list:
1 * Pipe Reel Dispenser
Note:
1. Please allow a 1-5mm error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
