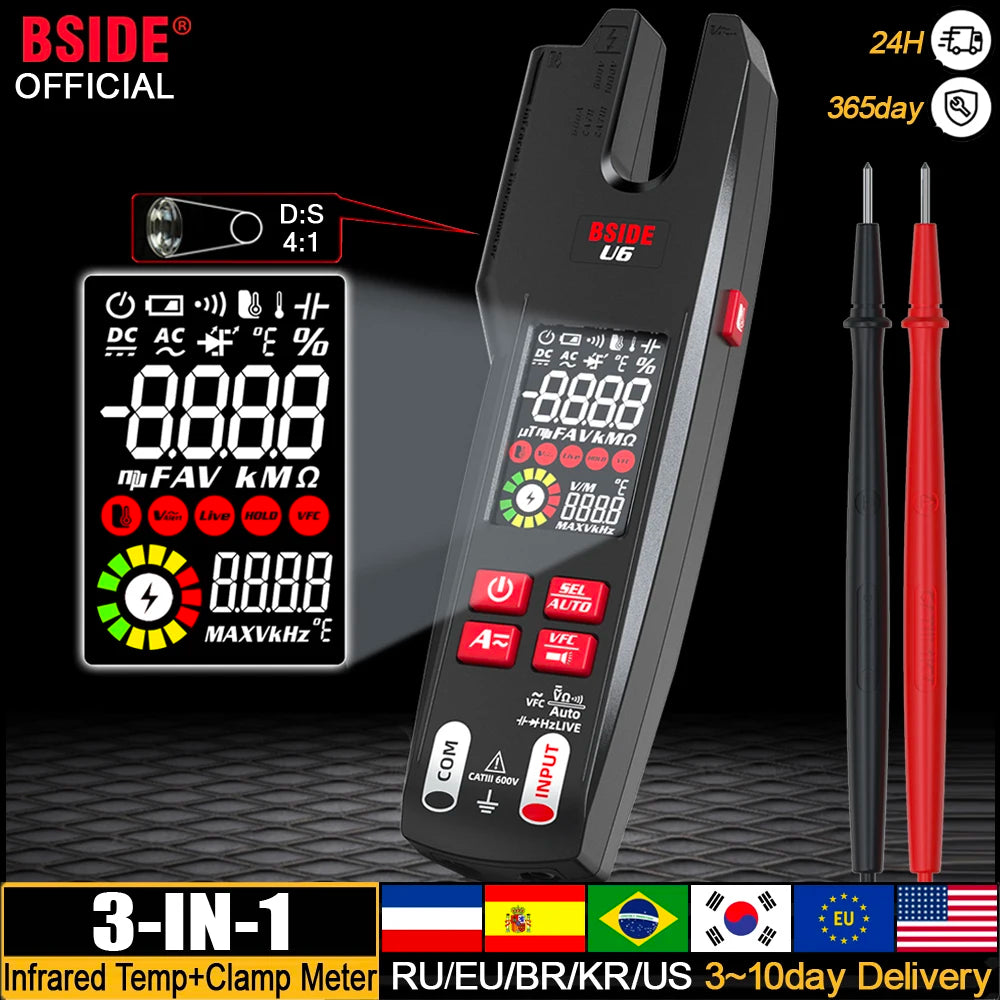

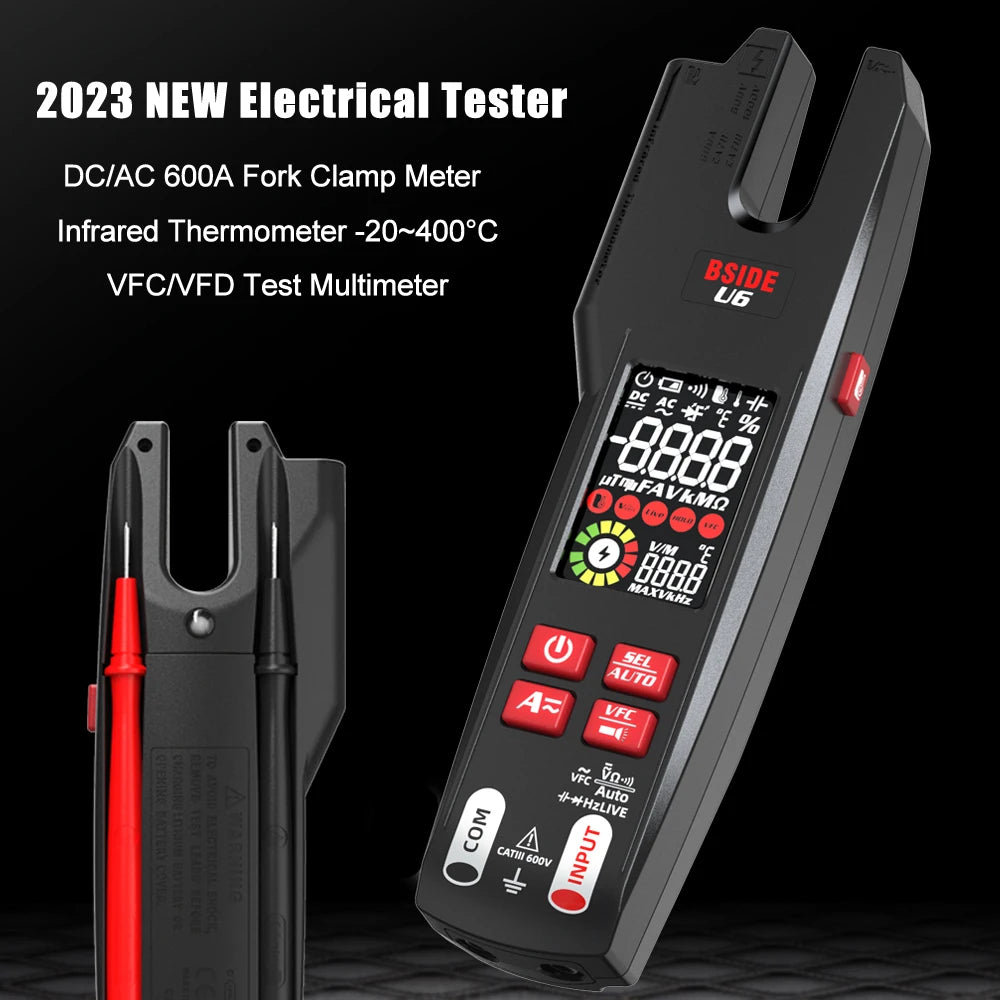

Professional Digital Clamp Meter U6 Fork 600A Ammeter Pliers T-RMS DC AC Current OpenJaw Electrical Tester Auto Multimeter

BSIDE U6 Fork Digital Clamp meter Professional OpenJaw DC/AC 600A Ammeter Pliers Automatic Multimeter VFC/VFD Voltage Current Electrical Tester With Infrared Thermometer.

Description:

A new generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter.

OpenJaw design is convenient for current testing and maintenance.

Innovative dual power supply mode for longer power supply.

It has intelligent and professional measurement functions and Infrared temperature.

Full function with gear display, analog bar multiple display It is the best choice for professional electrician, engineer, electronic enthusiast, or family use.

Professional DC/AC 600A Clamp Meter Ammeter Plier with infrared thermometer test.

Maximum display 9999 Counts.

EBTN Color Large HD LCD.

True RMS, Auto/Manual Range.

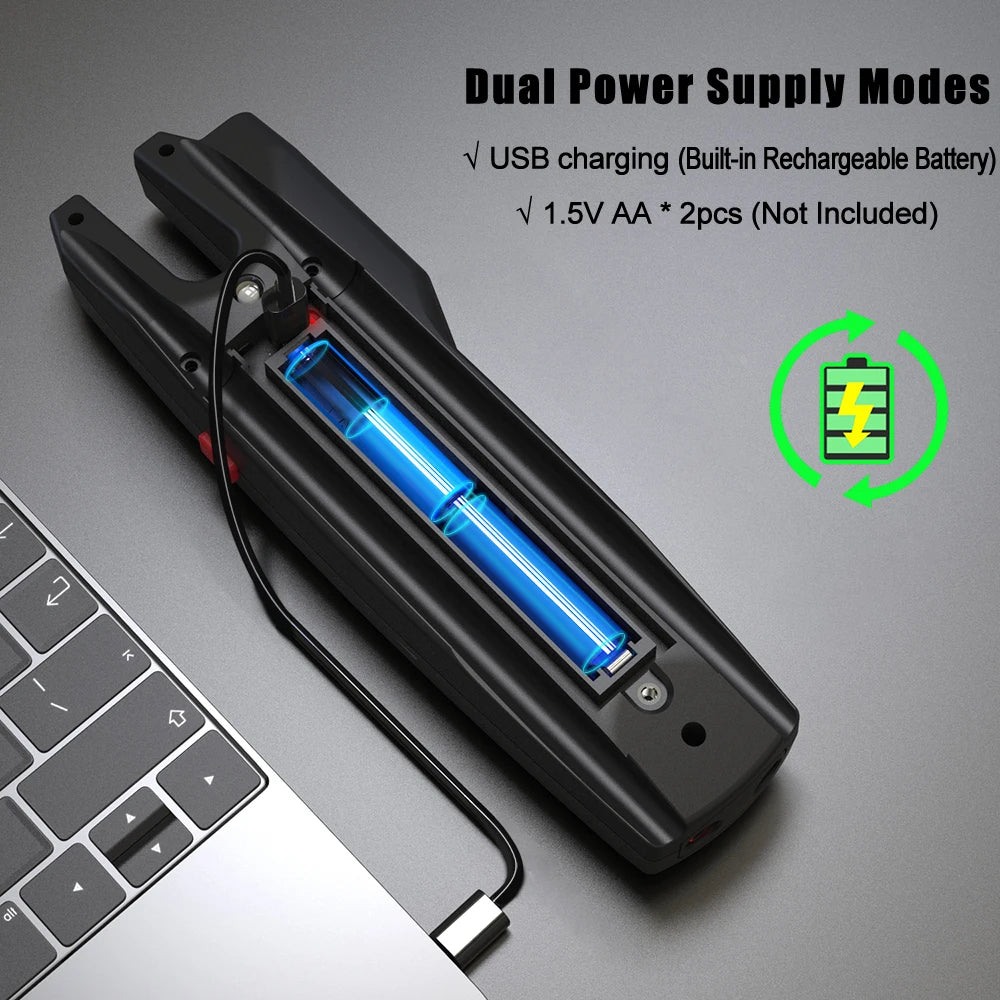

Support dual-mode power supply:

1. Built-in Rechargeable Battery (USB charging)

2. 1.5V AA battery*2 (Not included)

Electrical amp tester with smart mode for ease of use.

VFC/VFD frequency conversion voltage test.

Oversized body design makes testing safer.

The large pen design card is more convenient with the rear side and side of the fuselage.

Equipped with a high-quality portable cloth bag.

Also can be used as a professional voltage detector with adjustable sensitivity.

Auto range, Auto power off, low battery indication with a flashlight.

CAT111 600 high safety gauge to meet the global test maintenance.

2.4 inches Large EBTN Color HD LCD.

Smart three-line display, clear, effectively eliminates industry pain points.

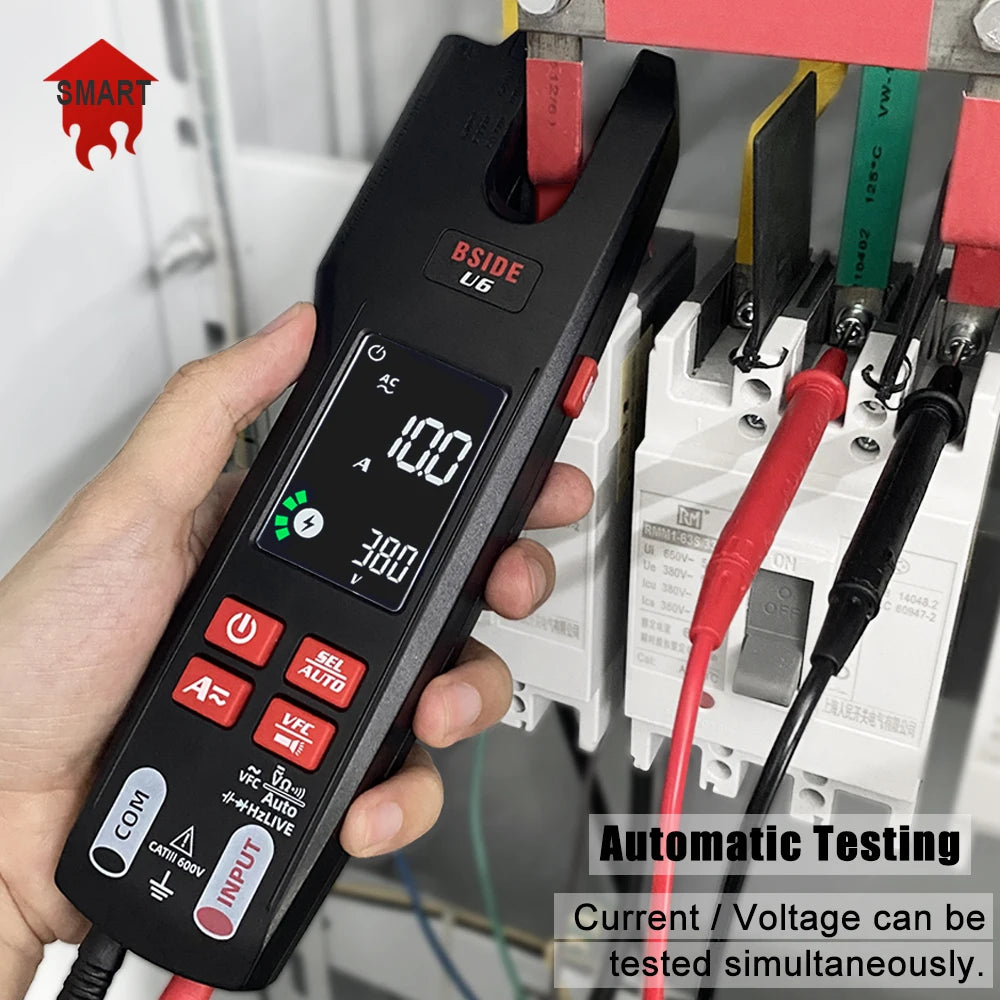

Fork-shaped design, DC AC 600A current measurement.

Easy and accurate OpenJaw current measurement;

Current and Voltage Dual Line Display.

The digital multimeter can check both voltage and current measurements when troubleshooting motors, pumps, or other equipment.

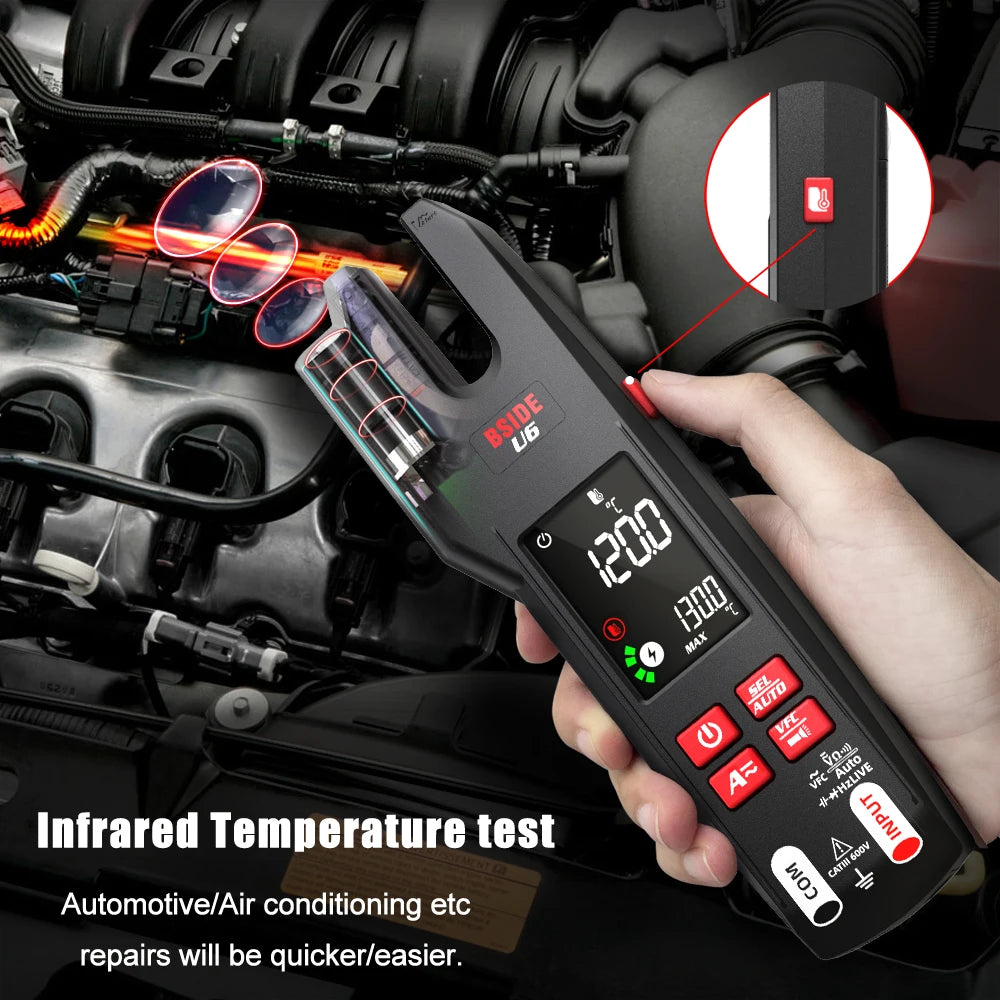

A non-contact Infrared temperature measurement function is additionally added.

It can quickly determine the fault problems of automobiles, air conditioners, motors, etc

Range: -20℃~400℃/-4℉-752F.

Comprehensive testing capabilities for more use cases.

Specifications:

Display: 9999 counts

DC current: 1-600A 0.1A ±(2.5%+5 counts)

AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)

DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)

AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)

VFC/VFD voltage: Yes.

Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)

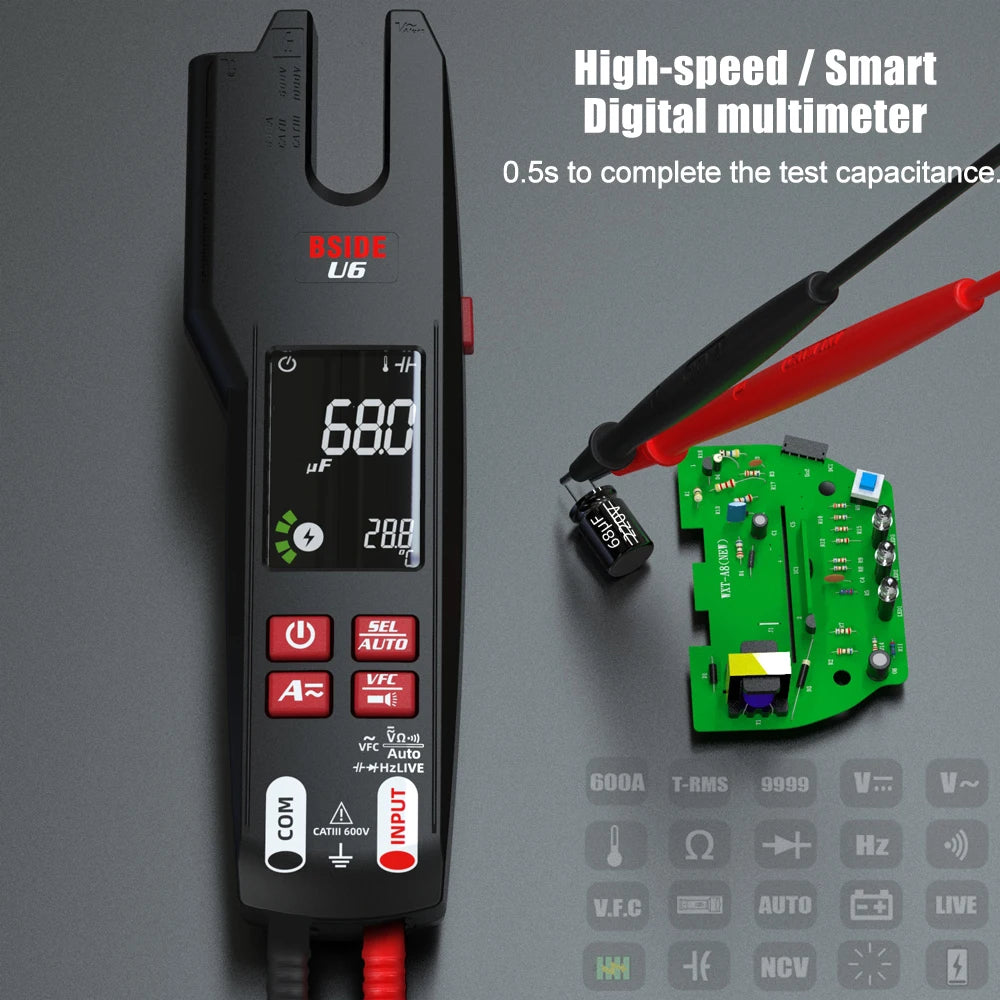

Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)

Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)

Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)

Diode: Measure diodes within 2.0V

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

Temperature: 0-50℃/32℉-122℉ ±2℃/℉

V-Alert (noncontact voltage detection): Yes

Live wire check: Yes

Power:

1. USB charging (built-in rechargeable battery)

2. 1.5V AA battery*2 (not included)

Size: 210 x 63.7 x 33 mm

Weight: 216g

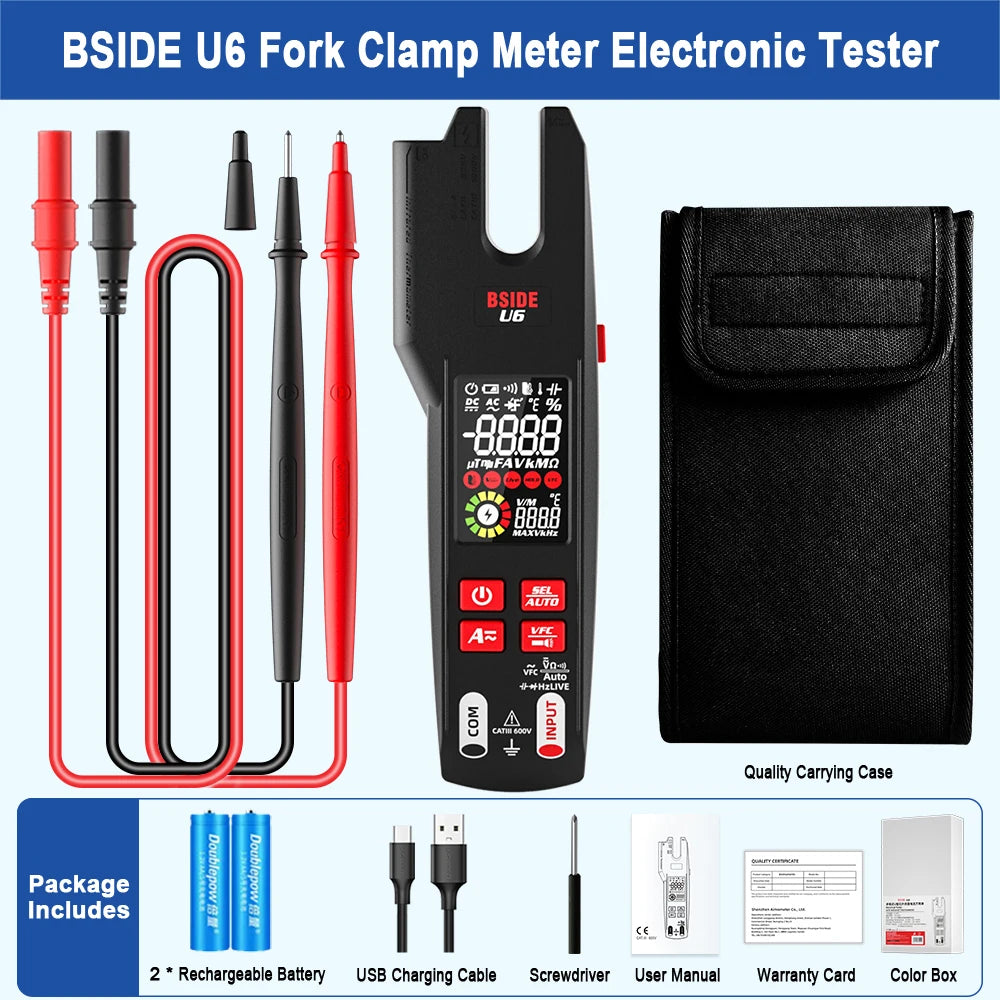

Package list:

1 x BSIDE U6 Electronic tester Clamp meter

1 x Upgrade Test Leads

2 x Lithium Battery

1 x USB Charging Cable

1 x Carrying Case

1 x Screwdriver

1 x User Manual

1 x Color Box

Notes:
1. Please allow 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
