    Stainless Steel Aisi304 Underfloor Heating Supply Manifold with Flow Meter and Return Manifold with Thermostatic Screw G1"*50MM

    €74,87 EUR
     pro
    In stock!
    Color
    Ships From

    Produktbeschreibung

    Elevate Your Comfort with Precision and Durability
    Introducing our top-of-the-line Underfloor Heating Supply Manifold and Return Manifold, expertly crafted from high-quality AISI 304 stainless steel for unparalleled performance and longevity.

    SPECIFICATIONS

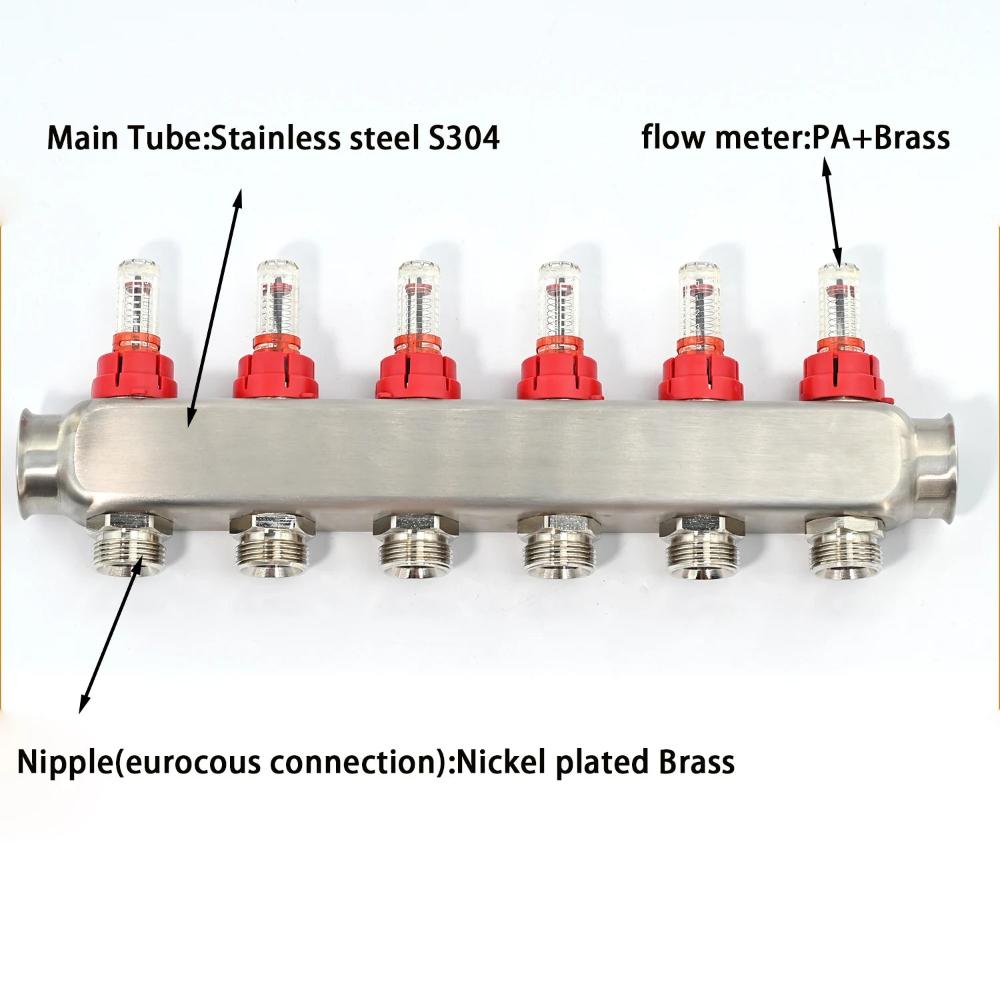

    Main Tube: Stainless steel Aisi304
    Main Size: 1"

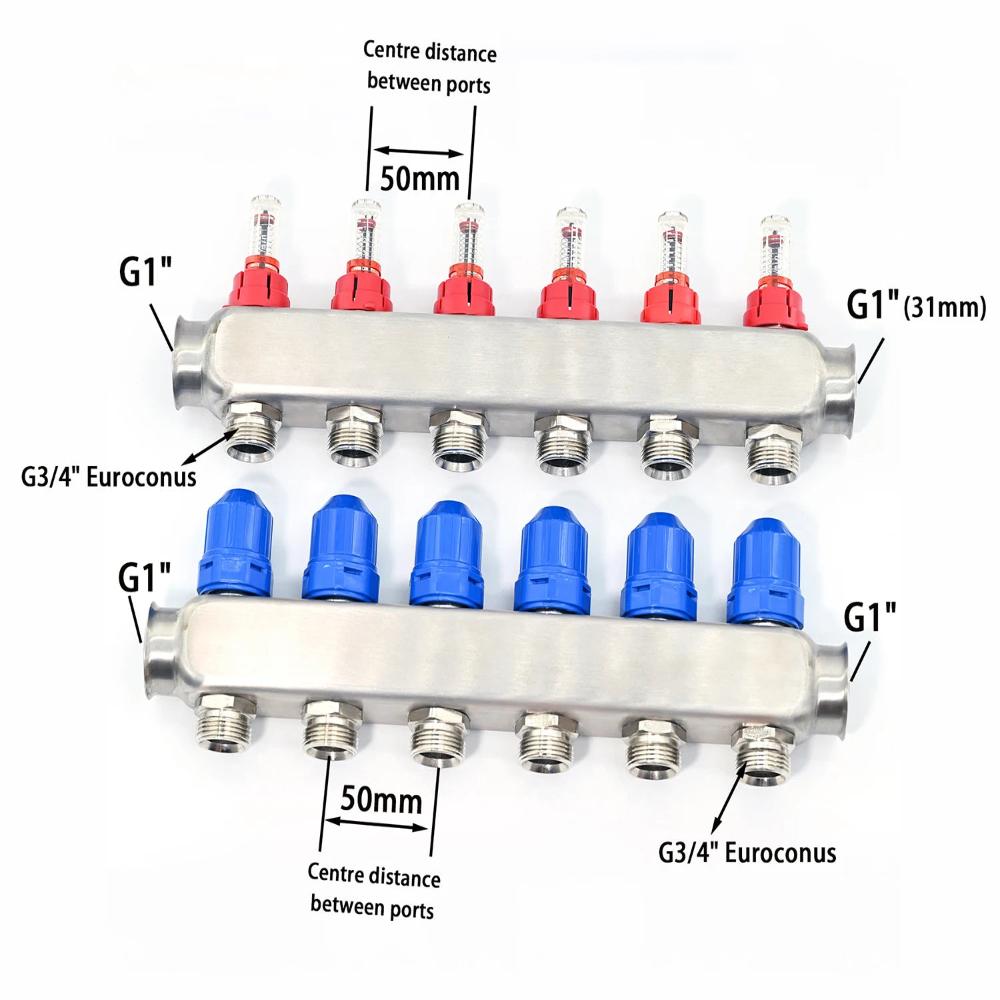

    Centre distance between ports: 50 mm
    100% leak tested: Yes
    Working Pressure: 10bar
    Working Temperature: From -10 ℃ To +95 ℃
    Model Number: PT6110-B
    Material: BRASS
    Hign-concerned Chemical: None
    Certification: CE
    Choice: yes
    semi_Choice: yes

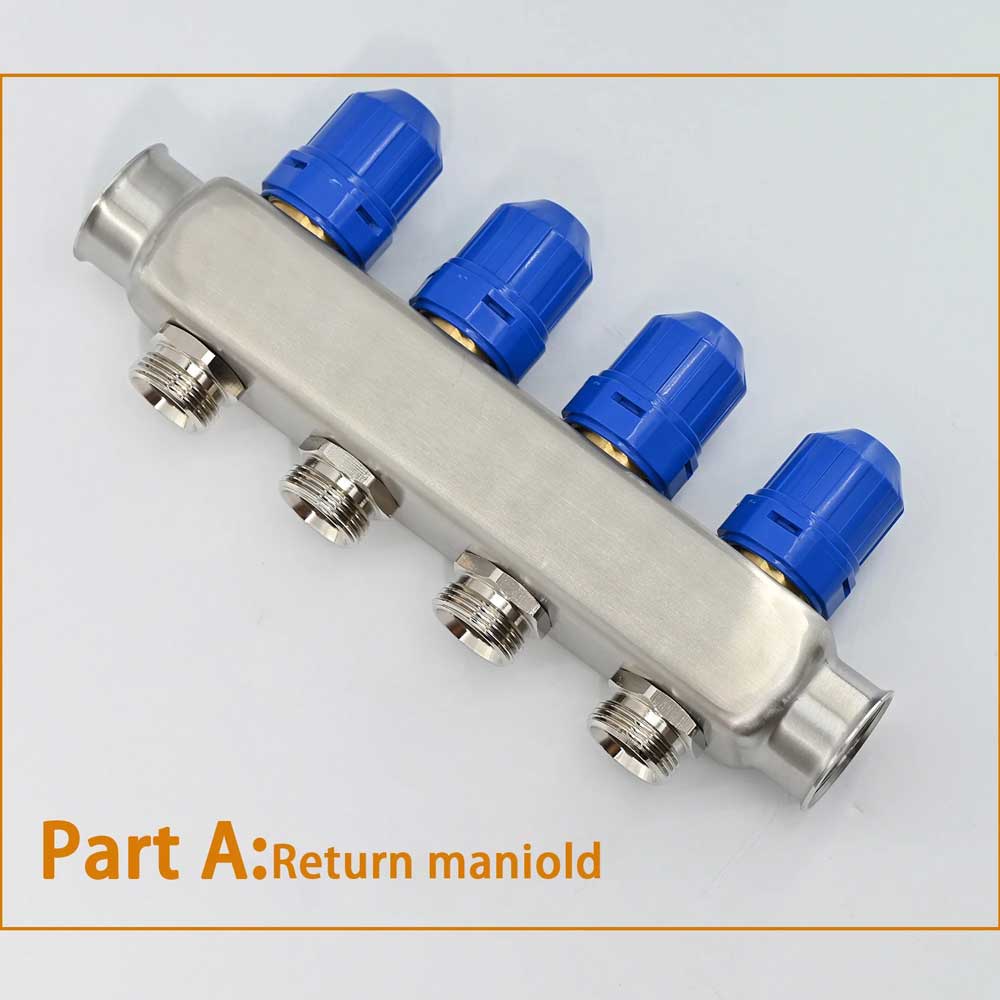

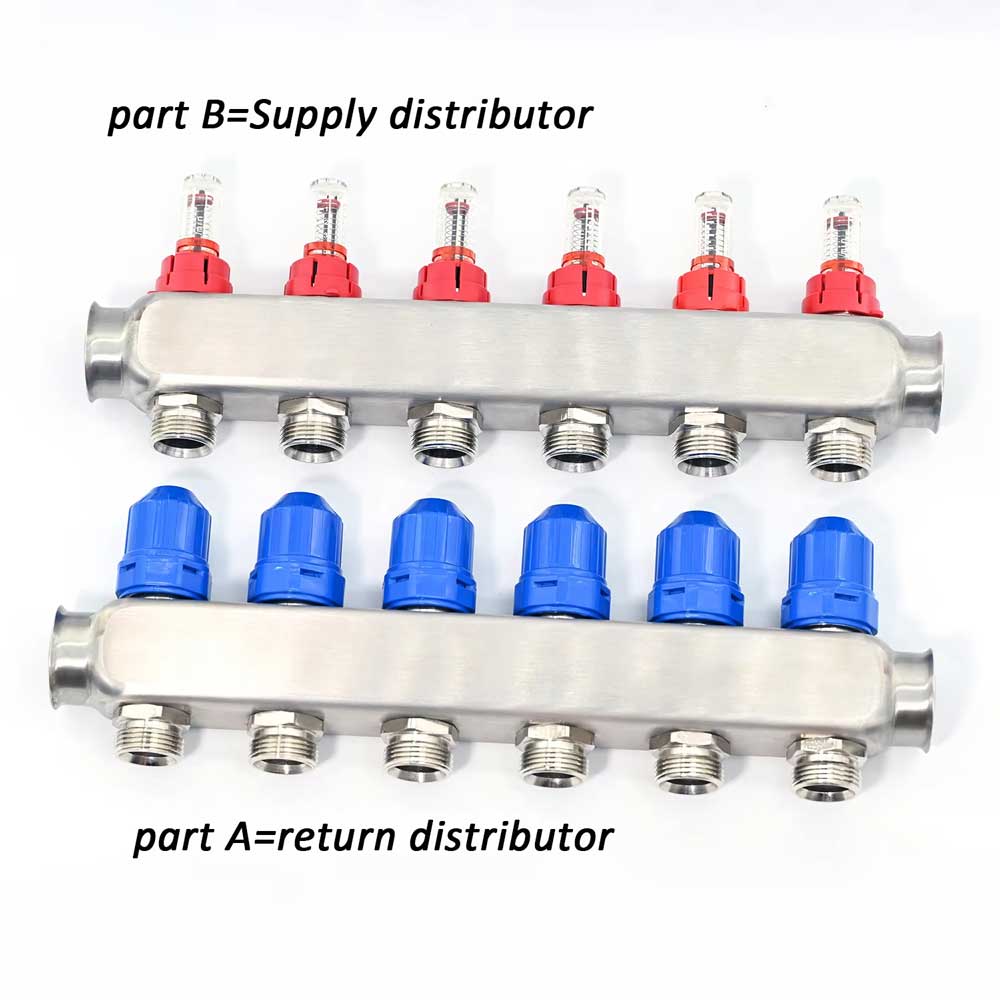

    **Part A=Return Manifold (with possibility of connecting thermoelectric head.)
    Return manifold with thermostatic screw complete with blue manual handle.

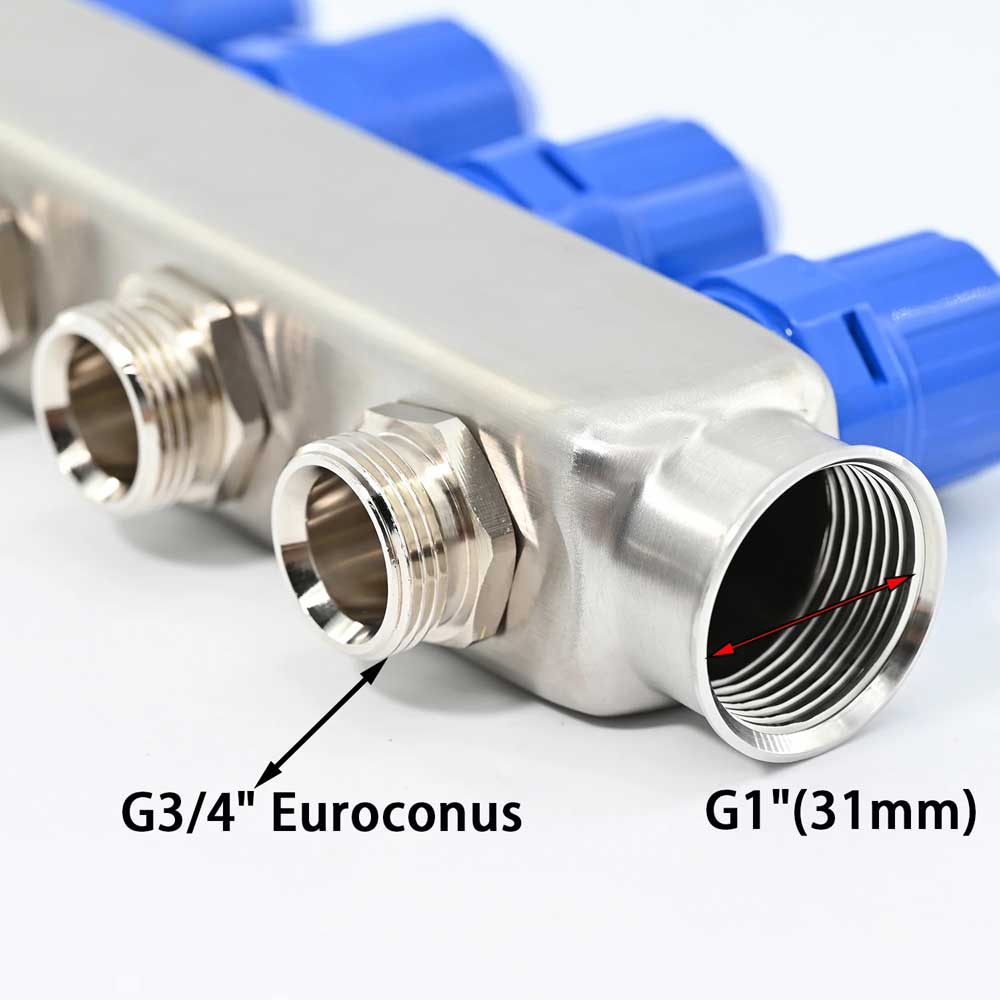

    *G1 primary connection
    *Outlets with connections 3/4″ euroconus.
    *Outlet interaxis: 50mm

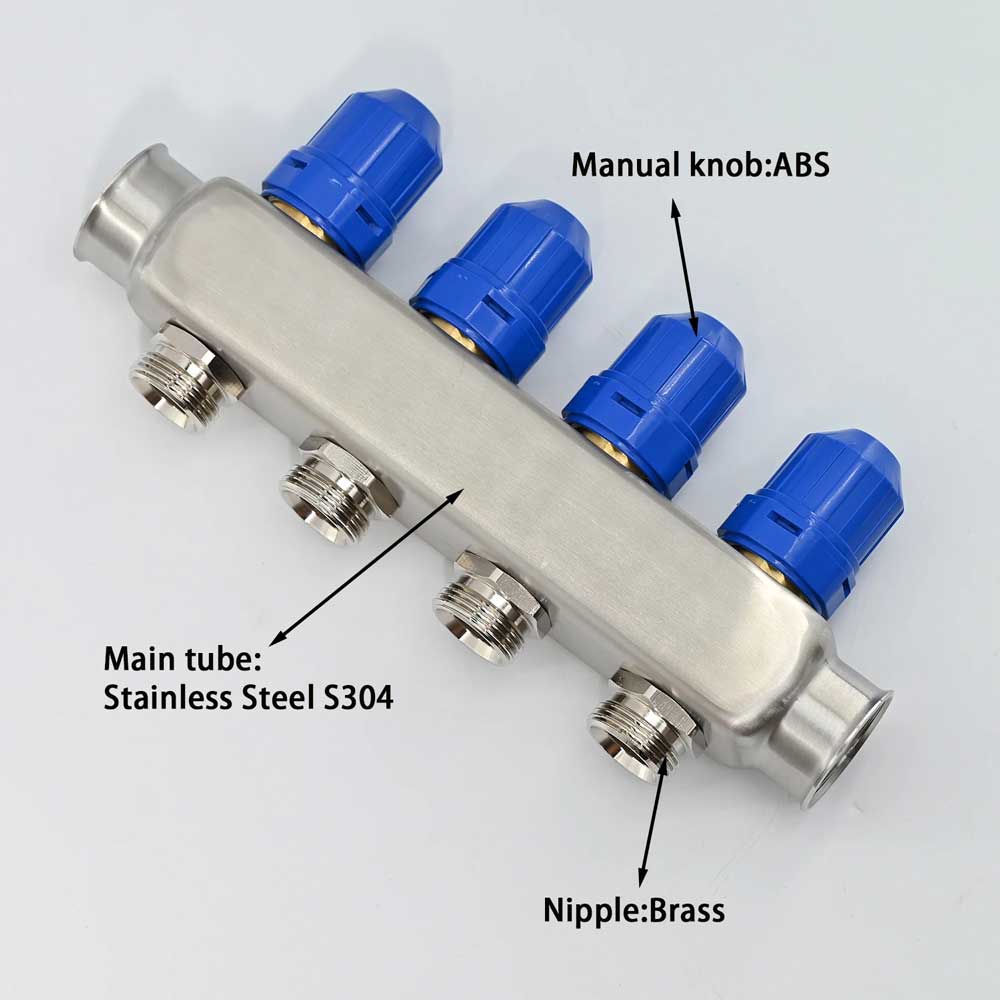

    *Main tube:Stainless steel AISI304

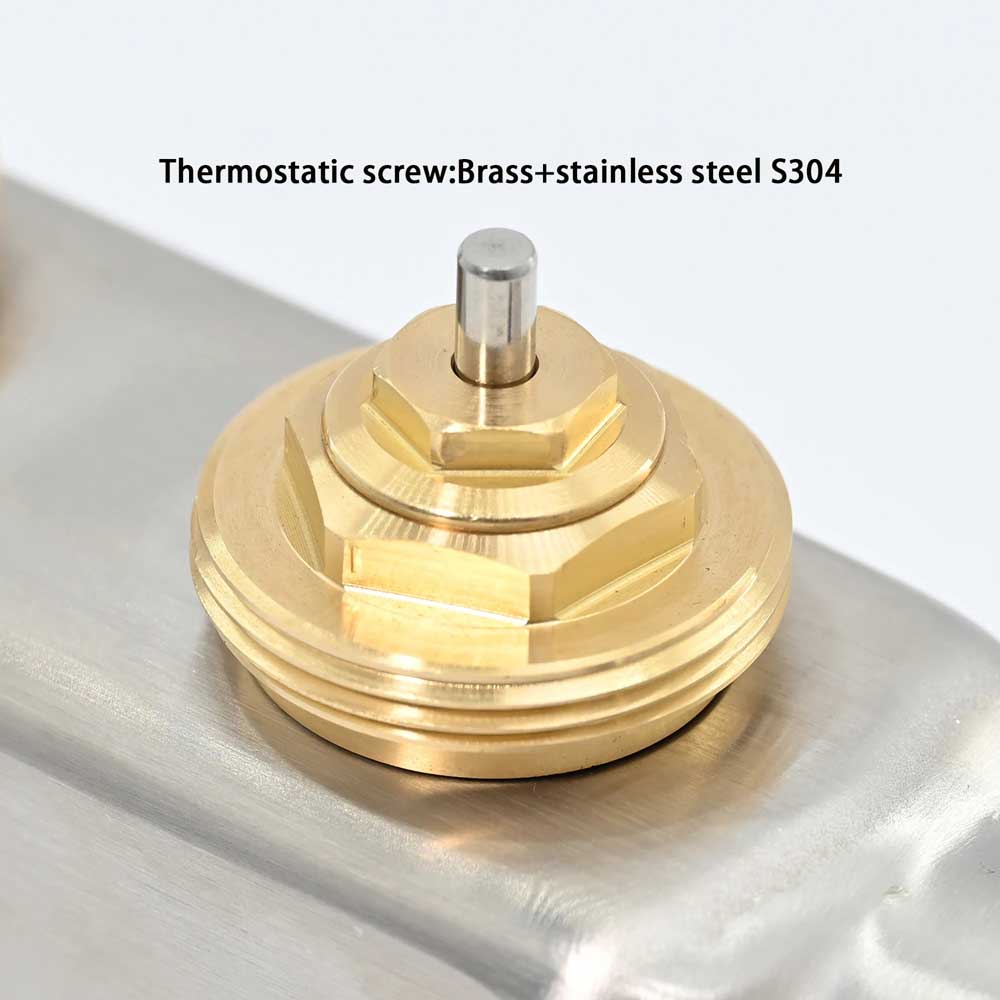

    *Thermostatic screw body:Brass

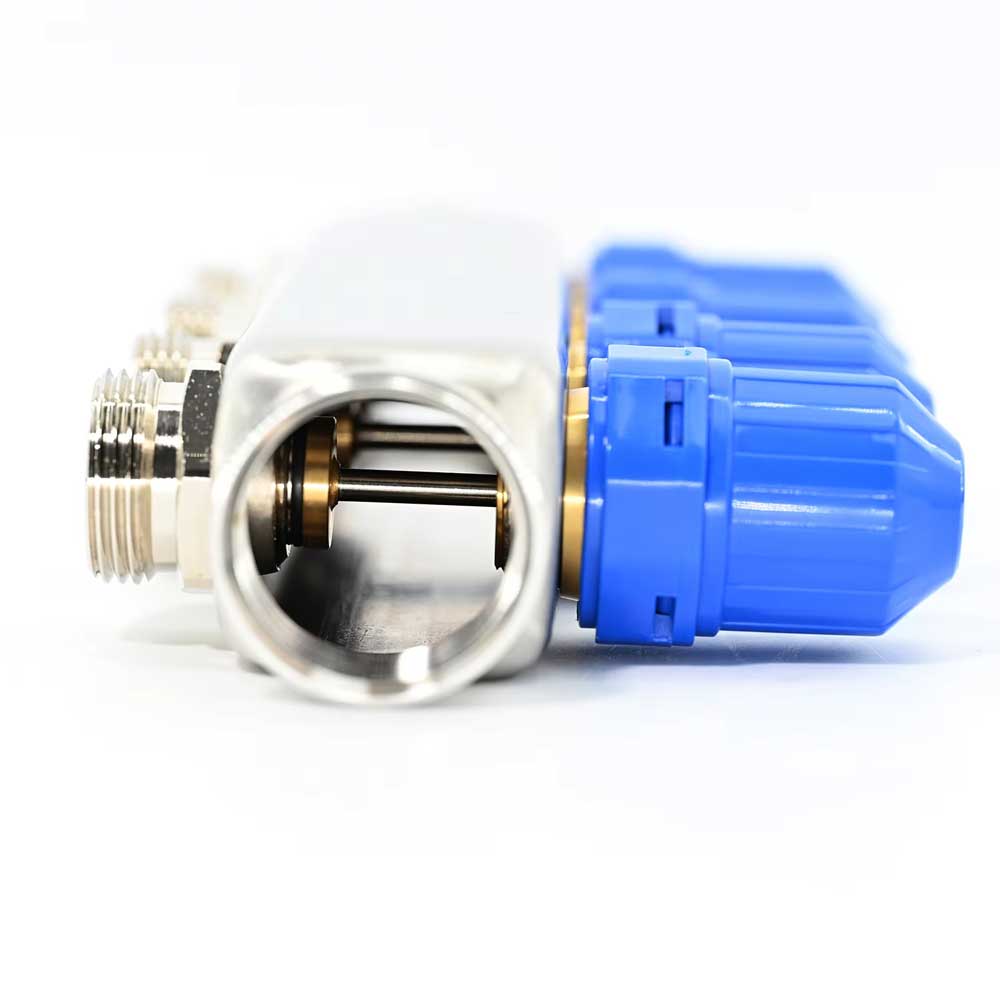

    *Stem of thermostatic screw:stainless steel AISI304
    *Screw with double sealing o-ring

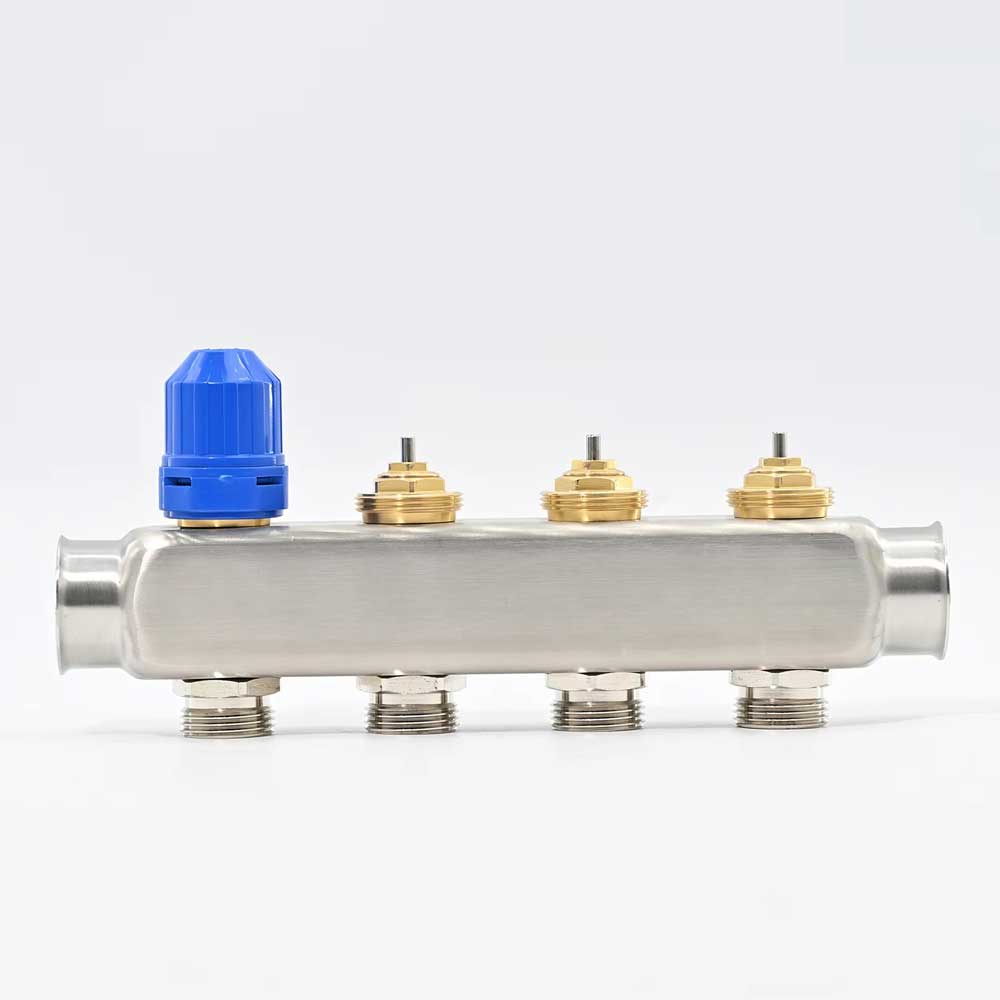

    *Thermostatic screws suitable for use with thermostatic heads and actuators.
    *Adaptable for use with plastic pipe or multilayer pipe thanks to universal adapters 3/4″ EK

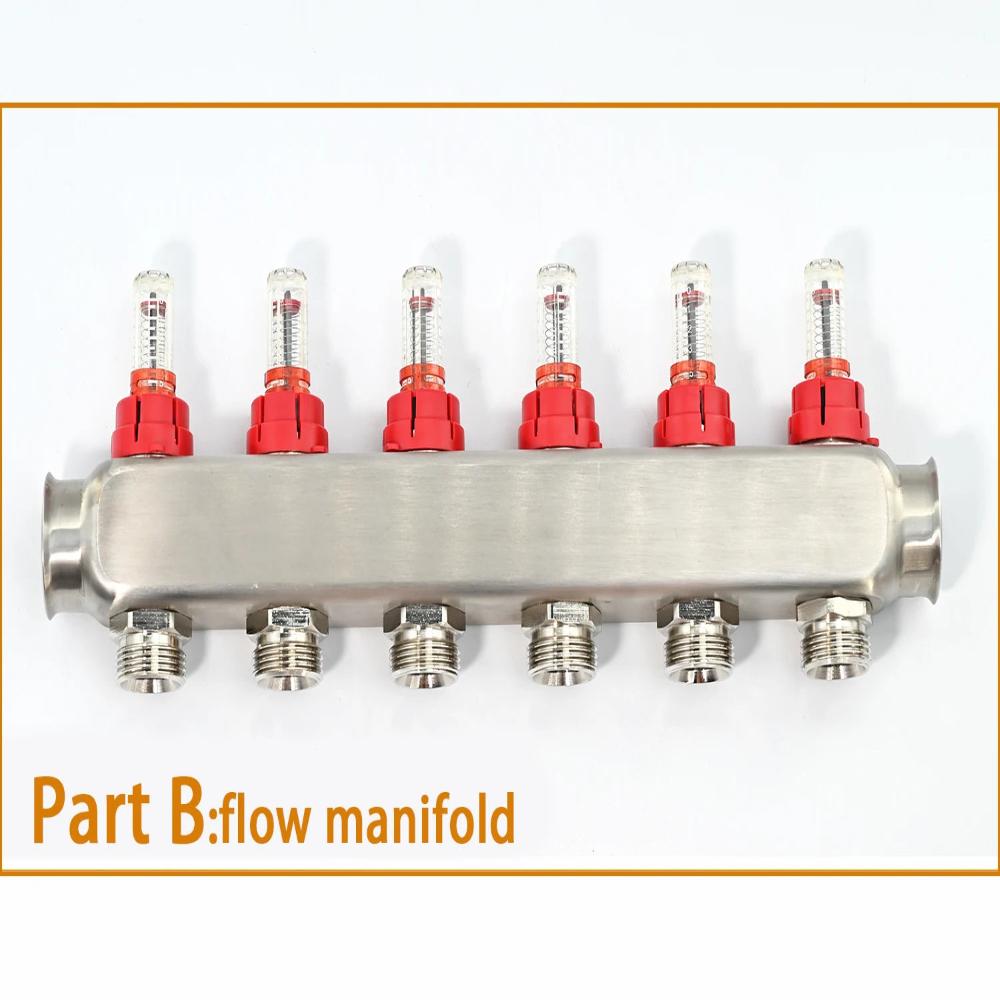

    **Part B=Supply manifold with regulation and balancing flowmeters
    Supply manifold with regulation and balancing flowmeters .
    *G1 primary connection

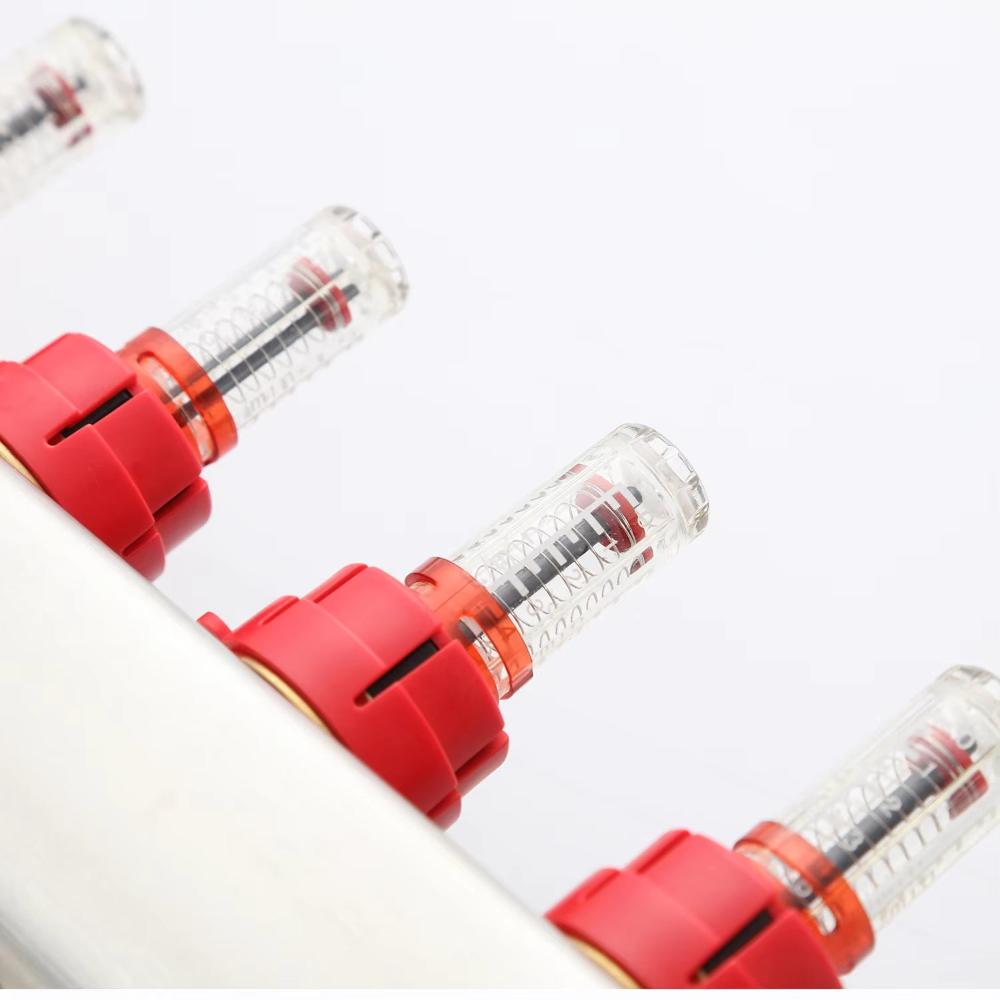

    *Flowmeter scale: 0-5 L/min
    *Outlet interaxis: 50mm

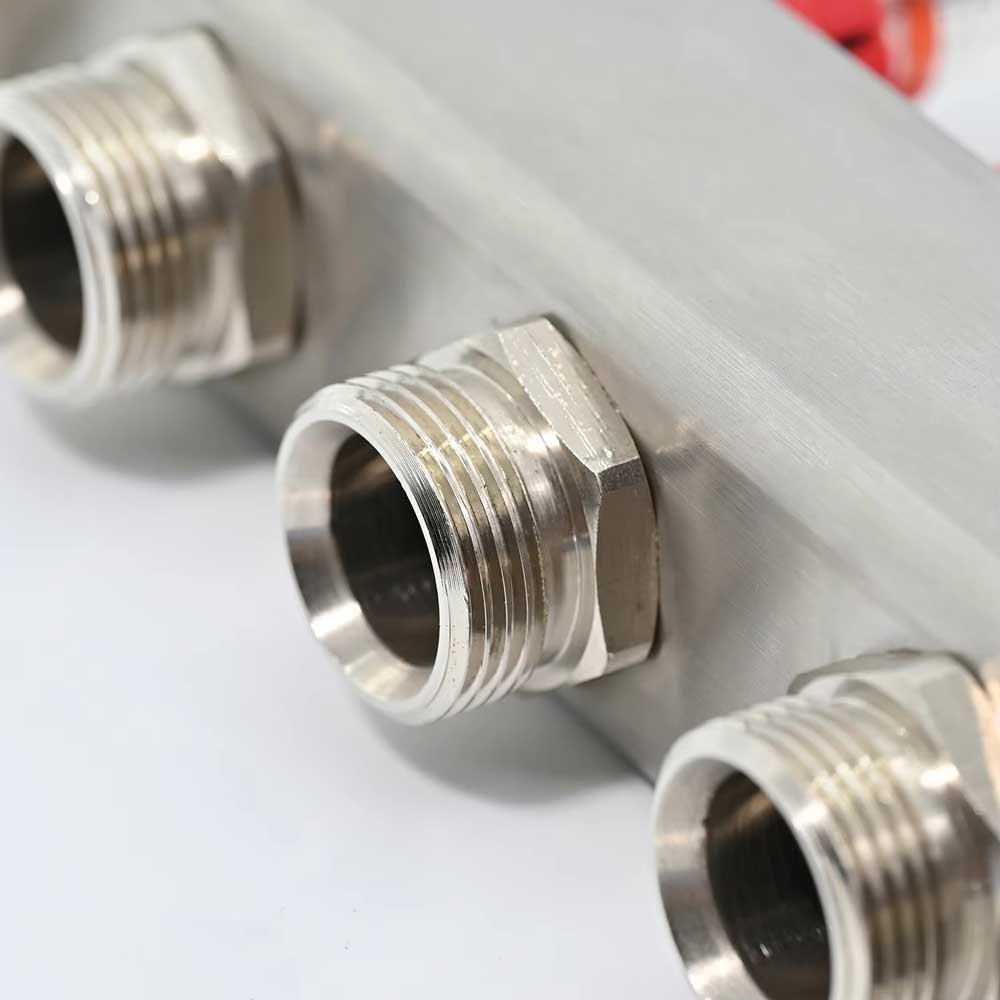

    *Outlets with connections 3/4″ euroconus.
    *Fluids: water or glycol solutions (max 30%)
    *Adaptable for use with plastic pipe or multilayer pipe thanks to universal adapters 3/4″ EK

    Features:
    Durable Construction: Made from AISI 304 stainless steel, known for its exceptional resistance to corrosion and high temperatures, ensuring a long-lasting and reliable heating solution.
    Advanced Flow Control: Equipped with a Flow Meter to monitor and adjust water flow accurately, optimizing the efficiency of your underfloor heating system.
    Thermostatic Control: Features a thermostatic screw with G1”*50MM threading for precise temperature regulation, enhancing comfort and energy efficiency.
    Easy Installation: Designed for straightforward installation with standard fittings, making it a perfect choice for both new installations and upgrades.
    Versatile Application: Ideal for residential and commercial underfloor heating systems, providing consistent and reliable warmth throughout your space.
