Stainless Steel S304 Underfloor Heating Manifold Kit with Flow Meter and Thermostatic Screw G1"*50MM
Transform your home's comfort with our premium Stainless Steel S304 Underfloor Heating Manifold Kit. Designed for both efficiency and durability, this top-of-the-line manifold kit ensures optimal performance for your underfloor heating system.
SPECIFICATIONS
Hign-concerned Chemical: None
Material: BRASS
Model Number: PT6102
Certification: CE
Main Tube: Stainless steel S304
Main Size: 1"
Centre distance between ports: 50 mm
100% leak tested: Yes
Working Pressure: 10bar
Working Temperature: From -10 ℃ To +95 ℃
Choice: yes
semi_Choice: yes

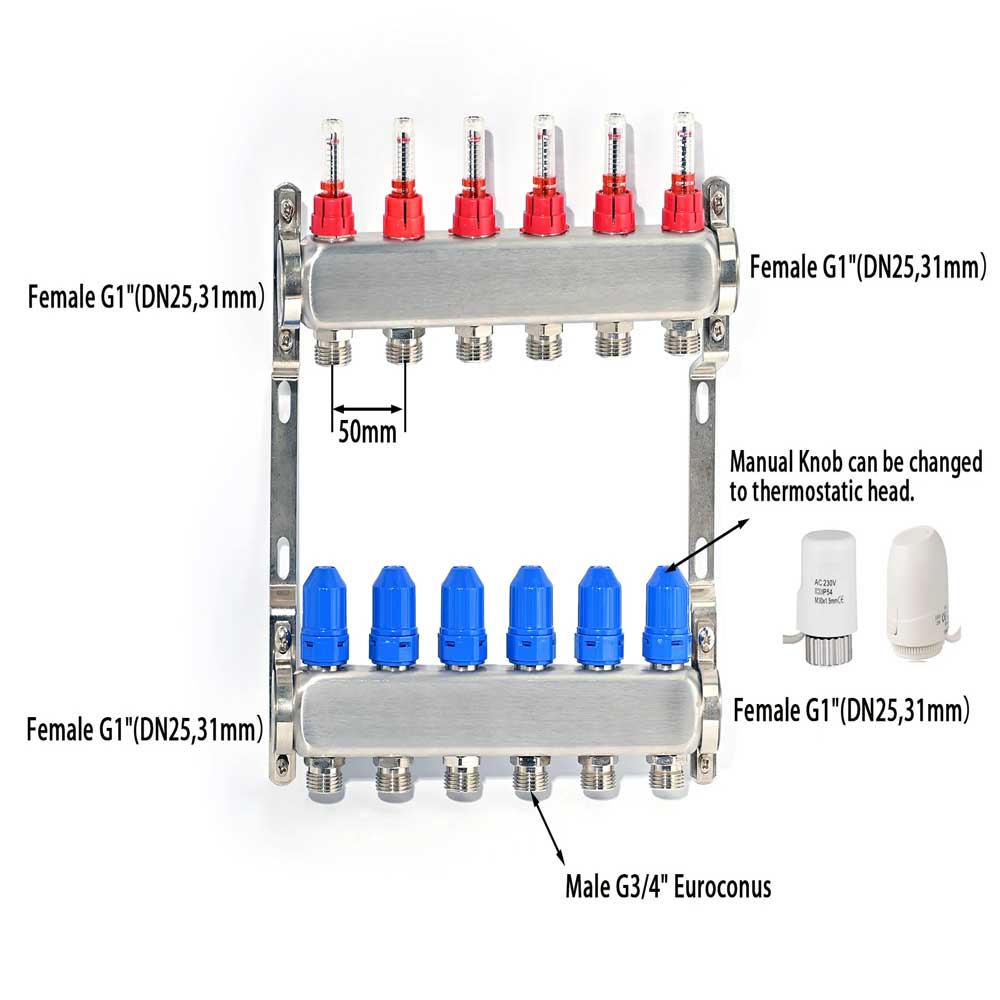

Manifold composed of:
-Delivery manifold complete with flow meters and nipples with 3/4” Eurocone
-Return manifold complete with shut-off valves for electrothermal command and nipples with 3/4" Eurocone
- Brackets
Description:
• G1 primary connection
• Outlets with connections 3/4″ euroconus.
• Outlet interaxis: 50mm
• Thermostatic screws suitable for use with thermostatic heads and actuators.
• Flowmeter scale: 0-5 L/min
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• Threads: ISO 228.
• Size: 1"x3/4" x 2~16way
Material:
Main tube:Stainless steel AISI304
Thermostatic screw body:Brass
Stem of thermostatic screw:stainless steel AISI304
Screw with double sealing o-ring
Flowneter:Brass+PA
Nipple(connections 3/4" euroconus) : Brass
Bracket:Steel
Application area:
*Radiant heating and cooling
*Suitable for large heating/cooling areas
*Residential and commercial
